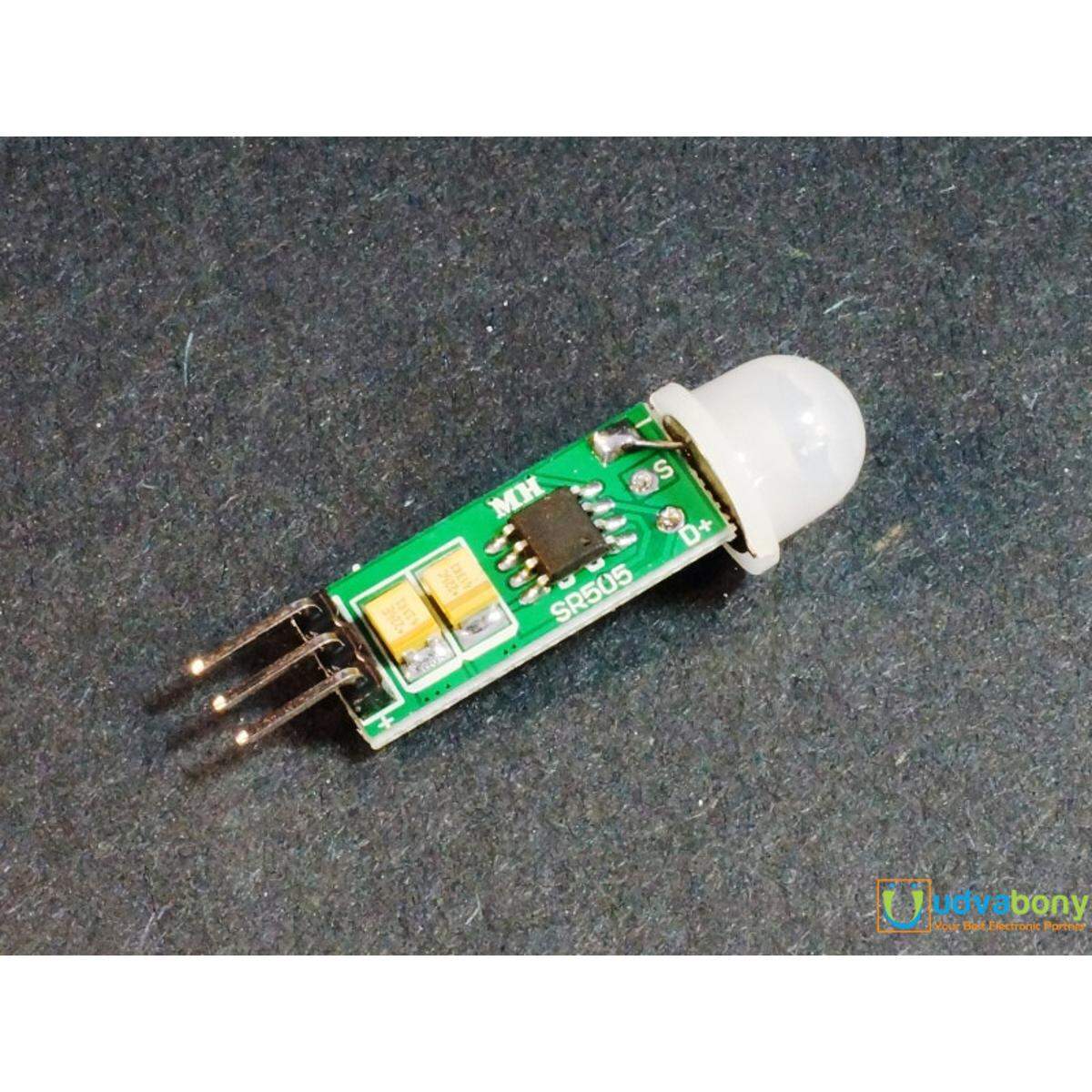

Description: HC-SR505 Mini PIR Motion Sensor Detector

Mini PIR Motion Sensor HC-SR505 HCSR505 HC-SR 505DC 4.5-20V IR Pyroelectric Infrared PIR Motion Detector Sensor Module With Lens Human Motion Body Movement Detector Intelligent Sensor For Arduino

The HC-SR505 Mini Infrared PIR Motion Sensor is a small body sensing module is based on infrared technology. Widely used in various auto-sensing of electrical equipment, especially battery-powered automatic control products.

HC-SR505is miniPIR(Passive Infra Red) motion sensor module, which as the name implies used for detecting the motion of a body in front of it. The device works based on infrared technology and it can automatic control by itself with high sensitivity and high reliability. Because of the minimum size and low-power operation mode, it widely used in battery-powered applications.

Pin configuration

HC-SR505is a three pin device as shown in figure and the function of each pin is stated below.

Specifications:

• • Operating voltage 4.5 - 20 V DC
• • Quiescent current: < 60 µA
• • Output voltage level: 3.3 V high/0 V low
• • Trigger: Reusable trigger
• • Delay time: 8 s (± 30%)
• • Blockade time: 2.5 s
• • Induction angle: < 100 degrees cone angle
• • Detection range: approx. 3.0 m
• • Operating temperature: -20 - +80°
• • Sensor lens diameter: 10 mm
• • Dimensions: approx. 23 x 10 mm

HC-SR505 Features:

• Low-power consumption
• Output level: High 3.3V / Low 0V
• Trigger: repeatable trigger (default)
• Automatic induction: to enter the sensing range of the output is high, people leave the sensor range automatically delay off high, output low. Ultra-small size.
• Repeatable trigger: the sensor output high, the delay period, if there is human activity in its sensing range, the output will remain high until people leave after the high variable delay Low (automatically extended sensor module detects the human body after every activity a delay period, and the last time an event is the starting point of the delay time).
• Wide operating voltage range: the default operating voltage DC4.5V-20V.
• Micropower: quiescent current <50 microamps, especially for battery-powered automatic control products.
• Output high signal: easy docking and all kinds of circuits.

HC-SR505 Alternatives

HC-SR01

HC-SR505 Overview

The module is basically used in applications where you want to detect the motion of a body which emits infrared radiations.HC-SR505is preferred to be used in battery operated systems since the device is specifically designed to be operated by consuming very less power. Because of its small size the module can be installed in applications where the system size is taken in to consideration.

How to use HC-SR505 Sensor

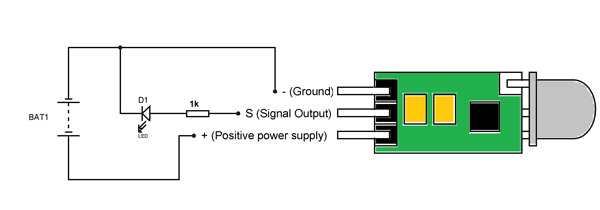

The deviceHC-SR505can be installed in any system easily all you need to do is, connect the power to the module and receive the response from it. Let us consider simple application circuit of the device as an example.

In circuit

• The device is powered from a DC power source and it can range from +5V to +20V and in the circuit we are using +5V power source.
• The device response or output is connected to a LED to visualize the device response.
• The 1KΩ resistor is for limiting the current output from the device.

Working: For instance consider the module is powered and the lens of device is facing a solid wall. Under such case the sensor does not detect any IR (Infra Red) radiation change from the wall and it will provide LOW at the output pin. So when the device is faced solid walls and unmoving things the output will be LOW and the LED will be OFF.

Now if a human or a dog passes through its detecting area opposite to its lens, the module will detect the change in the IR radiation (as the living body emits IR radiation) and as a response provides HIGH logic at the output pin. So when the device detects a living body or IR emitting things the output will be HIGH and the LED will get turned ON.

This way we can use the device to detect motion of living things in front of its lens. We can connect the signal output to any microcontroller or arduino to do many fun things.

Applications

• Motion alarm
• Automatic lighting system
• Theft protection
• Staircase lighting system
• Hobby projects
• Body induction lamps.
• Body sensors toys.
• Security Products.
• Industrial automation and control.
• Auto-sensing of electrical equipment.
• Battery-powered automatic control.

Package Include:

• 1 x Mini PIR Motion Sensor HC-SR505 HCSR505 HC-SR 505 Mini IR Precise Infrared PIR Motion Detector Sensor Module With Lens For Arduino Raspberry PI
