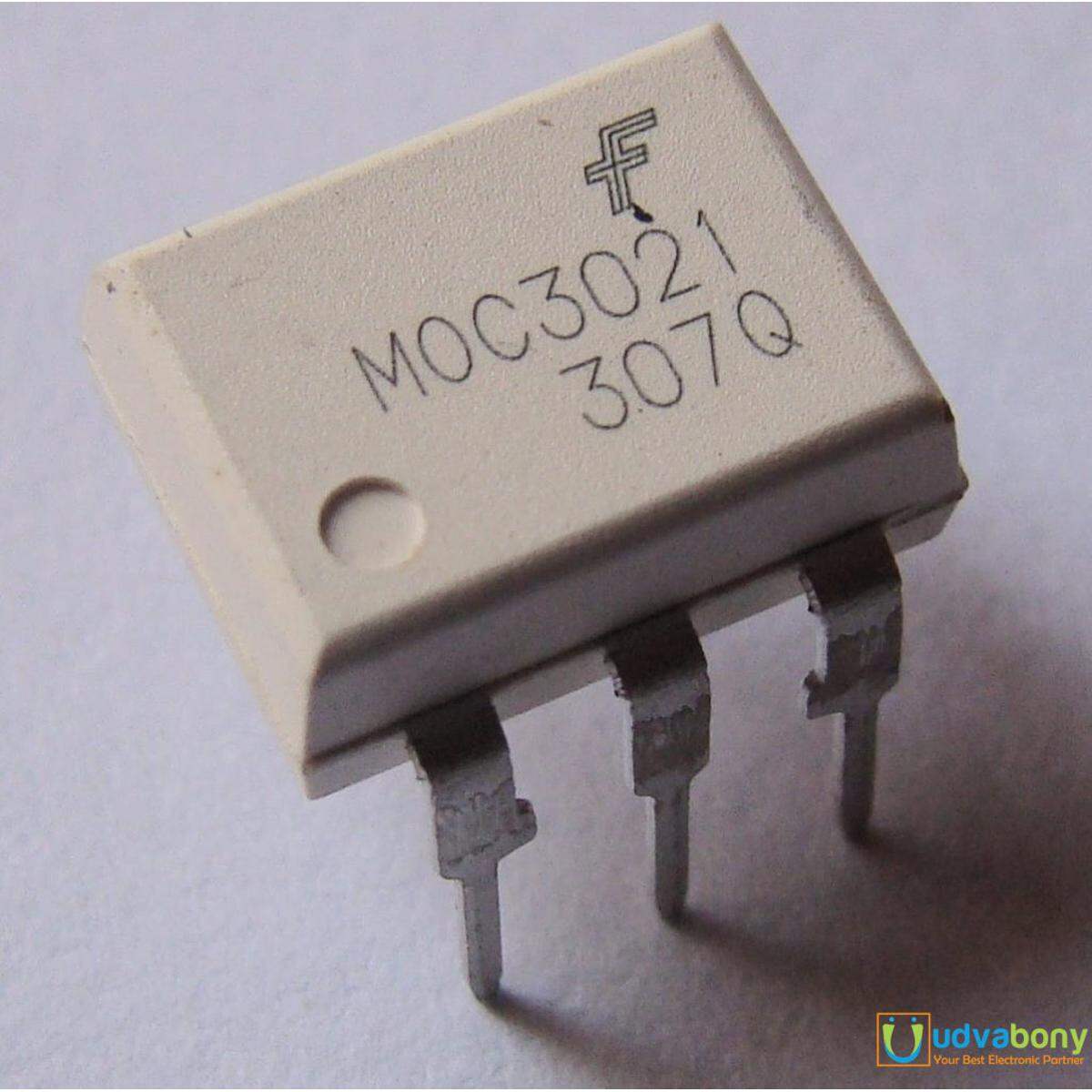

MOC3021 MOC-3021 3021 Optocoupler Random Phase TRIAC Driven Optoisolator IC DIP 6 Pin Optocoupler For Electrical Circuitry & Parts

Description: MOC3021 Optocoupler

MOC3021 MOC-3021 MOC 3021 Optocoupler Random Phase TRIAC Driven Optoisolator IC DIP 6 Pin Optocoupler For Electronics Parts

MOC3021 is Triac driven a zero-crossing optocoupler. Optocoupler is made of light-emitting and light-sensing devices with no internal connection except light bean. The optoisolators allow two circuits to exchange signals without making any electrical connection. This device works on the principle that light is proportional to signal and the signal is transferred to a phototransistor.

Specification

• Reverse voltage: 3V
• Forward voltage: 1.15 to 1.5V
• Continuous forward current: 60mA
• Reverse leakage current: 0.05 to 100µA
• Total power dissipation: 300mW
• Operating temperature: -40 to 85℃

MOC3021 Features

• Opto-isolator with Zero-Crossing Triac Driver
• Input LED Diode Forward Voltage: 1.15V
• LED Forward Latch Current: 15mA
• TRIAC output terminal voltage: 400V (max)
• TRIAC peak output current: 1A
• Available as 6-pin PDIP with and without M-suffix
