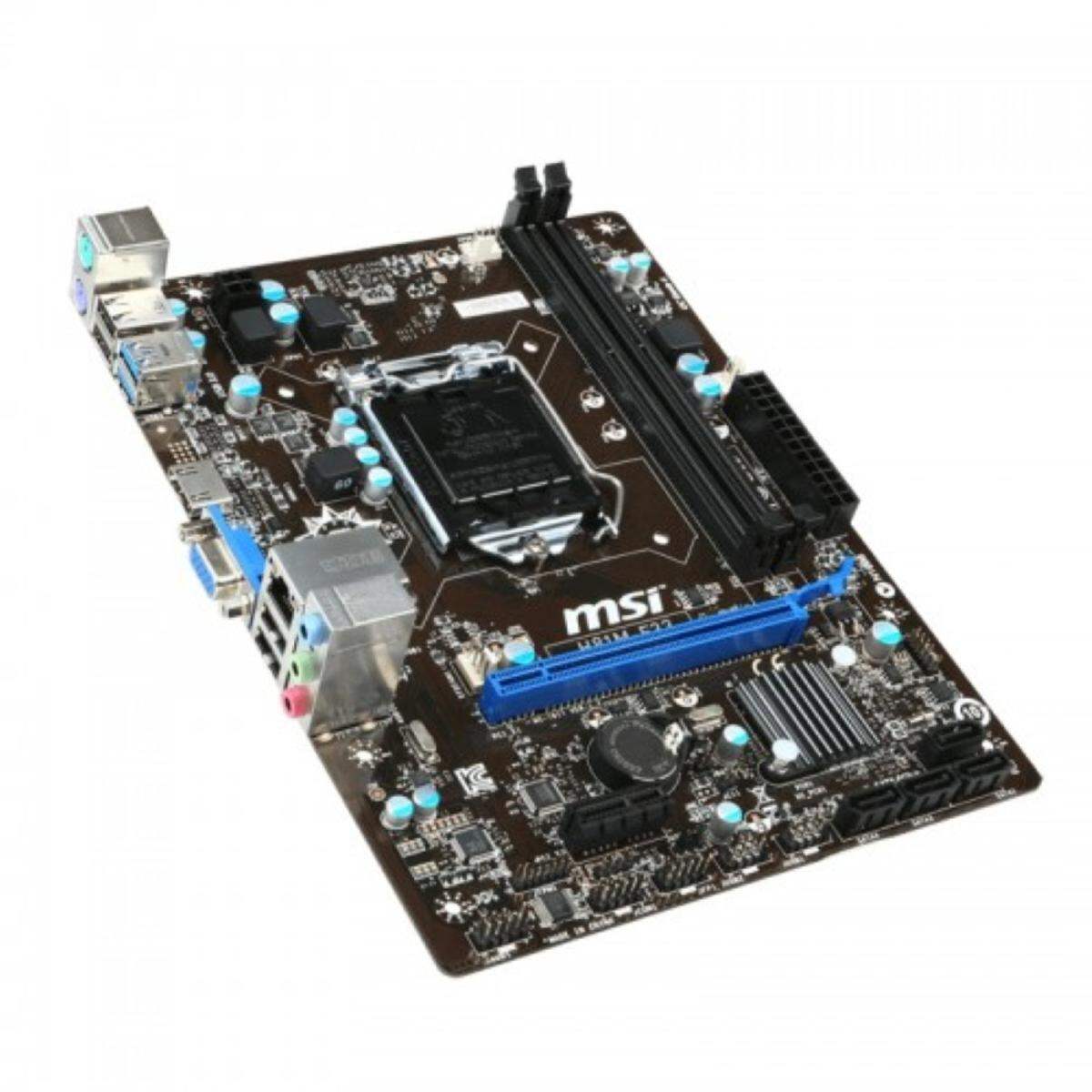

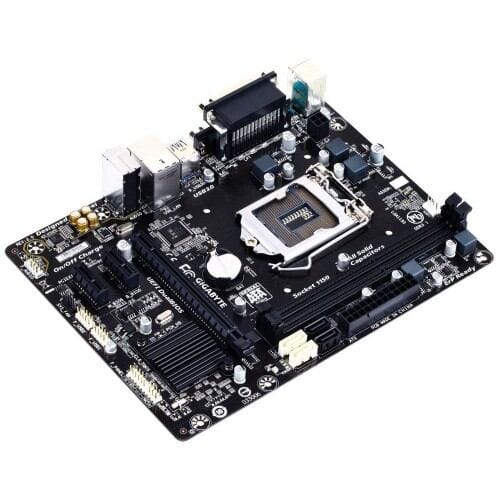

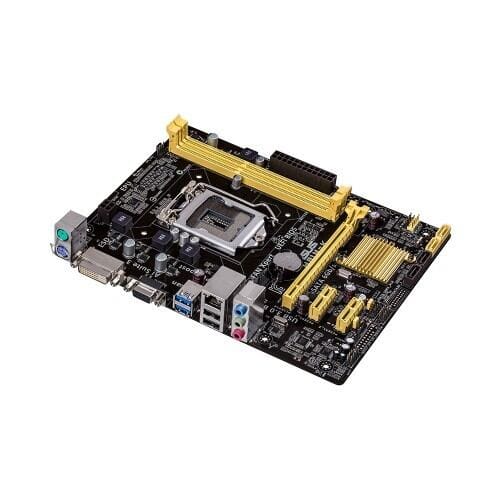

Mother Board 81 G-I-G-A-B-Y-T-E M-S-I/A-S-U-S ALL 4GEN SUPPORT korean product best quaality 1YEAR WARRANTY

Basic Information

Supported CPU

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package

L3 cache varies with CPU

Chipset

Intel® H81 Express

BIOS

2 x 64 Mbit flash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

Micro ATX Form Factor; 22.6cm x 17cm

Expansion Slots

PCI

1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots

(The PCI Express slots conform to PCI Express 2.0 standard.)

Memory

Type

Dual channel DDR3 memory architecture

Slots

2 x 1.5V DIMM

Supported Memory

Support for DDR3 1600/1333 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory

16 GB

Graphics

Graphics

1 x D-Sub port, supporting a maximum resolution of 1920x1200

Max Shared Memory

1 GB

Connector & Ports

D-Sub (s)

1 x D-Sub

USB (s)

Chipset:

Up to 2 USB 3.0/2.0 ports on the back panel

Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

LAN Port (s)

Realtek® GbE LAN chip (10/100/1000 Mbit)

Supported Storage

Chipset:

2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices

2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices

Audio

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

2 x SATA 6Gb/s connectors

2 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

2 x USB 2.0/1.1 headers

1 x Clear CMOS jumper
