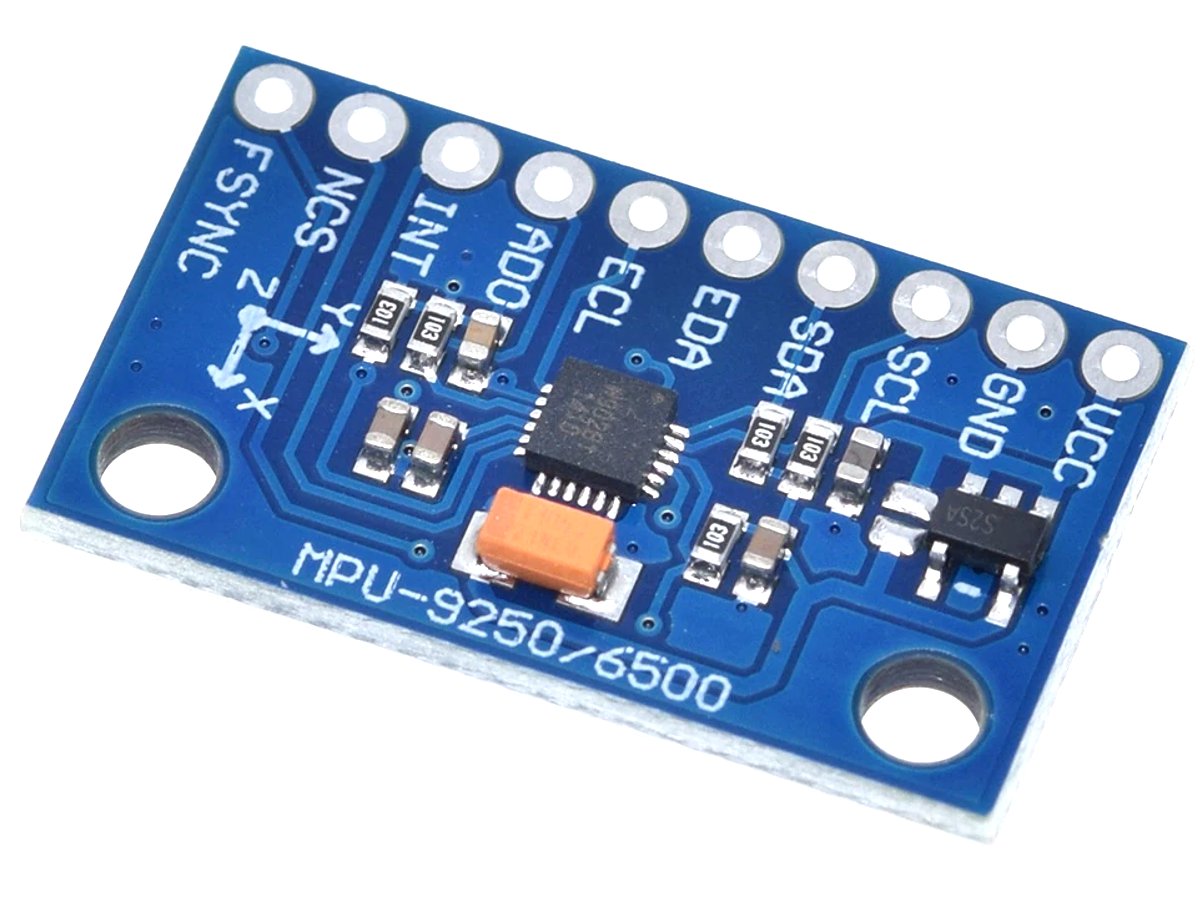

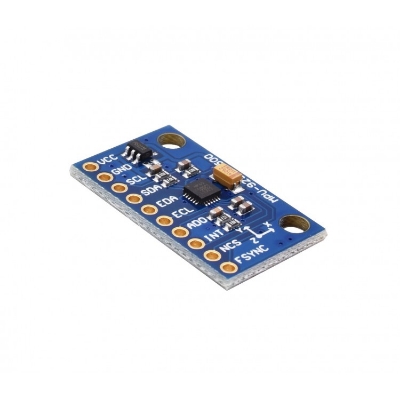

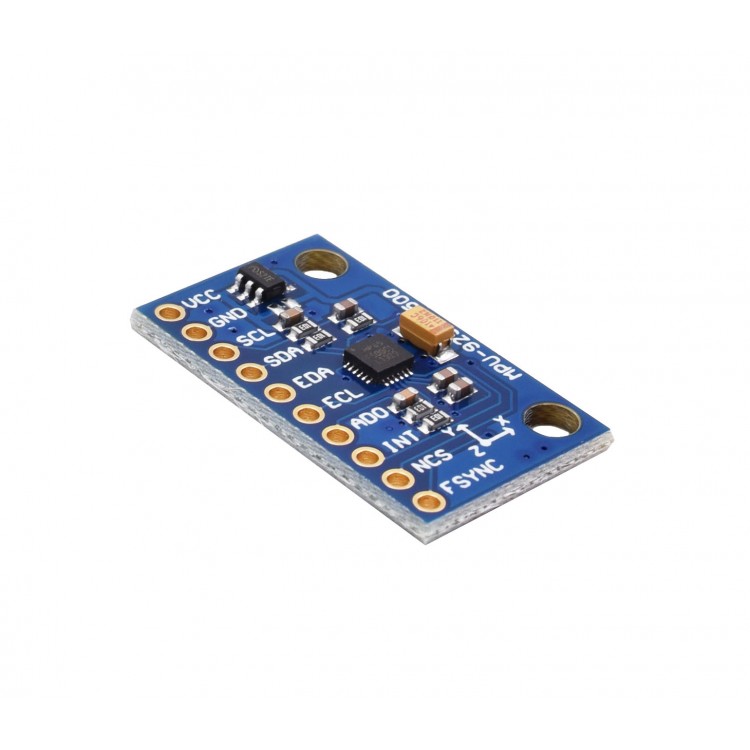

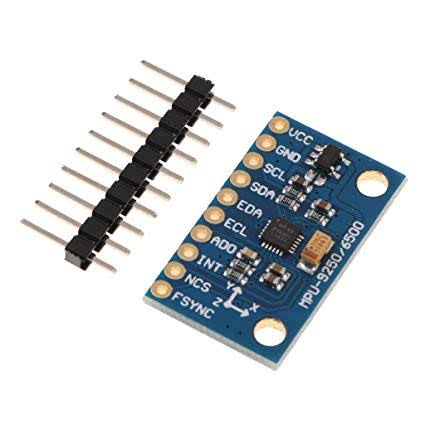

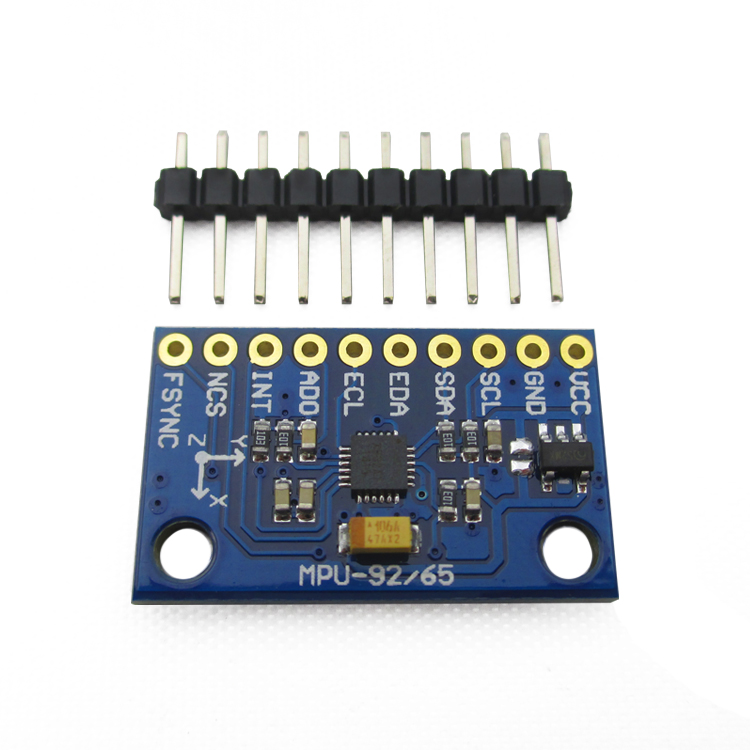

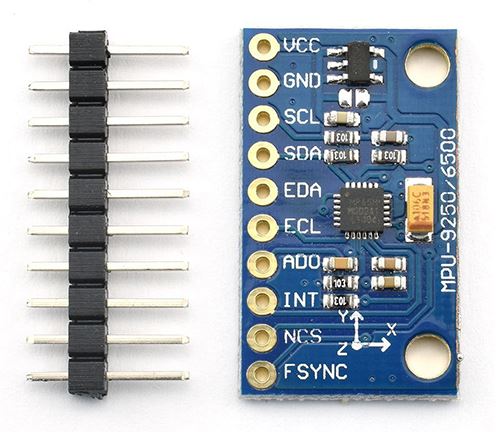

MPU 6500 6DOF Accelerometer and Gyroscope Module (6050 Upgraded)(Blue)

Product Details

The MPU-6500 is a high-performance, low-power, 6-axis MotionTracking device that combines a 3-axis gyroscope and a 3-axis accelerometer. It is designed for various applications, including smartphones, tablets, wearable sensors, and other consumer electronics.

Specifications

• Gyroscope Full Scale Range: ±250, ±500, ±1000, ±2000 dps
• Gyroscope Sensitivity: 131, 65.5, 32.8, 16.4 LSB/°/sec
• Gyroscope Rate Noise: 0.01 dps/√Hz
• Accelerometer Full Scale Range: ±2g, ±4g, ±8g, ±16g
• Accelerometer Sensitivity: 16384, 8192, 4096, 2048 LSB/g
• Digital Output: I²C or SPI
• Operating Voltage: 1.71V – 3.6V
• Power Consumption: 6.1 mW in full operating mode
• Additional Features:
  • On-chip Digital Motion Processor™ (DMP) for complex MotionFusion
  • Digital-output temperature sensor
  • Programmable interrupt supports gesture recognition, panning, zooming, scrolling, tap detection, and shake detection
  • Embedded algorithms for run-time bias and compass calibration
  • Supports Android, Linux, and Windows platforms

The MPU-6500 is known for its high precision and energy-efficient design, making it ideal for applications requiring accurate motion tracking and low power consumption
