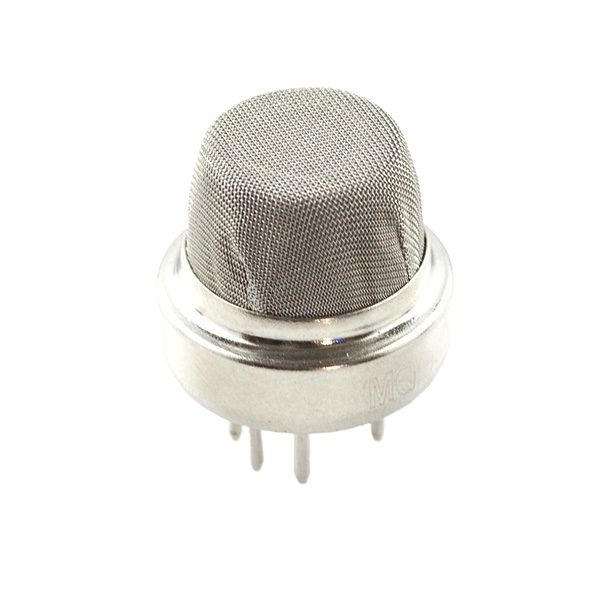

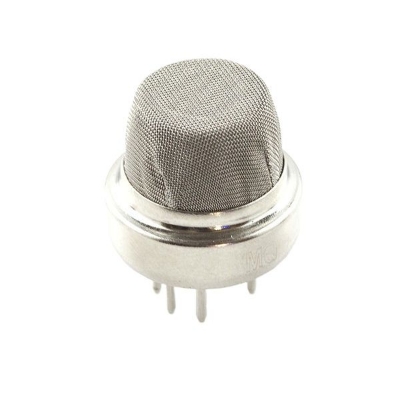

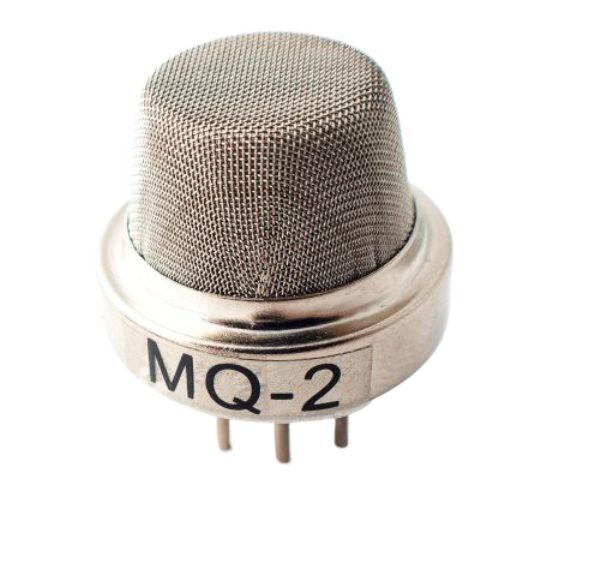

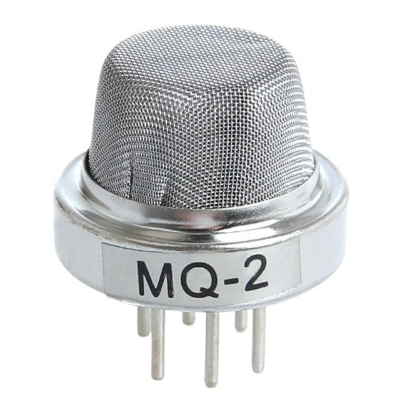

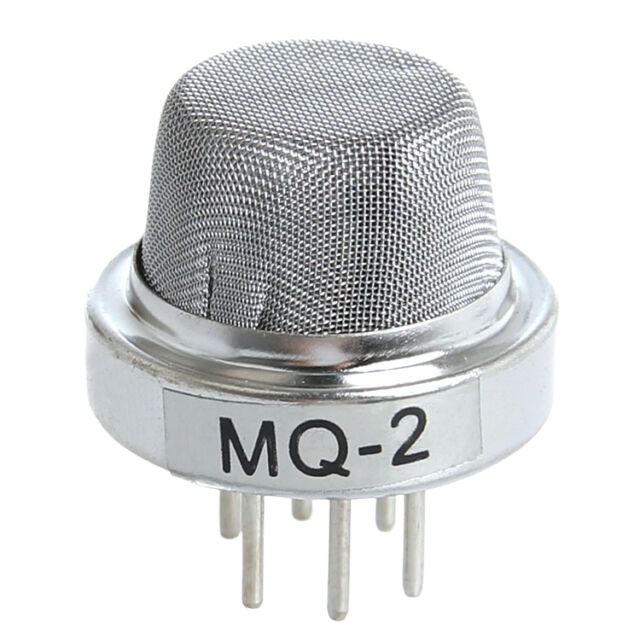

Description: MQ-2 Gas And Smoke Sensor

MQ-2 MQ2 Smoke LPG Butane Hydrogen Gas Sensor Detector MQ2 Smoke LPG MQ-2 Butane Hydrogen Propane Combustible Gas Detection Sensor For Arduino Electronics Project DIY

Sensitive material of MQ-2 gas sensor is SnO2, which with lower conductivity in clean air. When the target combustible gas exist. The sensor’s conductivity is more higher along with the gas concentration rising. Please use simple electro circuit, Convert change of conductivity to correspond output signal of gas concentration. MQ-2 gas sensor has high sensitivity to LPG, Propane and Hydrogen, also could be used to Methane and other combustible steam, it is with low cost and suitable for different application.

MQ2 Gas And Smoke Sensor for Combustible Gas:

• Sensitive material of MQ-2 gas sensor is SnO2, which with lower conductivity in clean air. When the target combustible gas exist, The sensors conductivity is more higher along with the gas concentration rising. Please use simple electro circuit, Convert change of conductivity to correspond output signal of gas concentration.
• MQ-2 gas sensor has high sensitivity to LPG, Propane and Hydrogen, also could be used to Methane and other combustible steam, it is with low cost and suitable for different application.

Features:

• Good sensitivity to Combustible gas in wide range
• High sensitivity to LPG, Propane and Hydrogen
• Long life and low cost
• Simple drive circuit

Specifications:

• Good sensitivity to Combustible gas in wide range
• High sensitivity to LPG, Propane and Hydrogen
• Long life and low cost
• Simple drive circuit
• Domestic gas leakage detector
• Industrial Combustible gas detector
• Portable gas detector
• Sensor Type: Semiconductor
• Standard Encapsulation: Bakelite (Black Bakelite)
• Detection Gas: Combustible gas and smoke
• Concentration: 300-10000ppm ( Combustible gas)
• Loop Voltage: ≤24V DC
• Heater Voltage: 5.0V±0.2V AC or DC
• Load Resistance: Adjustable
• Heater Resistance: 31Ω±3Ω（Room Temperature）
• Heater consumption: ≤900mW
• Sensing Resistance: 2KΩ-20KΩ (in 2000ppm C3H8 )
• Sensitivity: Rs(in air)/Rs(1000ppm isobutane)≥5
• Temperature Humidity: 20℃±2℃；65%±5%RH

Applications:

• Domestic gas leakage detector
• Industrial Combustible gas detector
• Portable gas detector

• Good sensitivity to Combustible gas in wide range
• High sensitivity to LPG, Propane and Hydrogen
• Long life and low cost
• Simple drive circuit
• Domestic gas leakage detector
• Industrial Combustible gas detector
• Portable gas detector
• Sensor Type: Semiconductor
• Standard Encapsulation: Bakelite (Black Bakelite)
• Detection Gas: Combustible gas and smoke
• Concentration: 300-10000ppm ( Combustible gas)
• Loop Voltage: ≤24V DC
• Heater Voltage: 5.0V±0.2V AC or DC
• Load Resistance: Adjustable
• Heater Resistance: 31Ω±3Ω（Room Temperature）
• Heater consumption: ≤900mW
• Sensing Resistance: 2KΩ-20KΩ (in 2000ppm C3H8 )
• Sensitivity: Rs(in air)/Rs(1000ppm isobutane)≥5
• Temperature Humidity: 20℃±2℃；65%±5%RH
