Features:

• Low Cost
• High Sensitivity to LPG, iso-butane, Propane
• Flat Response
• Stable and Long Life
• Both Digital and Analog Outputs
• On-board LED Indicator
• Application:Domestic gas leakage detector,Industrial Combustible gas detector,Portable gas detector,Gas leak alarm, Gas detector

Specification:

• Color: Blue + Silver
• Material: PCB board
• High quality double panel design, with power and TTL signal output indicator.
• With DO switch signal (TTL) output and AO analog signal output.
• TTL output effective signal for low level (when output lower than usually the signal light, can be directly meet SCM or relay module)
• Analog output voltage: 0~5V, the higher concentration, the higher voltage.
• High sensitivity for the propane and butane, LPG, LNG detection.
• There are four screw holes for positioning.
• Product size: 32mm (L) x 20mm (W) x 22mm (H)
• Long service life and reliable stability, fast response and recovery characteristics.
• Working voltage: 5V.
• Suitable for home / industry LPG, propane, butane, LNG detection using.
• Before use, please heat the board for about 20 seconds.

Pin:

• VCC: positive power supply (5V-150ma)
• GND: power supply is negative
• DO: TTL switching signal output
• AO: analog signal output

Applications:

• Domestic gas leakage detector
• Industrial Combustible gas detector
• Portable gas detector

Package Include:

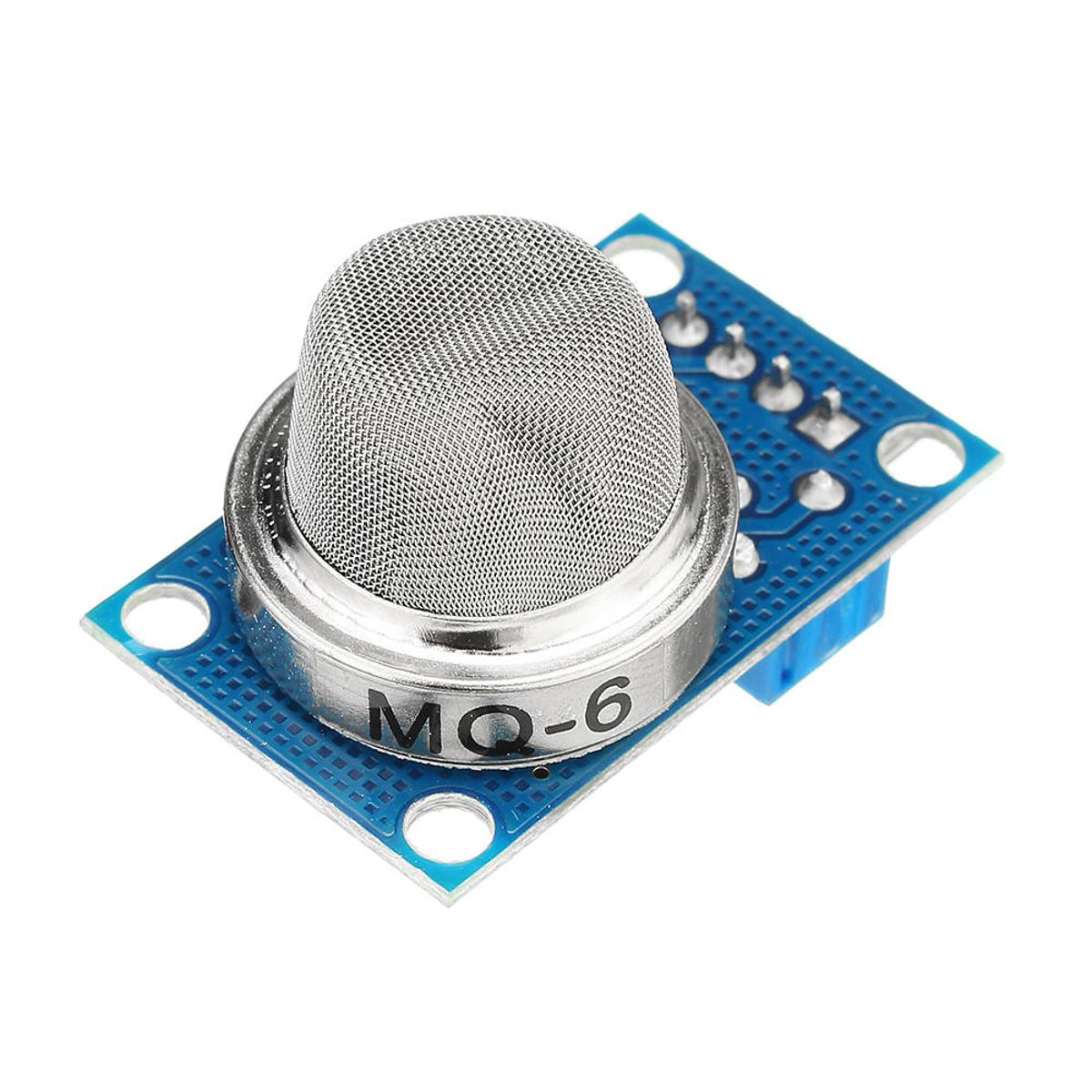

• 1 x LPG Gas Sensor Module MQ-6 MQ6 LPG Gas Sensor Module Liquefied Propane Iso-Butane Butane Combustible Gas Detection Sensor MQ 6
