MQ-9 MQ9 Gas Sensor Module For Arduino DIY Electrical Circuitry & Parts

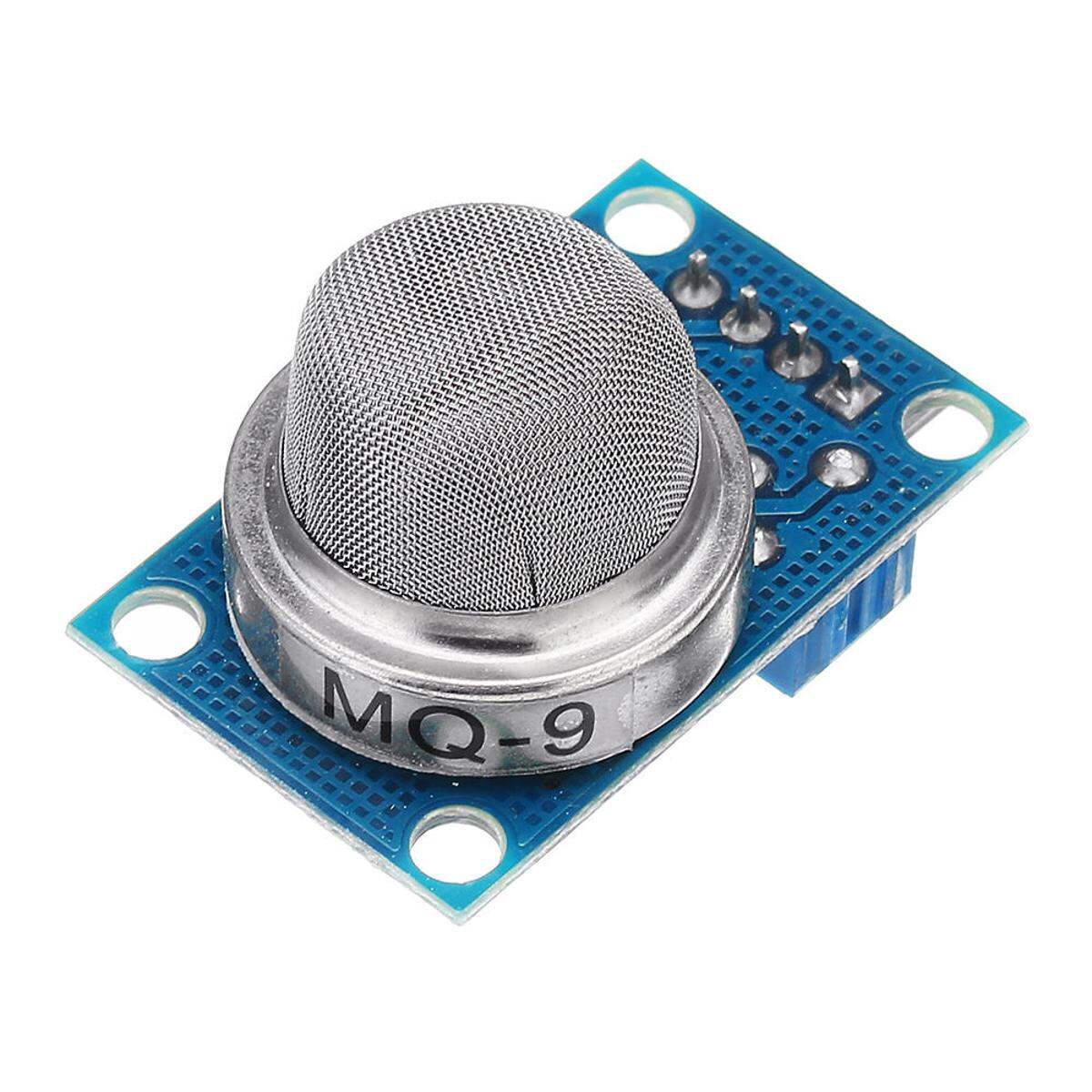

Description: MQ-9 CO Combustible Gas Sensor Module

This sensor module is made using MQ9, a low cost semiconductor sensor which can detect the presence of carbon monoxide gas at concentrations from 10 to 1000 ppm and combustible gases at concentrations from 100 to 10,000 ppm. The sensitive material used for this sensor is SnO2, whose conductivity is lower in clean air. It’s conductivity increases as the concentration of sensing gases increases. This module provides both digital and analog outputs. MQ9 CO Combustible gas sensor module can be easily interfaced with Microcontrollers,Arduino Boards,Raspberry pi etc using an Analog to Digital Converter (ADC).

Features:

Good sensitivity to CO / Combustible GasHigh sensitivity to Methane, Propane and COLong lifeLow costOn-board LED indicatorBoth digital and analog outputs

Technical Data:

Operating Voltage : 5V ±0.1Operating Temperature :-10°C ~ 50°CCO Detection Range : 10 ~ 1000 ppmCombustible Gas Detection Range : 100 ~ 10,000 ppm

Pin Out:

VCC – Input Power SupplyGND – Supply GroundDO – Digital OutputAO – Analog Output

Applications:

Gas leak monitoring device suitable for home or factory, suitable for carbon monoxide, combustible gases and other monitoring devices, can be tested to carbon monoxide, the combustible gases 10 to 1000ppm CO, 100 to 10000ppm range.

Datasheet:

MQ9-CO-Combustible-Gas-Sensor

Package Include:

1 x MQ-9 CO Combustible Gas Sensor Module
