NRF24L01 NRF-24L01 Adapters Shields For Arduino Electrical Circuitry & Parts

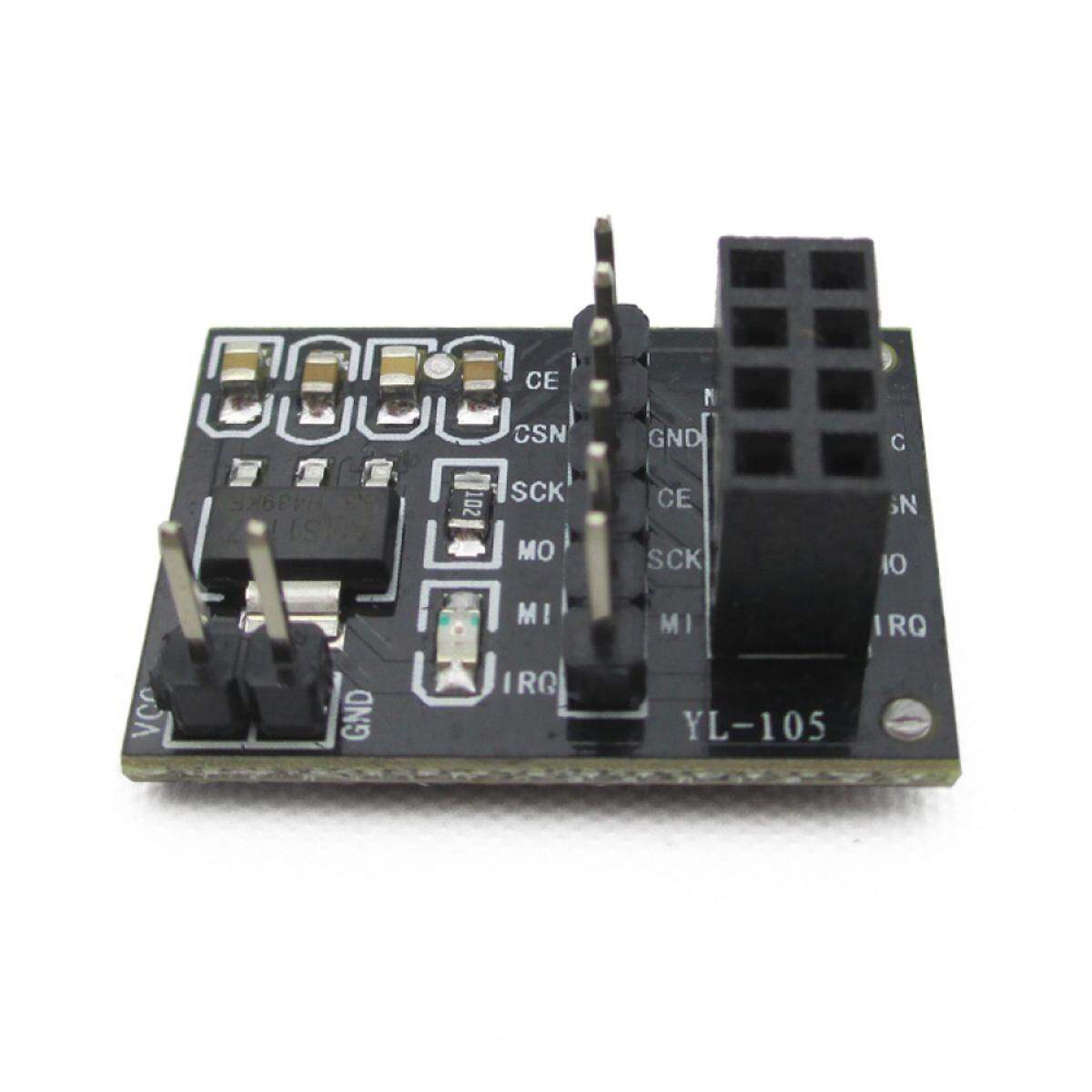

Description: NRF24L01 Wireless Adapter Module 3.3V 8-Pin Socket Panel Board Wireless Transceiver Shield 24L01 Use Smart Car Robot Dye

This 3.3V VCC Adapter Board for NRF24L01 Wireless Adapter Module enables you to use NRF24l01 type transceivers on 5V systems like Arduino.

It regulates the 3.3V input to 1.9~3.6V DC and incorporates bypass capacitors for reliable operation. The NRF24L01 utilizes Enhanced ShockBurst (ESB) protocol to support two-way data packet communication with packet buffering, packet acknowledgement and automatic re-transmission of lost packets.

Features:

• It can be used with NRF24L01 wireless module
• Add core nRF24L01+ Breakout Adapter with onboard 3.3V Regulator
• Onboard 3.3V voltage regulator accepts your Arduino +5V supply and provides 3.3V for the attached nRF24L01+ module
• Allows for easy connection to nRF24L01+ modules
• Small power on SMD LED indicator
• On-Board Voltage Regulator:
  • Voltage Regulator Input Voltage (connected to VCC): 4.8V to 12V
  • Voltage Regulator Input Voltage Max: 15V (we recommend staying below 12V)

Specification:

• Input Voltage: 5V DC
• Output Voltage: 1.9~3.6 DC
• Current: 12.3 mA
• It’s for 8 Pin NRF24L01+ Module
• A simple socket board which is for NRF24L01 wireless module
• On-board AMS1117-3.3 chip
• It can be used with NRF24L01 wireless module
• Dimension: 26 x 19 x 12mm

Package Include:

• 1 x NRF24L01 Wireless Adapter Module 3.3V 8-Pin Socket Panel Board Wireless Transceiver Shield 24L01 Use Smart Car Robot Dye
