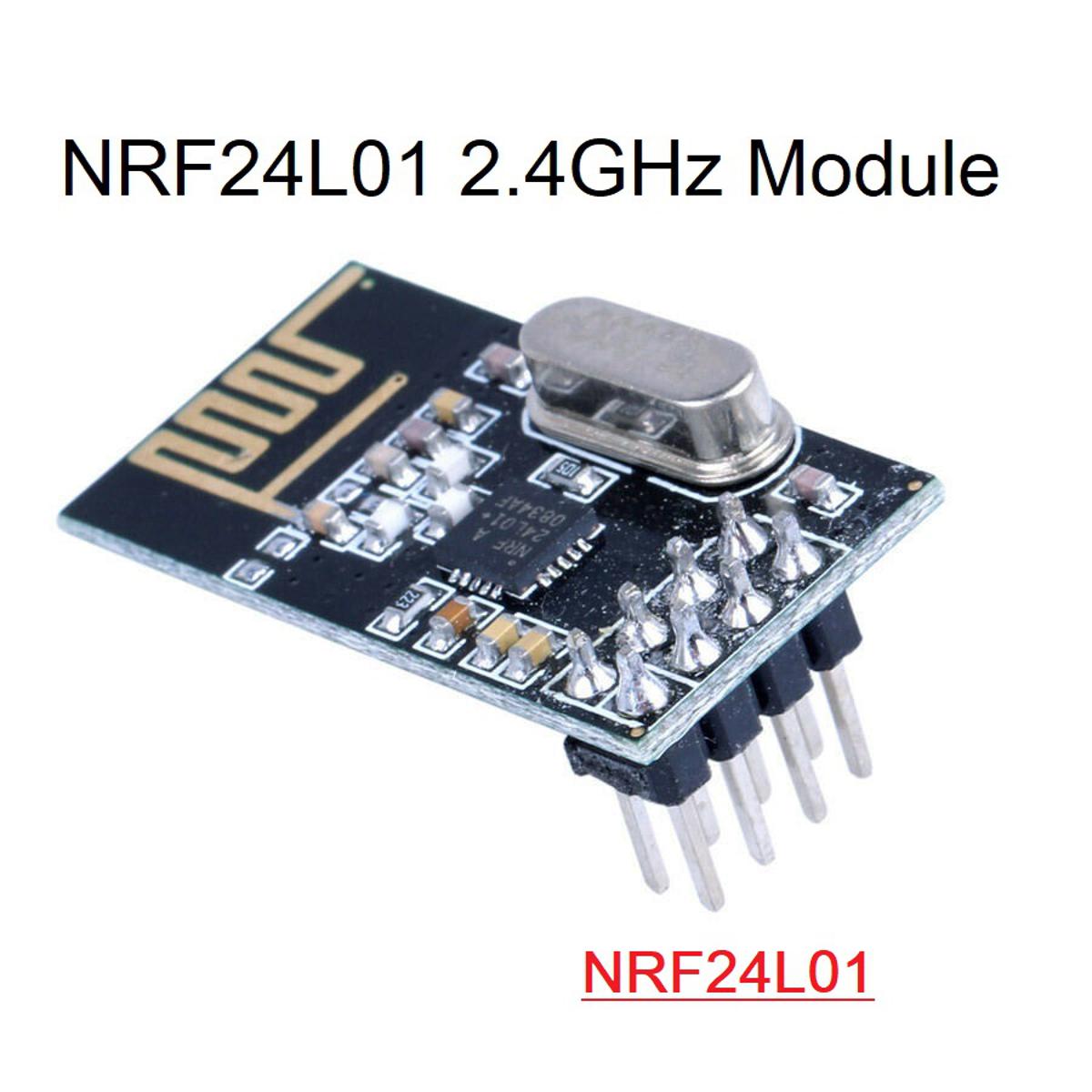

This module uses the nRF24L01 integrated circuit, which is a low costhighly integrated RF transceiver, which operates in the standard ISM band and is capable of data rates up to 2 Mbps. This module has 5V tolerant inputs, making it easy to interface the module with the most popular microcontroller boards, like Arduino.

This module is ideal for wireless peripherals, wireless remote controls, home and commercial automation, active RFID, VOIP headsets and wireless toys.

• Worldwide 2.4GHz ISM band operation
• Up to 2Mbps on air data rate
• SPI interface
• Ultra low power operation
• 11.3mA TX at 0dBm output power
• 12.3mA RX at 2Mbps air data rate
• 900nA in power down
• 22μA in standby-I
• On chip voltage regulator
• 1.9 to 3.6V supply range
• Automatic packet handling
• Auto packet transaction handling
• 5V tolerant inputs
