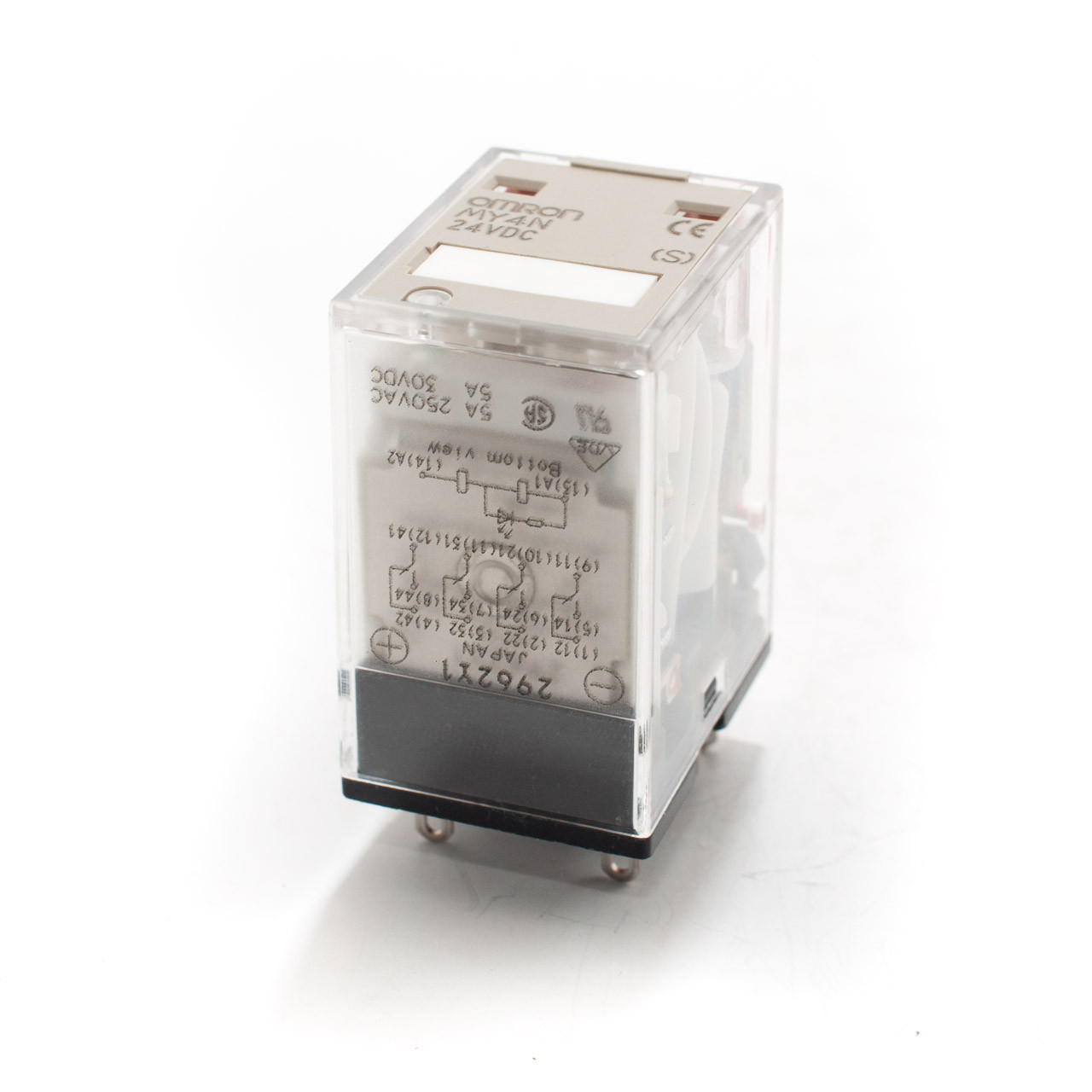

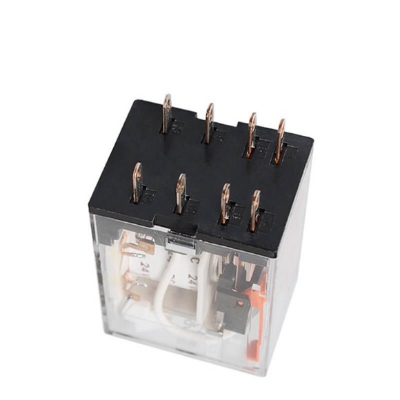

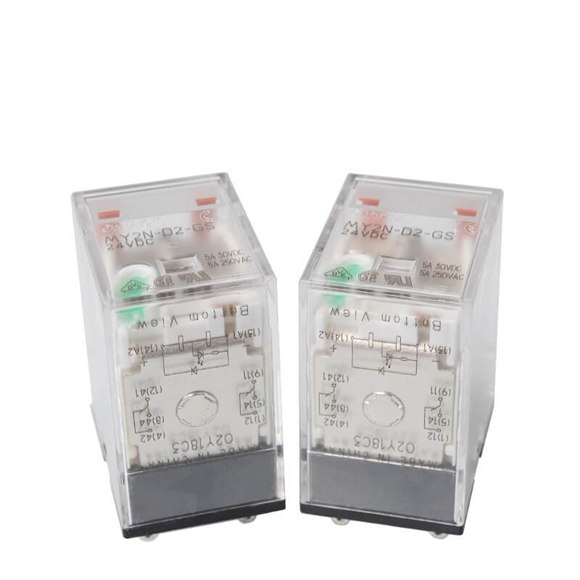

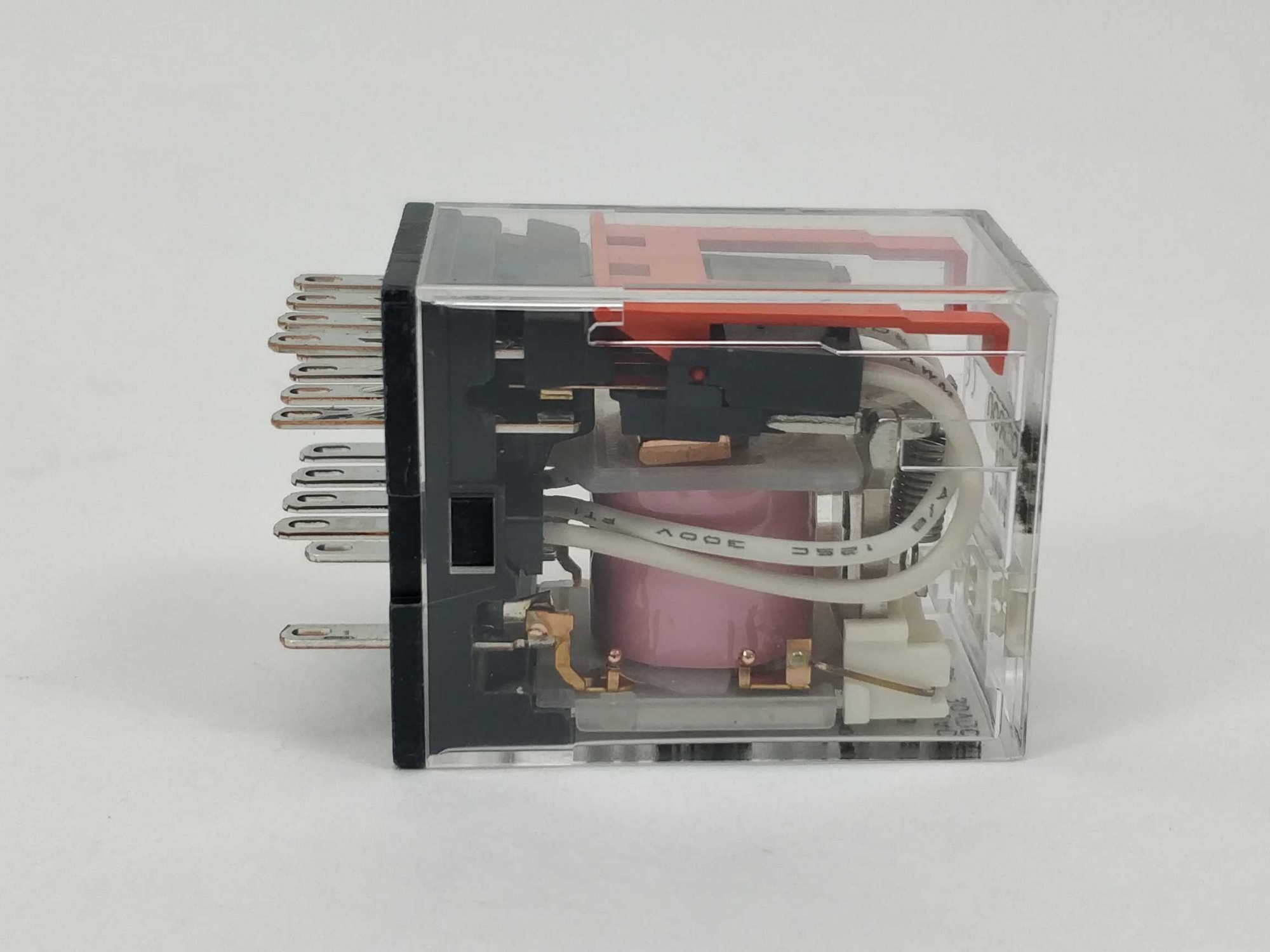

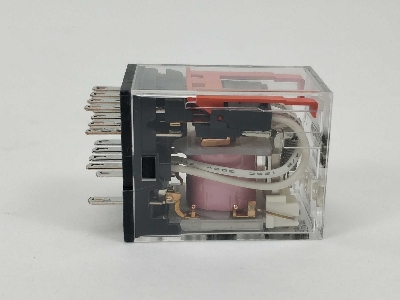

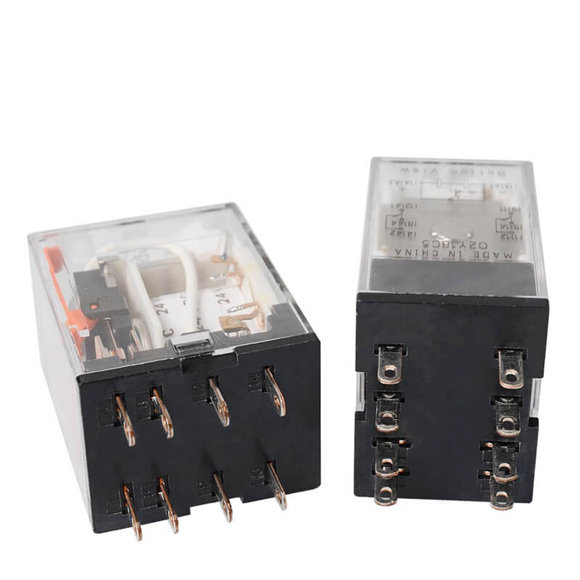

Omron MY4N 4-Pole Miniature Power Relay with Plug-in Terminals and Operation Indicator(White)

Product Description

The Omron MY4N relay is a versatile and reliable miniature power relay designed for sequence control and power-switching applications. This 4-pole, single-contact relay features plug-in terminals and an operation indicator, making it easy to install and monitor. The MY4N relay is suitable for a wide range of industrial and commercial applications, including control panels, automation systems, and power distribution units. With its robust construction and high-performance capabilities, the MY4N relay ensures long-lasting and efficient operation.

Specifications

• Model: MY4N
• Contact Form: 4PDT (4-pole double throw)
• Contact Method: Single
• Contact Material: Au clad + Ag alloy
• Contact Rated Load:
  • 220 VAC 3 A (Resistive load)
  • 220 VAC 0.8 A (Inductive load, cosφ = 0.4)
  • 24 VDC 3 A (Resistive load)
  • 24 VDC 1.5 A (Inductive load, L/R = 7 ms)
• Max. Contact Voltage: 250 VAC, 125 VDC
• Max. Contact Current: 3 A (AC/DC)
• Maximum Switching Power:
  • 660 VA (Resistive load)
  • 176 VA (Inductive load, cosφ = 0.4)
  • 72 W (Resistive load)
  • 36 W (Inductive load, L/R = 7 ms)
• Coil Ratings:
  • Rated Voltage: 24 VDC
  • Rated Current: 36.3 mA
  • Coil Resistance: 662 Ω
  • Operate Voltage (Set Voltage): 80% max.
  • Release Voltage (Reset Voltage): 10% min.
  • Maximum Voltage: 110% (at 23°C)
  • Power Consumption: Approx. 0.9 W
• Performance:
  • Contact Resistance: 50 mΩ max. (Voltage drop method with 5 VDC 1 A)
  • Operating Time: 20 ms max. (With rated operating power applied, not including contact bounce)
  • Reset Time: 20 ms max. (With rated operating power applied, not including contact bounce)
  • Maximum Operating Frequency:
    • Mechanical: 18,000 times/hour
    • Rated Load: 1,800 times/hour
  • Insulation Resistance: 100 MΩ min. (at 500 VDC)
  • Dielectric Strength:
    • Between coil and contacts: 2,000 VAC 50/60 Hz 1 min
    • Between contacts of different polarity: 2,000 VAC 50/60 Hz 1 min
    • Between contacts of same polarity: 1,000 VAC 50/60 Hz 1 min
  • Vibration Resistance (Destruction): 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude)
  • Vibration Resistance (Malfunction): 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude)
  • Shock Resistance (Destruction): 1,000 m/s²
  • Shock Resistance (Malfunction): 200 m/s²
  • Endurance:
    • Mechanical: 100 million operations min. (switching frequency 18,000 operations/h)
    • Electrical: 200,000 operations min. (23°C, Rated load, switching frequency 1,800 operations/h)
  • Failure Rate: 1 VDC 1 mA (failure level: Preference value, Switching frequency: 120 operations per minute)
  • Ambient Temperature (Operating): -55 to 60°C (with no freezing or condensation)
  • Ambient Humidity (Operating): 5 to 85%
  • Weight: Approx. 35 g
• Mounting Method: Socket
• Applicable Sockets: PYF14S, PYF14T, PYF-14-PU, PYF-14-PU-L, PYFZ-14, PYFZ-14-E, PY14, PY14-Y1, PY14QN, PY14QN2, PY14QN-Y1, PY14QN2-Y1, PY14-02
•
