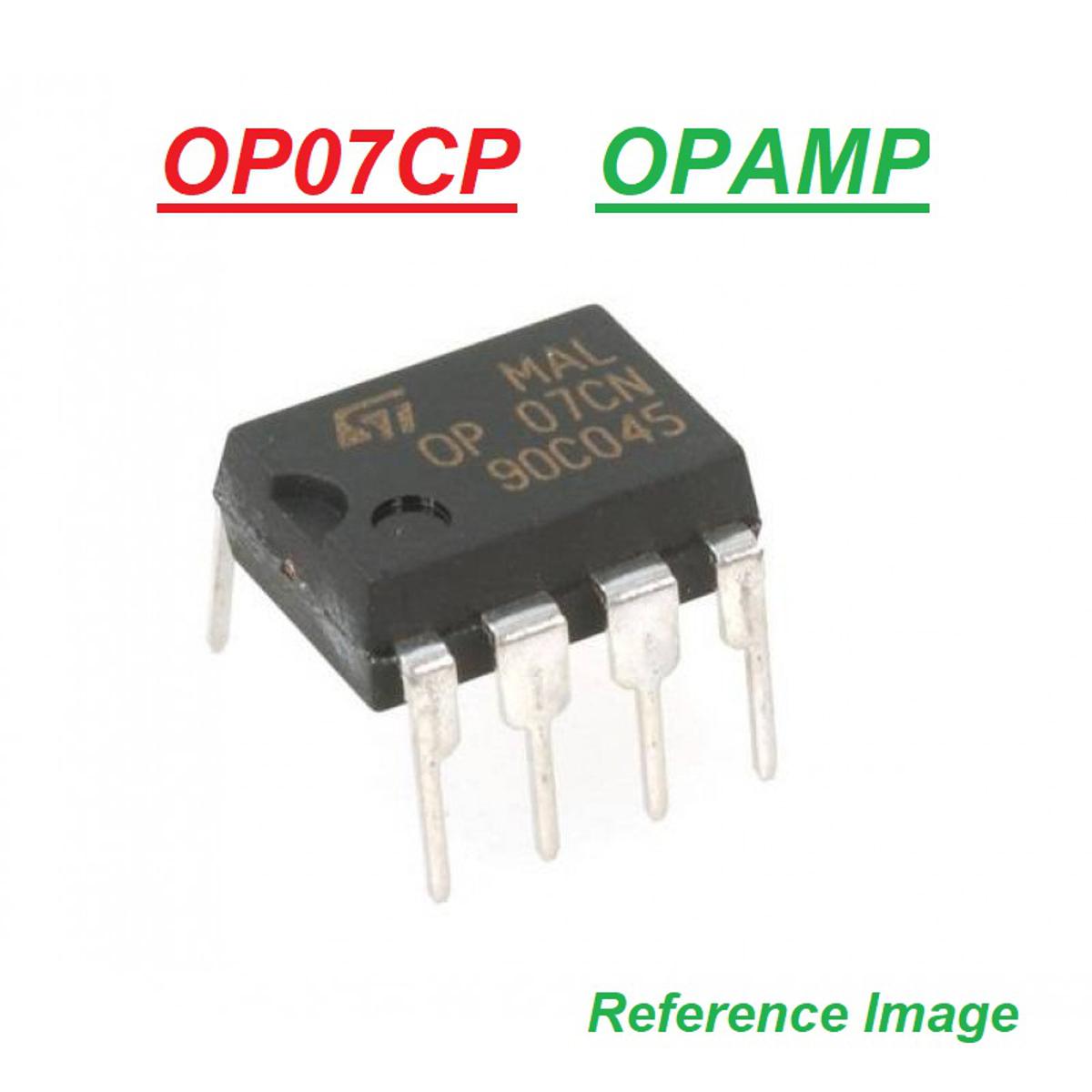

Description: OP07CP OPAMP

These devices represent a breakthrough in operational amplifier performance. Low offset and long-term stability are achieved by means of a low-noise, chopper less, bipolar-input-transistor amplifier circuit. For most applications, external components are not required for offset nulling and frequency compensation. The true differential input, with a wide input voltage range and outstanding common-mode rejection, provides maximum flexibility and performance in high-noise environments and in noninverting applications. Low bias currents and extremely high input impedances are maintained over the entire temperature range. The OP07 is unsurpassed for low-noise, high-accuracy amplification of very low-level signals.These devices are characterized for operation from 0°C to 70°C.

Features:

• Low Noise
• No External Components Required
• Replaces Chopper Amplifiers at a Lower Cost
• Single-Chip Monolithic Fabrication
• Wide Input Voltage Range – 0 to ±14 V Typ
• Wide Supply Voltage Range – ±3 V to ±18 V
• Essentially Equivalent to Fairchild mA714 Operational Amplifiers
• Direct Replacement for PMI OP07C and OP07D

Specification:

• Supply voltage, VCC+: 22 V
• Supply voltage, VCC– : –22 V
• Differential input voltage :±30 V
• Input voltage, VI : ±22 V
• Duration of output short circuit : unlimited
• Continuous total dissipation at (or below) 25°C free-air temperature :500mW

• Low Noise
• No External Components Required
• Replaces Chopper Amplifiers at a Lower Cost
• Single-Chip Monolithic Fabrication
• Wide Input Voltage Range – 0 to ±14 V Typ
• Wide Supply Voltage Range – ±3 V to ±18 V
• Essentially Equivalent to Fairchild mA714 Operational Amplifiers
• Direct Replacement for PMI OP07C and OP07D
