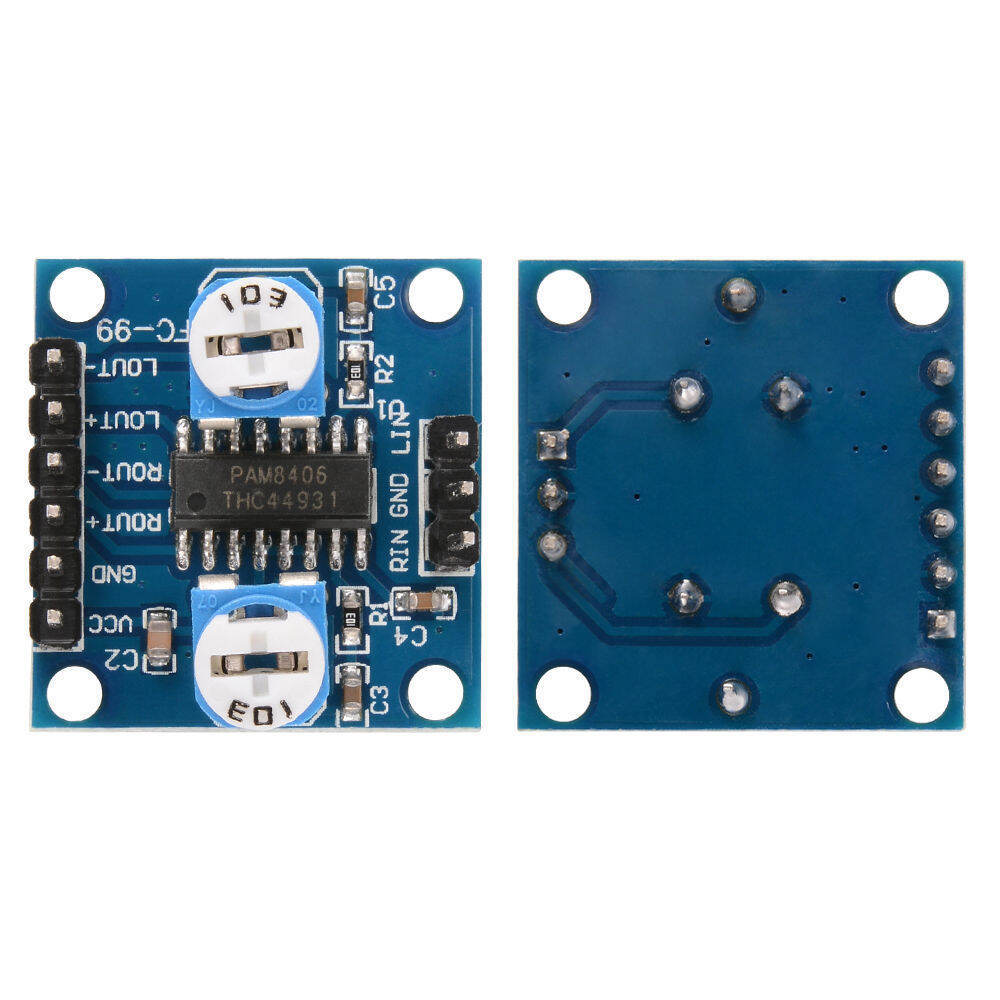

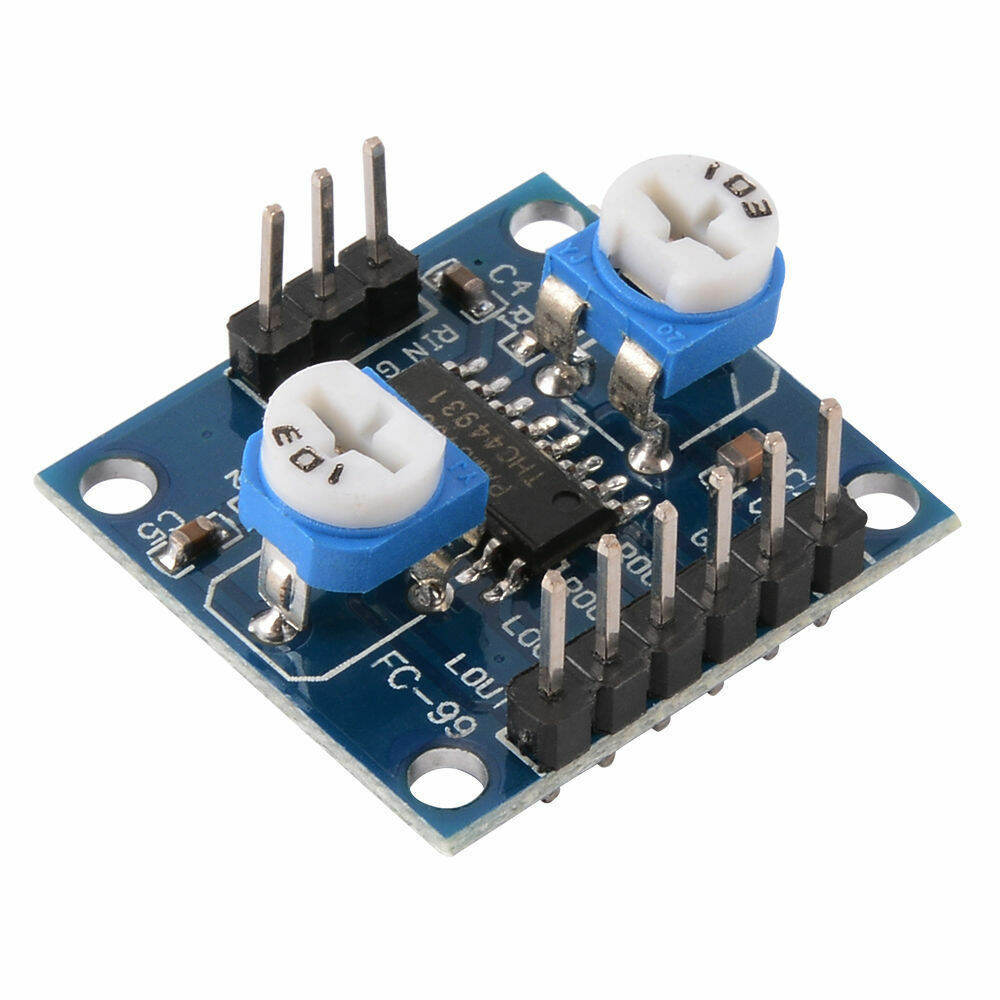

Description: PAM8406 5Wx2 Class-D Stereo Audio Power Amplifier Module

PAM8406 Digital Amplifier Module With Volume Control Potentiometer 5Wx2 Stereo PAM8406 Amplifier Board PAM8406 5Wx2 Class D Digital Stereo Audio Power Amplifier Module Board

PAM8406 5Wx2 Class D Digital Stereo Audio Power Amplifier Module Board Home Entertainment Receivers & Amplifiers

PAM8406 Digital Amplifier Board With Volume Potentiometer 5Wx2 Stereo Home Entertainment Receivers & Amplifiers

PAM8406 Digital Amplifier Module With Volume Control Potentiometer 5Wx2 Stereo

PAM8406 Digital Amplifier Module With Volume Control Potentiometer is an excellent noise suppression module. If you don’t receive input audio, you will not hear any noise on your ears.

This module has a double channel stereo output. Its 5V power supply gives the output of 5W+5W power, can directly drive the 4 Omega, 8 Omega small sound box, the output power is big, the energy is full, the sound quality is good, with the volume adjustment of the right and left channel.

• PAM8406 5Wx2 Class D Digital Stereo Audio Power Amplifier Module Board with Volume Pots
• This miniature PAM8406 module is a 5W class-D stereo audio amplifier. It offers low THD+N and high SNR allowing it to achieve high-quality sound reproduction.
• The fully differential output with new filter less architecture (Class-D Mode) allows the device to drive the speakers directly, requiring no low-pass output filters and DC blocking capacitors, saving the system cost and reducing size.
• The Pam8406 can operate from a 5V USB power supply or batteries and includes left and right channel volume control potentiometers for ease of use. It is fully protected against faults with short circuit protection and thermal protection.
• It can be used in any DIY design requiring a miniature audio amplifier. With efficiency up to 90%, it is well suited to portable and mobile applications operating on battery power.

Features:

• Can be powered with a computer USB port, USB power bank or a mobile phone charger to supply the 5V support power
• Battery power can also be used
• High efficiency: 90%
• Provides 5W (left channel) + 5W (right channel) output power at 10% THD+N into a 2Ω speaker load and 5V power supply,
• 3W into 4Ω and 2W into 8Ω
• CMOS class D amplifier design for high efficiency and low cost
• Integrated volume controls for left and right channels
• Module has short-circuit current and over-temperature protection

Specifications:

• Operating voltage: 2.5V-5.5V, recommended 5V
• Speaker Load: 2-8 Ohms
• Input and Output Connectors: Pins on 0.2″ centers
• Size: 24 x 23 x 105 mm (L x W x H)
• Net weight: 3g
