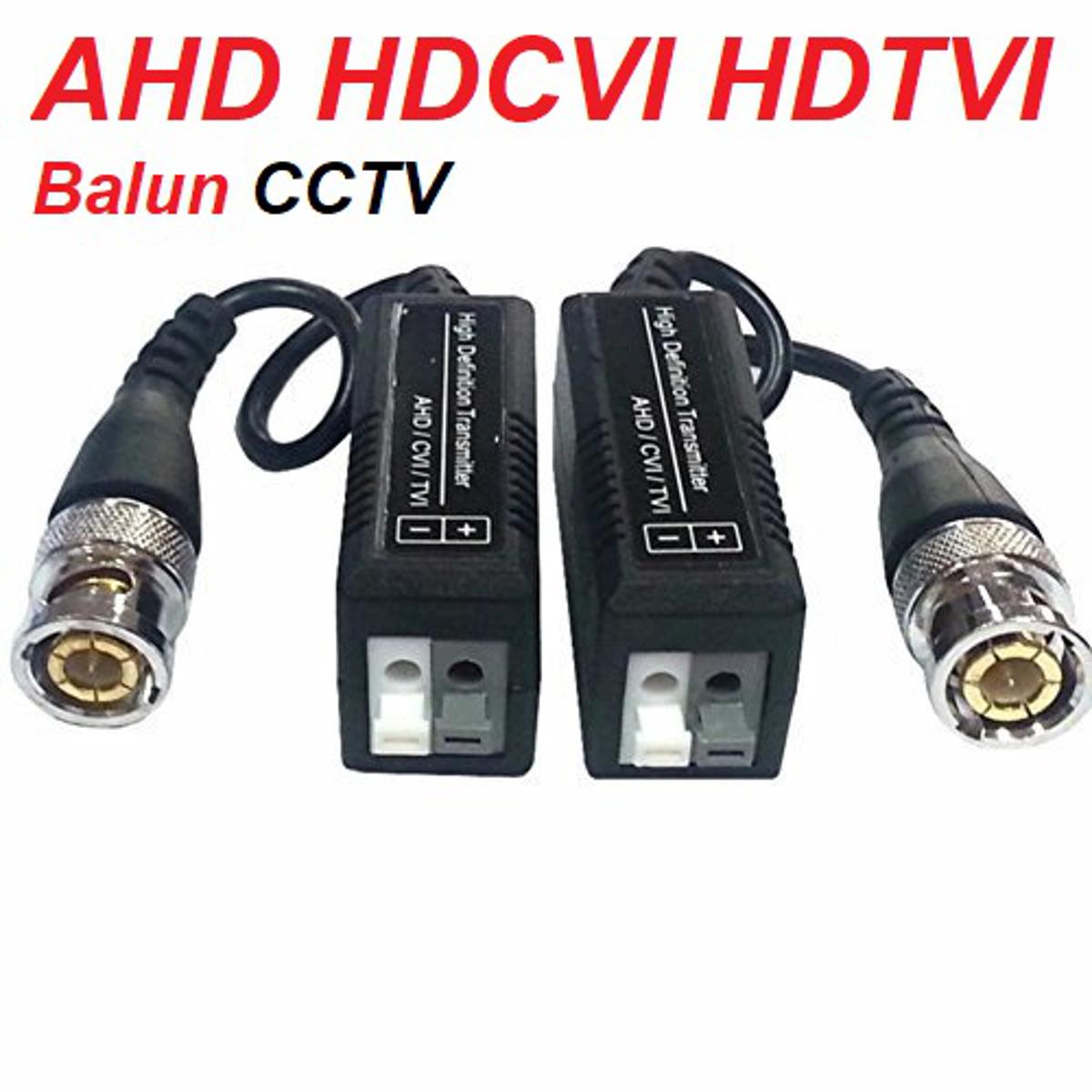

Description: Passive Security Analog HDCVI Transceiver Single Channel 1080P CCTV Camera Video Balun for AHD HDCVI HDTVI With Single Port CCTV HD CVI AHD TVI

hdtvi cvi ahd cvbs passive twisted pair video transmission, avoid screw push button terminal design, as long as one click can complete the installation and be used to send and receive, integrated esd circuit to avoid electrostatic interference caused by, surge built-in, with filter circuit, except can filter for interference; The built-in lightning protection tube can prevent instantaneous surge and active transport color signal from 915 meters.

Ahd tvi cvi passive twisted pair video transmission equipment and can be used for sending and receiving, no need to provide power supply, transmission distance for color signal 0-225 meters, black and white signal more than 400 meters; the integrated eliminate electric source, electric field, magnetic field, pulse circuit, epd interference, strong interference suppression capability, ultra low electromagnetic radiation, built-in overvoltage protection can make phone calls, rs485 control, audio data.

Specification:

Compatible with AHD/CVI/TVI signal

Transmission signal: 720P/1080P

Cable: CAT 5/5e/6

Transmission distance to 300m for CVA/AHD,200m for TVI

No power required

Built-in surge and transient protection

Super interference rejection

Using twisted pair instead of 75 ohm coaxial cable as a video signal transmission.

To ensure image, improve image clarity.

Excellent control interference function. Improve cable utilization, reduce project.

And compatible with the market to use more AHD / HDCVI / HDTVI high-definition analog signals.

And transmission distance, high transmission.

As the video through the use of advanced processing technology.

The video signal amplitude and attenuation of different frequencies to enlarge and compensate.

Maintain the brightness of the image, color. To achieve a good long-distance video signal transmission.

Features:

Power supply: no additional power supply;

Transmission effect: real-time transmission AHD / HDCVI / HDTVI video signal, video clear and stable.

Transmission distance: 0 ~ 400 meters (with the passive transmitter with).

The main function: the use of a pair of twisted pair transmission of single-channel video signal.

Protection against interference: excellent for lightning protection, anti-static and anti-jamming capability.

Appearance: metric BNC coaxial interface, pressure card twisted pair terminal.

Signal is good: no interference, accurate signal reduction.

Wiring less: because the network twisted pair diameter small weight light, less freight.

Installation is simple and quick, multi-channel camera installation.

Four-core or eight-core twisted pair can be used as a trunk of the camera gun.

Package Include:

1 x Passive Security Analog HDCVI Transceiver Single Channel 1080P CCTV Camera Video Balun for AHD HDCVI HDTVI With Single Port CCTV HD CVI AHD TVI

• Compatible with AHD/CVI/TVI signal
• Transmission signal: 720P/1080P
• Cable: CAT 5/5e/6
• Transmission distance to 300m for CVA/AHD,200m for TVI
• No power required
• Built-in surge and transient protection
• Super interference rejection
• Using twisted pair instead of 75 ohm coaxial cable as a video signal transmission.
• To ensure image, improve image clarity.
• Excellent control interference function. Improve cable utilization, reduce project.
• And compatible with the market to use more AHD / HDCVI / HDTVI high-definition analog signals.
• And transmission distance, high transmission.
• As the video through the use of advanced processing technology.
• The video signal amplitude and attenuation of different frequencies to enlarge and compensate.
• Maintain the brightness of the image, color. To achieve a good long-distance video signal transmission.
