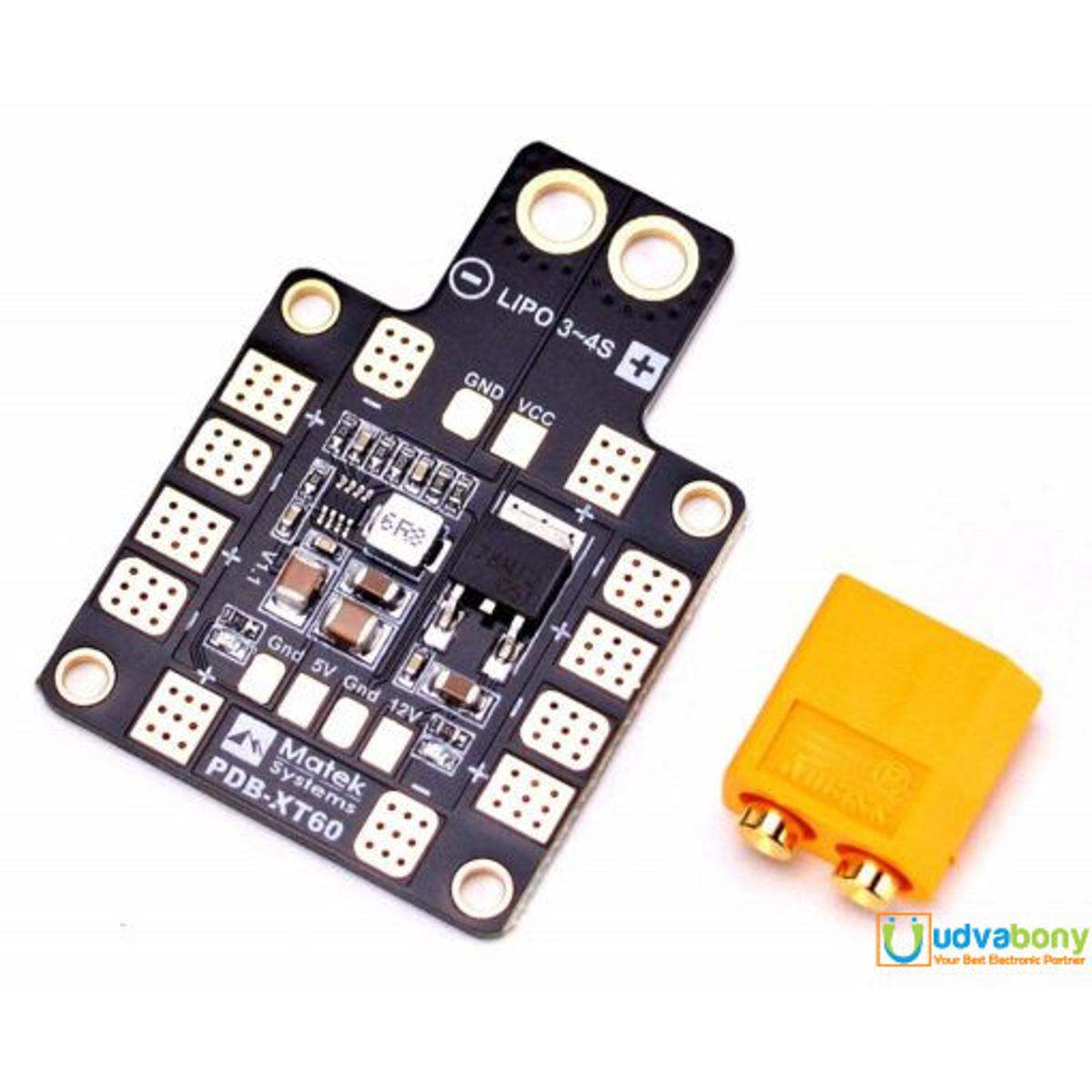

PDB-XT60 PDB XT60 Mini Power Distribution Board 5V 12V Electrical Circuitry and Parts

Description: PDB-XT60 Power Distribution Board 5-12V for FPV Racing Quadcopter

PDB-XT60 PDB XT60 Power Distribution Board Mini Power Hub Power Distribution Board PDB-XT60 5V 12V Dual Way BEC 6 ESC For Racing Drone FPV Quadcopter QAV210 QAV-R QAV-X

PDB-XT60 with BEC 5V and 12V Power Distribution Board have been engineered to provide the highest possible performance and reliability in a 36x50mm, 4 layer PCB. It comes with an XT60 for easy connection to LiPo batteries.

UsingBECs it distributes power from3~4S LiPopacks to 6ESCs, as well as providing synchronized and regulated DC 5V outputs for RC Receivers,Flight controllers, OSD, andServos.

It also provides linear regulated DC 12V for poweringCameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc. It offers an XT60 socket to connect theLiPopack conveniently.

ThePDB-XT60 with BEC 5V and 12V is a great package to get your RacingDronespowered up for racing.

Note:

Since this is an Open Source Power Distribution Board, there are many manufacturers who are supplying this product. We have picked up the best quality products from the market and tested them for their functionality. And finallyselected best amongst them. Our product works exactly same as we have described above in the description.

Features :

1. 4-layers and 1.6mm PCB
2. Built-in XT60 Socket
3. Total 6 pairs ESC solder tabs are fit for H or X type frame
4. 5V and 12V Output LED indicators
5. Regulated 5V and 12V outputs
6. BEC 5V output:5V/2A (Max.2.5A 10s/minute)
7. Output Ripple:40mV (VIn= 16V, VOut=5V@2Aload)
8. Short-circuit tolerant:5 seconds/minute
9. BEC 12V output (4S LiPoly, 13~18V DC):12V/500mA (Max.0.8A 5s/minute)
10. BEC 12V output (3S LiPoly):=3S LiPoly voltage – 1V

Specifications:

• Input voltage range (3S-4S operation): 9 – 18VDC
• Regulated 5V and 12V outputs
• LED power indicators ( 5V & 12V outputs )
• 4 ESC outputs

ESC outputs:

• Continuous current: 20A per output
• Peak current (10 seconds/minute): 25A per output

BEC 5V output:

• Designed for RC Receivers, Flight controllers, OSD, and Servos.
• DC/DC synchronous buck regulator, Efficiency is up to 95%.
• Voltage: 5.0 +/- 0.1VDC
• Continuous current: 3 Amps
• Short-circuit tolerant (10 seconds/minute) – LED (indicates voltage is in regulation)

BEC 12V output:

• The battery should be 4SLiPo
• Standard output designed to power cameras and video transmitters, etc.
• Voltage: 12.0 +/- 0.2VDC
• Continuous current: 2 Amps (Max.3A 10s/minute)
• Short-circuit tolerant (10 seconds/minute)
• LED (indicates voltage is in regulation)

About the FPV Sponge Mat Landing Skid Pad Gear:

• Super light, strengthen shock proof, anti-static.
• Great for mini quads from 180mm to 300mm in size, great replacement pads for quadcopters like QAV210 QAV250 QAV-R 180 220 260

Package Include:

• 1 x PDB-XT60 Power Distribution Board 5-12V for FPV Racing Quadcopter
