Description: PDB-XT60 Power Distribution Board 5-12V for FPV Racing Quadcopter

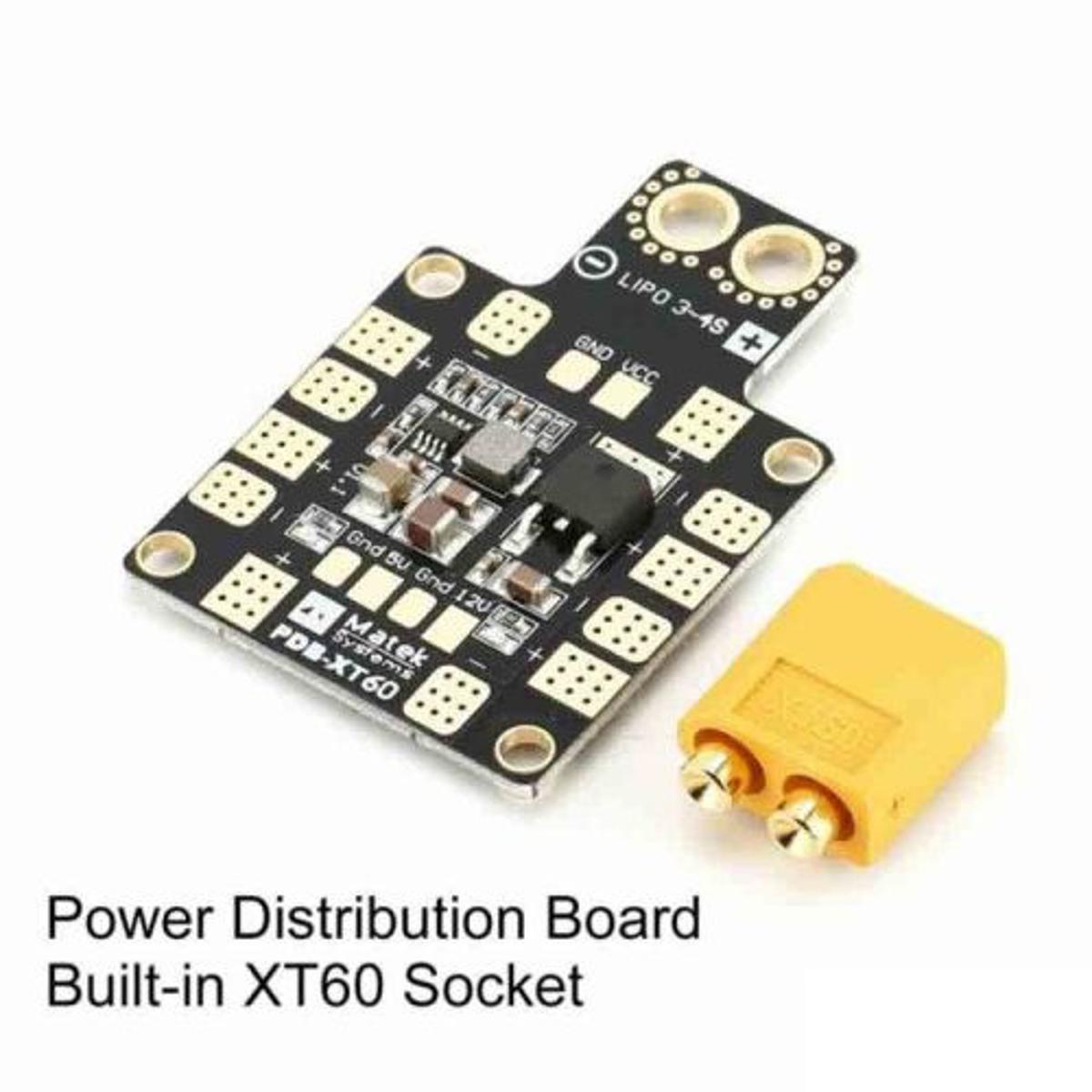

PDB-XT60 Power Distribution Board 5-12V For FPV Racing Quadcopter

Specifications:

• Input voltage range (3S-4S operation): 9 – 18VDC
• Regulated 5V and 12V outputs
• LED power indicators ( 5V & 12V outputs )
• 4 ESC outputs

ESC outputs:

• Continuous current: 20A per output
• Peak current (10 seconds/minute): 25A per output

BEC 5V output:

• Designed for RC Receivers, Flight controllers, OSD, and Servos.
• DC/DC synchronous buck regulator, Efficiency is up to 95%.
• Voltage: 5.0 +/- 0.1VDC
• Continuous current: 3 Amps
• Short-circuit tolerant (10 seconds/minute) – LED (indicates voltage is in regulation)

BEC 12V output:

• The battery should be 4SLiPo
• Standard output designed to power cameras and video transmitters, etc.
• Voltage: 12.0 +/- 0.2VDC
• Continuous current: 2 Amps (Max.3A 10s/minute)
• Short-circuit tolerant (10 seconds/minute)
• LED (indicates voltage is in regulation)

About the FPV Sponge Mat Landing Skid Pad Gear:

• Super light, strengthen shock proof, anti-static.
• Great for mini quads from 180mm to 300mm in size, great replacement pads for quadcopters like QAV210 QAV250 QAV-R 180 220 260

• Input voltage range (3S-4S operation): 9 – 18VDC
• Regulated 5V and 12V outputs
• LED power indicators ( 5V & 12V outputs )
• 4 ESC outputs
