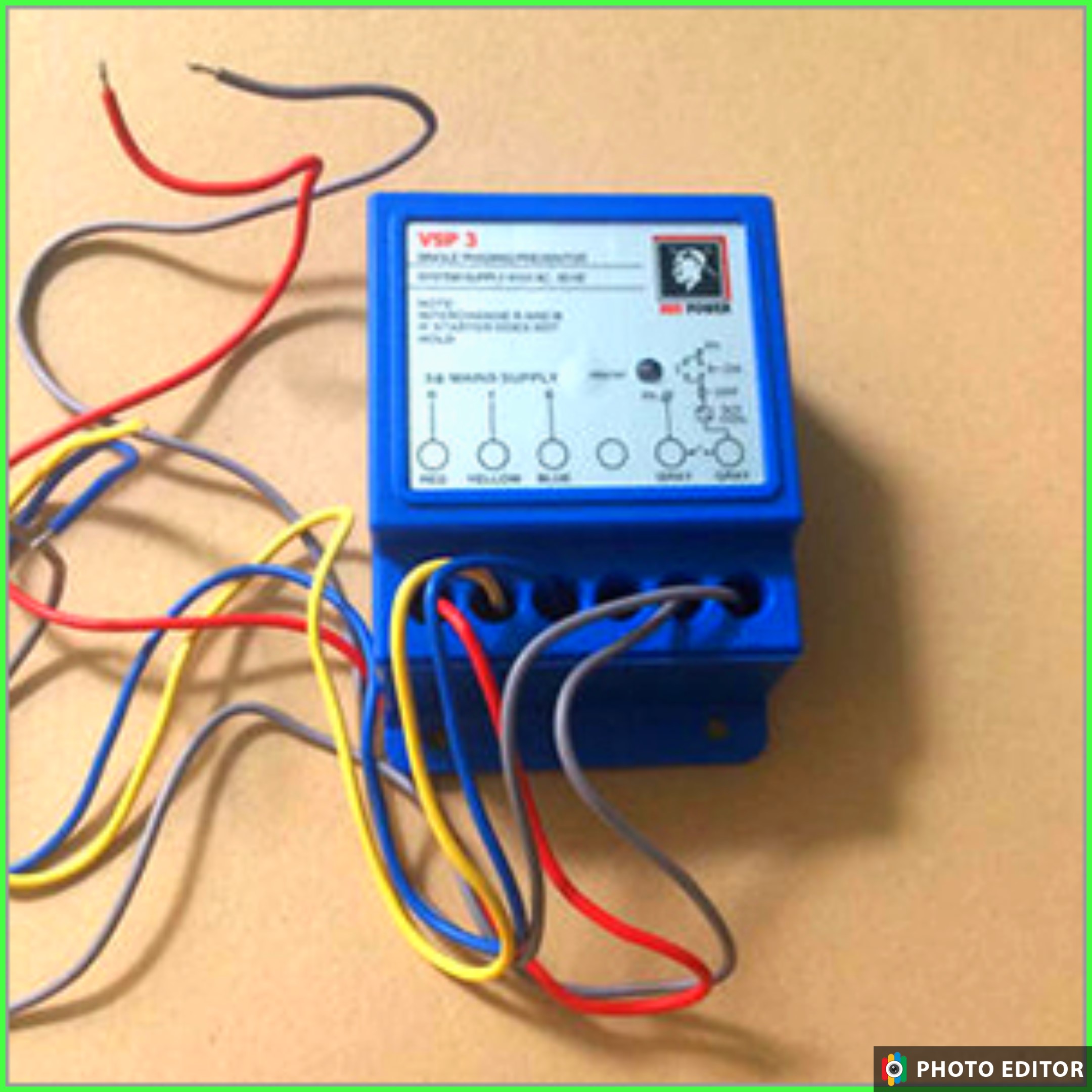

Picture of Phase Failor Relay Three Phase monitoring Relay Phase Sequence Vsp2 And 3 SINGLE PHASING PREVENTOR, For Electrical Panels-Blue

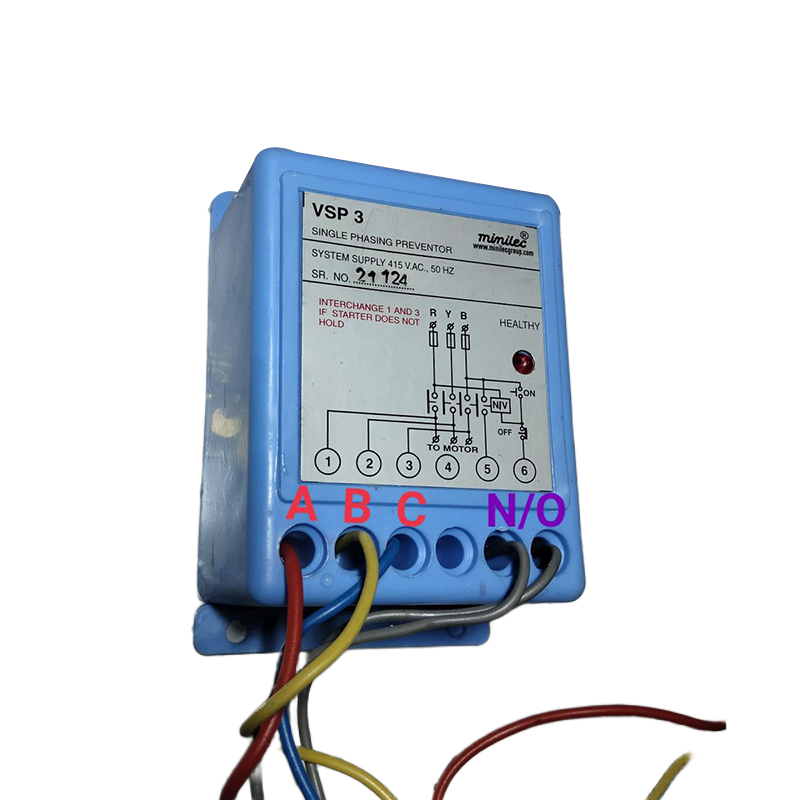

Picture of Phase Failor Relay Three Phase monitoring Relay Phase Sequence Vsp2 And 3 SINGLE PHASING PREVENTOR, For Electrical Panels-Blue

Phase Failor Relay Three Phase monitoring Relay Phase Sequence Vsp2 And 3 SINGLE PHASING PREVENTOR, For Electrical Panels-Blue

Category: Electrical Accessories
SKU: GRIC820783
Seller: GREEN ELECTRONICS.
Tk 2,990
0 review(s)

Phase Failor Relay Three Phase Monitoring Relay Phase Sequence

Product Details:

  • Usage/ApplicationElectrical Panels
  • Model Name/Number: VSP3
  • Mounting Size: 91 x 48 mm
  • Brand: Minilec
  • Supply Voltage: 415 VAC +- 20%, 50 Hz +- 3%
  • Output Relay: Contact1 No
  • Output Contact Rating5 Amp, 240 VAC
  • Unbalance Trip Setting50 V +- 10 VAC
  • Trip Time Delay For3.5 secs. +- 1.5 sec
  • Dimensions103 x 66 x 43 mm
  • Mounting TypePanel Mounting
  • Weight250gms

Call For Order : 09613-800800

Product Details:

  • Connector Type: ‎Screw
  • Contact Type ‎Normally Open
  • Current Rating ‎5 Amps
  • Mounting Type ‎Panel Mount
  • Brand ‎MINILEC
  • Operation Mode ‎Automatic
  • Coil Voltage
  • 415 Volts
  • Contact Current Rating ‎5 Amps
  • Maximum Switching Current ‎5 Amps
  • Manufacturer ‎MINILEC
  • Model ‎VSP3
  • Product Dimensions ‎6.6 x 4.8 x 10.3 cm; 200 g
  • Item model number ‎VSP3
  • Batteries Included ‎No
  • Batteries Required ‎No
  • Material ‎Plastic
  • Manufacturer ‎MINILEC
  • Item Weight ‎200 g

Usage/Application

Electrical Panels

Model Name/Number

VSP3

Mounting Size

91 x 48 mm

Brand

Minilec

Supply Voltage

415 VAC +- 20%, 50 Hz +- 3%

Output Relay Contact

1 No

Output Contact Rating

5 Amp, 240 VAC

Unbalance Trip Setting

50 V +- 10 VAC

Trip Time Delay For

3.5 secs. +- 1.5 sec

Dimensions

103 x 66 x 43 mm

Mounting Type

Panel Mounting

Weight

250gms

  Features: Single phasing, reverse phasing, unbalanced supply Auto reset, 1 NO output contact Suitable for any HP/kW rating monoblock pumps Pre-wired terminals for easy connections






Phase Failor Relay Three Phase Monitoring Relay Phase Sequence

Product Details:

  • Usage/ApplicationElectrical Panels
  • Model Name/Number: VSP3
  • Mounting Size: 91 x 48 mm
  • Brand: Minilec
  • Supply Voltage: 415 VAC +- 20%, 50 Hz +- 3%
  • Output Relay: Contact1 No
  • Output Contact Rating5 Amp, 240 VAC
  • Unbalance Trip Setting50 V +- 10 VAC
  • Trip Time Delay For3.5 secs. +- 1.5 sec
  • Dimensions103 x 66 x 43 mm
  • Mounting TypePanel Mounting
  • Weight250gms
