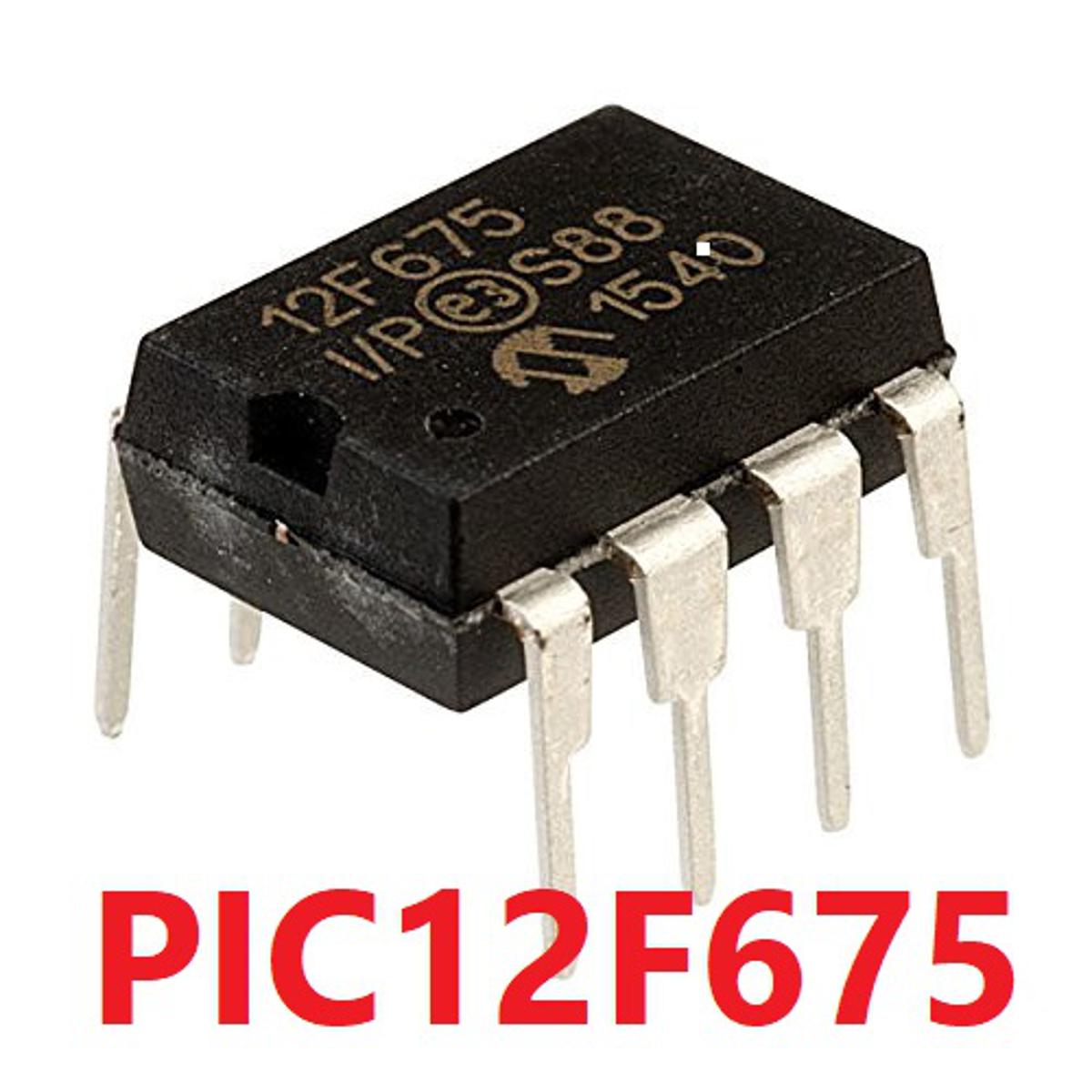

Description: Microchip PIC12F675 Micro Controller IC PIC 12F675 Flash 1KByte 4MHz Microcontroller Electronics Chip

PIC12F675 PIC-12F675 PIC 12F675 Microcontrollers IC 8-Bit 4MHz 1KB Flash Microchip MCU DIP-8 8 Pin Dual In Line Package Chip Electrical Circuitry & Parts

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip’s powerful PIC® MCU architecture into an 8-pin package and features 4 channels for the10-bit Analog-to-Digital (A/D) converter, 1 channel comparator and 128 bytes of EEPROM data memory. This device is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.

High-Performance RISC CPU

• Only 35 single word instructions to learn
• All instructions are single cycle (1µs) except for program branches
• Operating speed: DC – 20MHz clock input
• Interrupt Capability
• 8-Level Deep Hardware Stack
• Direct, Indirect and Relative Addressing Modes

Peripheral Features

• 8-bit real time clock/counter(TMR0) with 8-bit programmable prescalar
• 6 I/O pins with individual direction control
• High current sink/source for direct LED drive
• Analog-to-Digital Converter module: 10-bit resolution, Programmable 4-channel Input
• Enhanced Timer1
• In-Circuit Serial Programming (ICSP) via pins

Low Power Features

• Standby Current: 1 nA @ 2.0V, typical
• Operating Current: 8.5 µA @ 32 kHz, 2.0V, typical, 100 µA @ 1 MHz, 2.0V, typical
• Watchdog Timer Current: 300 nA @ 2.0V, typical
• Timer1 Oscillator current: 4 µA 32 kHz, 2.0V, typical

Special Microcontroller Features

• Internal and External Oscillator Options
• Power Saving SLEEP Mode
• Wide operating voltage range – 2.0V to 5.5V
• Industrial and Extended Temperature Range
• Low Power Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Brown-out Detect (BOT)
• Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation
• Multiplex MCLR/Input-pin
• Interrupt-on-pin Change
• Individual Programmable Weak Pull-ups
• Programmable Code Protection
• High Endurance FLASH/EPROM Cell

• Only 35 single word instructions to learn
• All instructions are single cycle (1µs) except for program branches
• Operating speed: DC – 20MHz clock input
• Interrupt Capability
• 8-Level Deep Hardware Stack
• Direct, Indirect and Relative Addressing Modes
