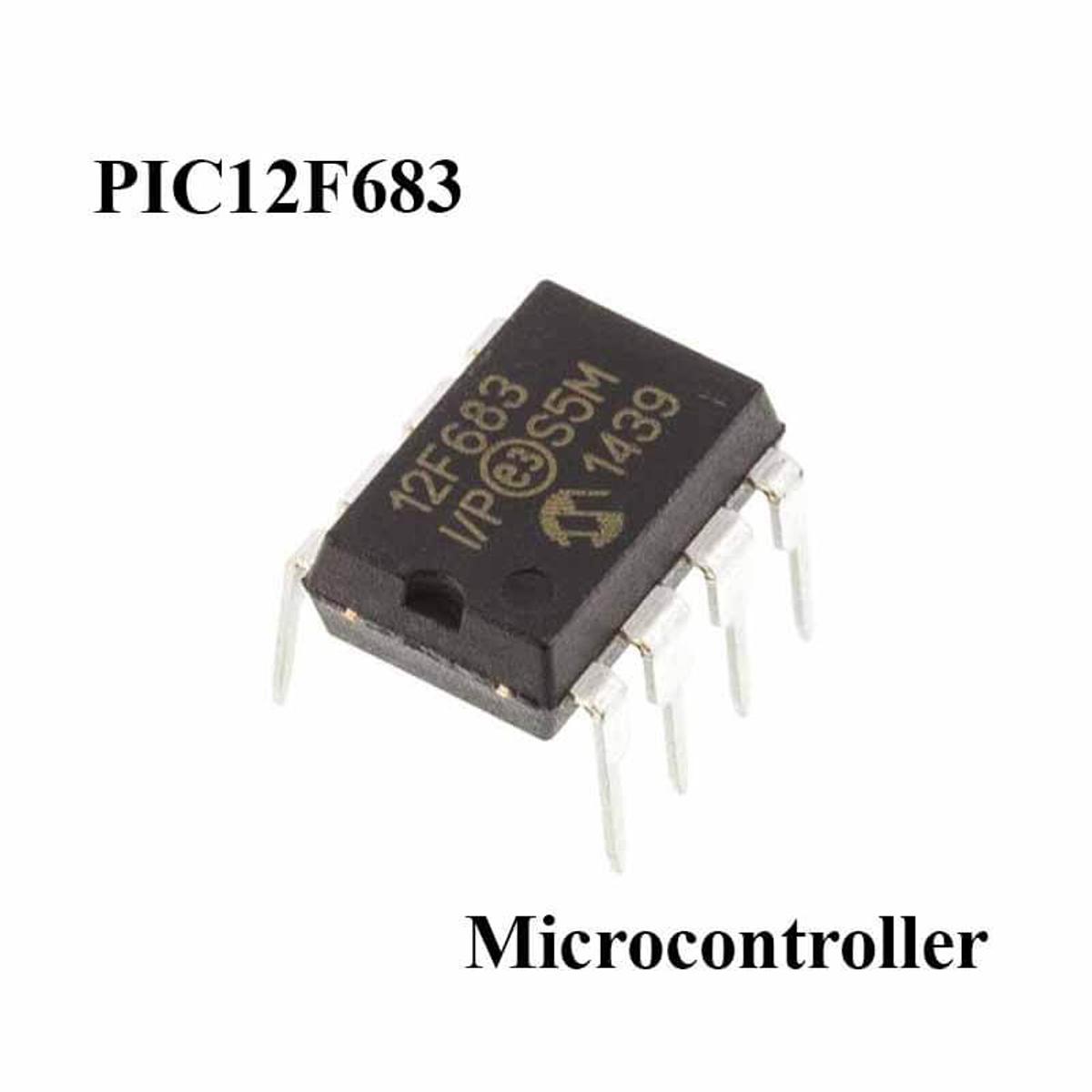

Description: Microchip PIC12F683 PIC12F683 8 Bit PIC Microcontroller PIC12F 20MHz 256B 2048×14 Words Flash DIP 8 Pin Electronics Parts

The Low Pin-count (8) PIC® Flash microcontroller products offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including a wide operating voltage of 2.0-5.5 volts, on-board EEPROM Data Memory, and nanoWatt Technology. Standard analog peripherals include up to 4 channels of 10-bit A/D, an analog comparator module with a single comparator, programmable on-chip voltage reference and a Standard Capture/Compare/PWM (CCP) module.

New 8-pin PIC with nanoWatt technology. Extended WDT, 4 channel ADC, software selectable oscillator 32khz to 8MHz. Runs up to 20MHz with external crystal and up to 8MHz with an on-board RC oscillator. Package can be programmed in circuit.

Features:

• Program Memory Type: Flash
• Program Memory (KB): 3.5
• CPU Speed (MIPS): 5
• RAM Bytes: 128
• Data EEPROM (bytes): 256
• Capture/Compare/PWM Peripherals: 1 CCP
• Timers: 2 x 8-bit, 1 x 16-bit
• ADC: 4 ch, 10-bit
• Comparators: 1
• Temperature Range (C): -40 to 125
• Operating Voltage Range (V): 2 to 5.5
• Pin Count: 8
• Cap Touch Channels: 4

Package Include:

1 x Microchip PIC12F683 PIC12F683 8 Bit PIC Microcontroller PIC12F 20MHz 256B 2048×14 Words Flash DIP 8 Pin Electronics Parts

• Program Memory Type: Flash
• Program Memory (KB): 3.5
• CPU Speed (MIPS): 5
• RAM Bytes: 128
• Data EEPROM (bytes): 256
• Capture/Compare/PWM Peripherals: 1 CCP
• Timers:  2 x 8-bit, 1 x 16-bit
• ADC: 4 ch, 10-bit
• Comparators: 1
• Temperature Range (C): -40 to 125
• Operating Voltage Range (V): 2 to 5.5
• Pin Count: 8
• Cap Touch Channels: 4
