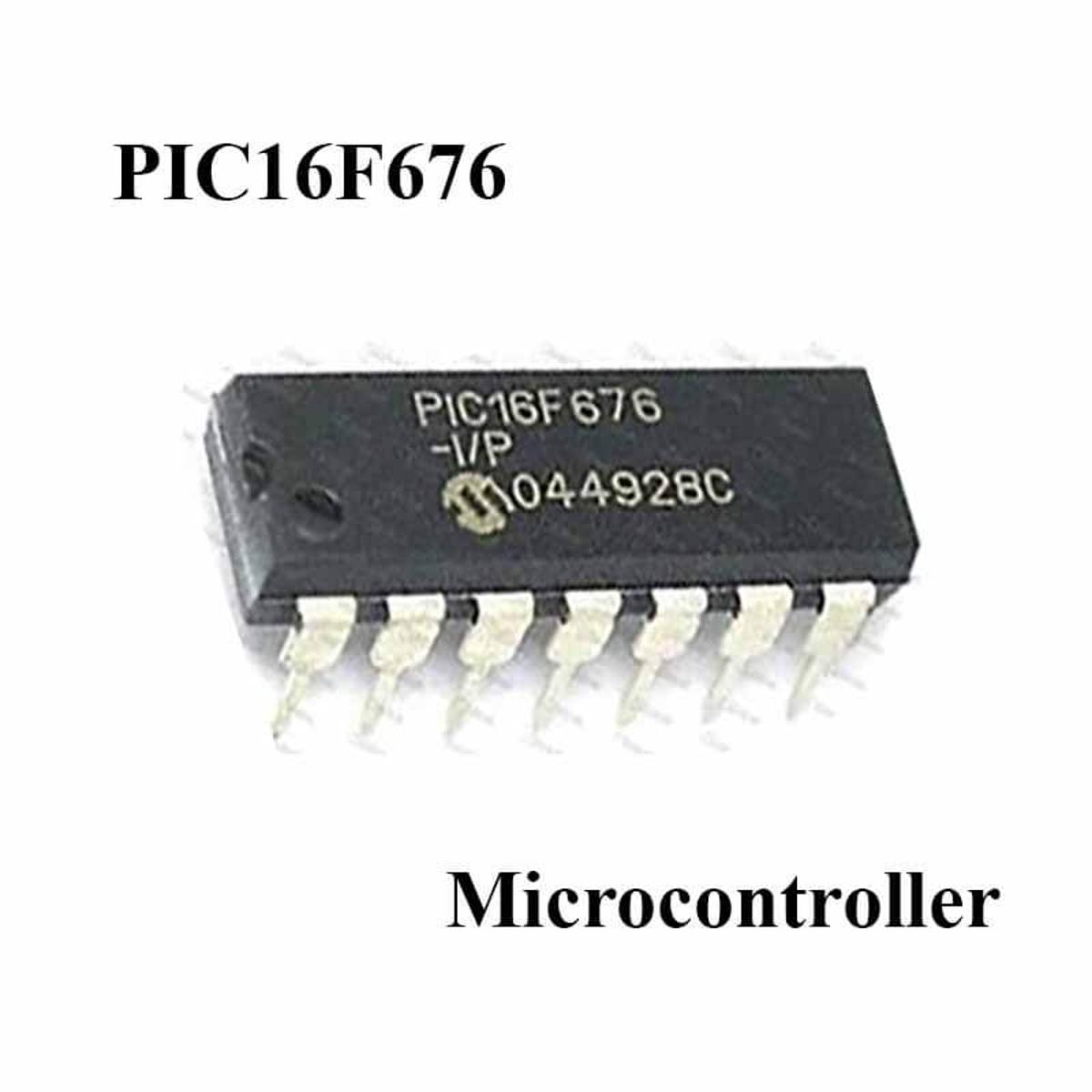

Picture of PIC16F676 IC 16F676 Microcontrollers IC DIP-14 14 Pin Leads Dual In Line Package Chip
Picture of PIC16F676 IC 16F676 Microcontrollers IC DIP-14 14 Pin Leads Dual In Line Package Chip

PIC16F676 IC 16F676 Microcontrollers IC DIP-14 14 Pin Leads Dual In Line Package Chip

Category: Building Materials
SKU: UDBD05882
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 276
Tk 325
Tk 325
15% OFF
0 review(s)
  • 20 MHz Max. CPU Speed
  • 35 Instructions
  • 8 Level Hardware Stack
  • 4 MHz Internal Oscillator
  • 12 I/O Pins
  • Power-On Reset (POR)
  • Power-Up Timer (PWRT)
  • Oscillator Start-Up Timer (OST)
  • Brown-Out Detect (BOD)
  • Watchdog Timer (WDT)
  • In-Circuit Serial Programming (ICSP)

Call For Order : 09613-800800

Description: PIC16F676 8-Bit Flash Microcontrollers

The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.The PIC16F630/676 family of microcontrollers is based upon Microchip’s Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 1.75 Kbytes program memory, up to 64 bytes RAM and Data EEPROM of 128 bytes. On board is an oscillator factory calibrated to ±1% accuracy.

Features:

  • 20 MHz Max. CPU Speed
  • 35 Instructions
  • 8 Level Hardware Stack
  • 4 MHz Internal Oscillator
  • 12 I/O Pins
  • Power-On Reset (POR)
  • Power-Up Timer (PWRT)
  • Oscillator Start-Up Timer (OST)
  • Brown-Out Detect (BOD)
  • Watchdog Timer (WDT)
  • In-Circuit Serial Programming (ICSP)

Peripherals:

  • 8 Channel 10-bit Analogue to Digital Converter (ADC) – PIC16F676 Only
  • One Comparator
  • One 8-bit Timer
  • One 16-bit Timer






  • 20 MHz Max. CPU Speed
  • 35 Instructions
  • 8 Level Hardware Stack
  • 4 MHz Internal Oscillator
  • 12 I/O Pins
  • Power-On Reset (POR)
  • Power-Up Timer (PWRT)
  • Oscillator Start-Up Timer (OST)
  • Brown-Out Detect (BOD)
  • Watchdog Timer (WDT)
  • In-Circuit Serial Programming (ICSP)
