Description: PIC16F72 8-Bit Flash Microcontrollers

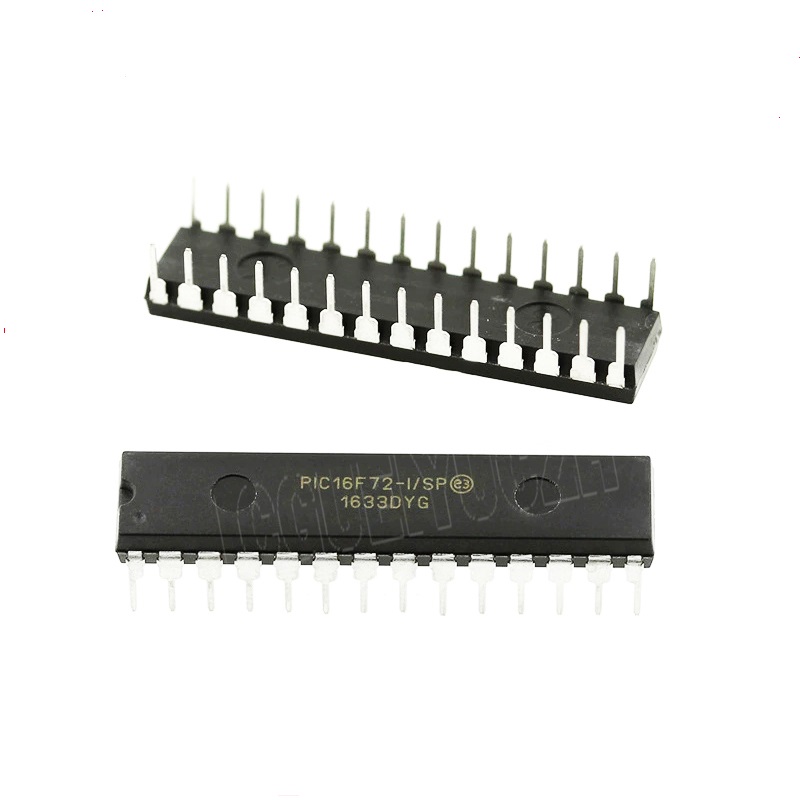

PIC16F72 Microcontrollers IC 16F72 IC MCU DIP-28 28 Pin Leads Dual In Line Package Chip PIC16F72 IC

PIC16F72 PIC-16F72 PIC 16F72 Microcontrollers IC 8-Bit 20MHz 2KB Flash Microchip MCU DIP-28 28 Pin Dual In Line Package Chip Electrical Circuitry & Parts

The PIC16F72 range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications. The PIC16F72 family of microcontrollers is based upon Microchip’s Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 3.5 Kbytes program memory and 128 bytes RAM.

Features:

• 20 MHz Max. CPU Speed
• 35 Instructions
• 8 Level Hardware Stack
• 22 I/O Pins
• Power-On Reset (POR)
• Power-Up Timer (PWRT)
• Oscillator Start-Up Timer (OST)
• Brown-Out Reset (BOR)
• Watchdog Timer (WDT)
• In-Circuit Serial Programming (ICSP)

Peripherals:

• 5 Channel 8-bit Analogue to Digital Converter (ADC)
• Capture, Compare, PWM (CCP) Module
• Two 8-bit Timers
• One 16-bit Timer
• Synchronous Serial Port (SSP) with SPI and I2C

• 20 MHz Max. CPU Speed
• 35 Instructions
• 8 Level Hardware Stack
• 22 I/O Pins
• Power-On Reset (POR)
• Power-Up Timer (PWRT)
• Oscillator Start-Up Timer (OST)
• Brown-Out Reset (BOR)
• Watchdog Timer (WDT)
• In-Circuit Serial Programming (ICSP)
