Description: PIC16F76 Micro Controller DIP 28 Pin PIC16F76

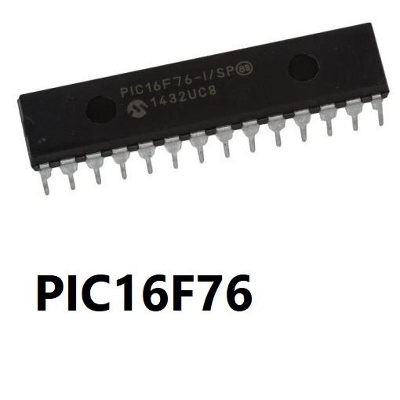

PIC16F76 IC PIC16F76 Microcontrollers IC 16F76 IC MCU DIP-28 28 Pin Leads Dual In Line Package Chip

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices.

The PIC16F73 features 5 channels of 8-bit Analog-to-Digital (A/D) converter with 2 additional timers, 2 capture/compare/ PWM functions and the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.

Specification:
Only 35 single-word instructions to learn
All instructions are single cycle except for program branches which are two-cycle
8-level deep hardware stack
Direct, Indirect and Relative Addressing modes for data and instructions
Operating speed: up to 20 MHz clock speed, 200 ns instruction cycle time
4K x 14 words of Flash Program Memory
192 x 8 bytes of data memory (RAM)
22 I/O pins
PIC16F76 Micro controller DIP 28 Pin
Power-on Reset (POR)
Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
Programmable Code Protection
Power-Saving Sleep mode
In-Circuit Serial Programming™ (ICSP™)
Selectable oscillator options:
RC: Low-cost RC oscillator
XT: Standard crystal/resonator
HS: High-speed crystal/resonator
LP: Power-saving, low-frequency crystal

• Only 35 single-word instructions to learn
• All instructions are single cycle except for program branches which are two-cycle
• 8-level deep hardware stack
• Direct, Indirect and Relative Addressing modes for data and instructions
• Operating speed: up to 20 MHz clock speed, 200 ns instruction cycle time
• 4K x 14 words of Flash Program Memory
• 192 x 8 bytes of data memory (RAM)
• 22 I/O pins
