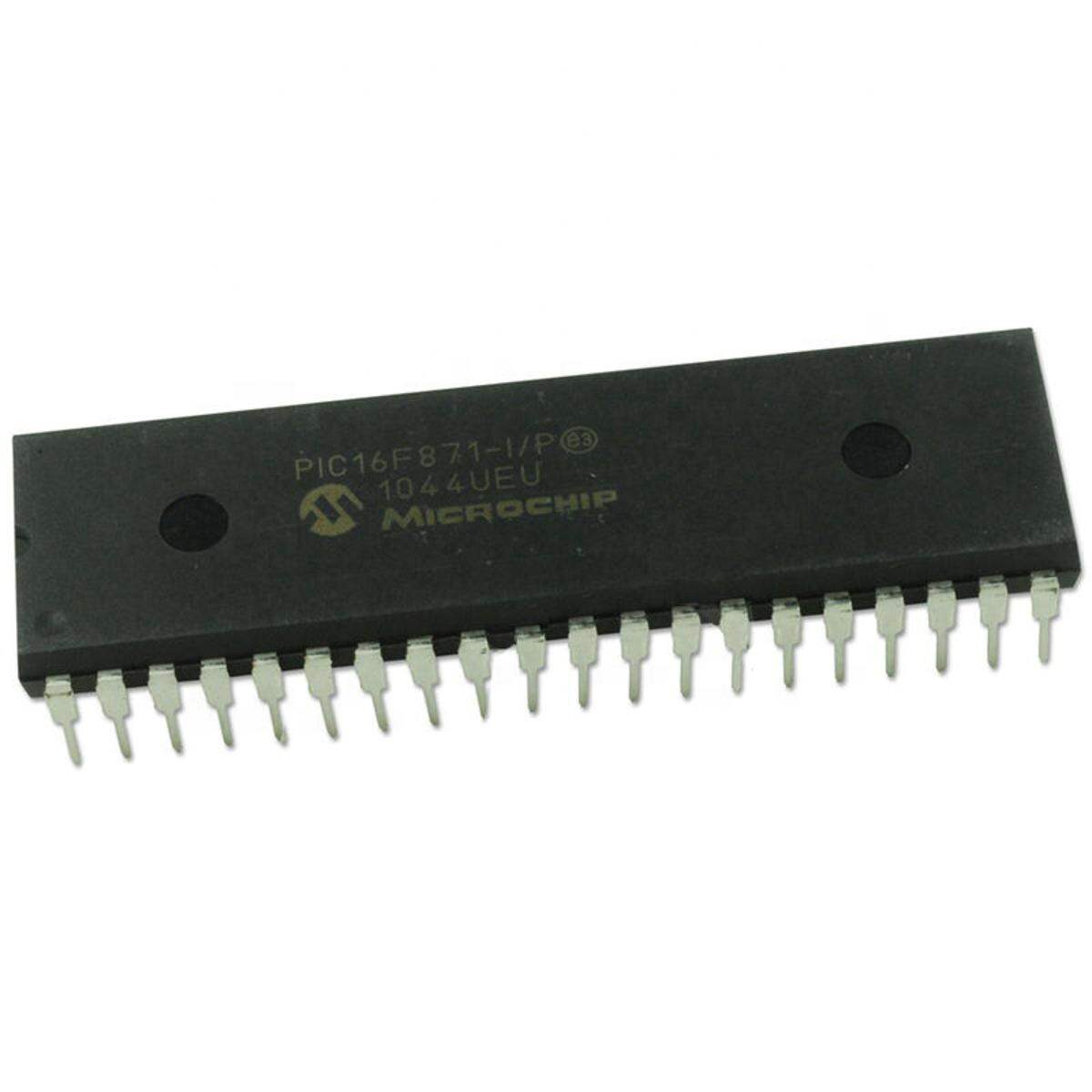

Description: PIC16F871 8-Bit Microcontroller

PIC16F871 PIC-16F871 PIC 16F871 Microcontrollers IC 8-Bit 20MHz 3.5KB Memory Size Microchip MCU DIP-40 40Pin Dual In Line Package Chip Electrical Circuitry & Parts

The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications. The PIC16F870/871 family of microcontrollers is based upon Microchip’s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 3.5 Kbytes program memory, 128 bytes RAM and EEPROM of 64 bytes.

Features:

20 MHz Max. CPU Speed

35 Instructions

8 Level Hardware Stack

22 I/O Pins – PIC16F870 Model

33 I/O Pins – PIC16F871 Model

Power-On Reset (POR)

Brown-Out Reset (BOR)

Power-Up Timer (PWRT)

Oscillator Start-Up Timer (OST)

Watchdog Timer (WDT)

In-Circuit Serial Programming (ICSP)

In-Circuit Debug (ICD)

Peripherals:

10-bit Analogue-to-Digital Converter (ADC) – PIC16F870 5 Channels, PIC16F871 8 Channels

Capture, Compare, PWM (CCP) Module

Two 8-bit Timers

One 16-bit Timer

Universal Synchronous Asynchronous Receiver Transmitter (USART)

Parallel Slave Port (PSP) – PIC16F871 Model Only

Specification:

Datasheet

Package Include:

1 x PIC16F871 8-Bit Microcontroller
