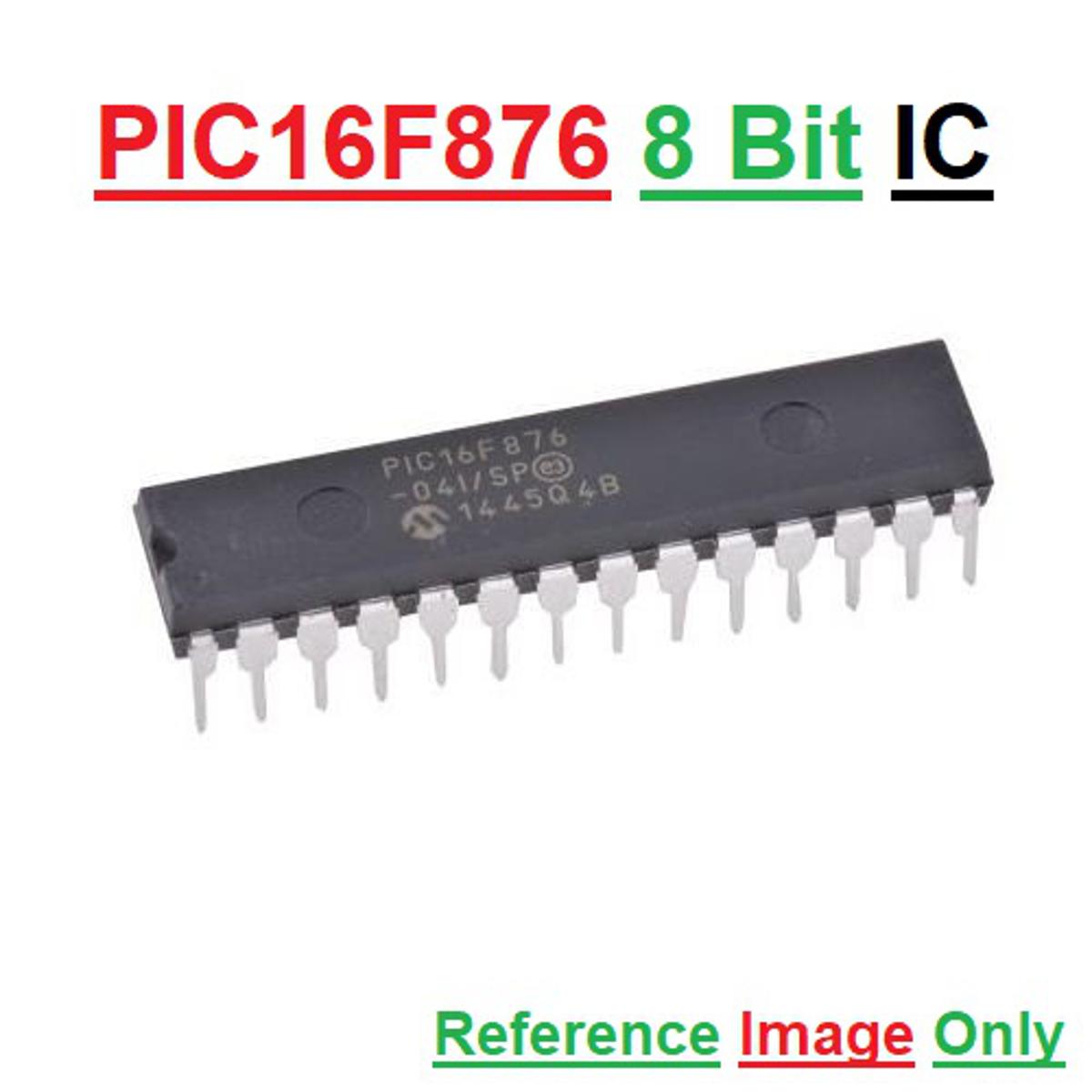

Descriptions: PIC16F876 8 Bit MCU PIC Microcontroller IC

This powerful yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into a 28 pin package. The PIC16F76 features 256 bytes of EEPROM data memory, self programming, an ICD, 2 Comparators, 11 channels of 10-bit Analog-to-Digital (A/D) converter, 1 capture/compare/PWM and 1 Enhanced capture/compare/PWM functions, a synchronous serial port that can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and an Enhanced Universal Asynchronous Receiver Transmitter (EUSART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances or consumer applications.

Specifications

• 8-bit enhanced flash microcontroller
• PIC16F87XA family
• 2V to 5.5V supply voltage
• 14KB flash memory
• 256Bytes EEPROM memory
• 368Bytes SRAM data memory
• 22 I/O pins
• 5ch x 10Bit ADC channels
• 3 timers
• 2 PWM channels
• 20MHz clock speed
• SPI, I2C, USART interfaces
• 28-SPDIP case

• 8-bit enhanced flash microcontroller
• PIC16F87XA family
• 2V to 5.5V supply voltage
• 14KB flash memory
• 256Bytes EEPROM memory
• 368Bytes SRAM data memory
• 22 I/O pins
• 5ch x 10Bit ADC channels
• 3 timers
• 2 PWM channels
• 20MHz clock speed
• SPI, I2C, USART interfaces
• 28-SPDIP case
