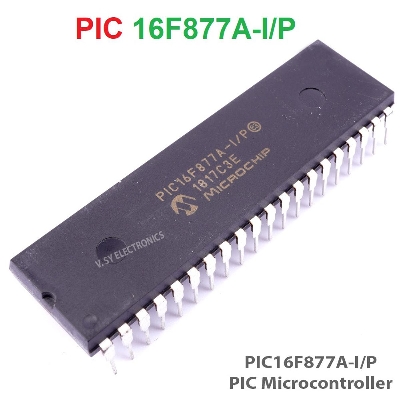

Description: PIC16F877A-I/P Brand New Microcontroller

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into an 40pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices. PIC16F877 features 256 bytes of EEPROM data memory, self programming, an ICD, 8 channels of 10-bit Analog-to-Digital (A/D) converter, 2 additional timers, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.

Specification:

• Manufacturer: Microchip
• Mounting Style: Through Hole
• Package/Case: PDIP-40
• Core: PIC16
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 20MHz
• Program Memory Size: 8kB
• Data RAM Size: 368 B
• Data RAM Type: SRAM
• Data ROM Size: 256 B
• Data ROM Type: EEPROM
• Operating Supply Voltage: 4 V to 5.5 V
• Maximum Operating Temperature: + 85 C
• Minimum Operating Temperature: -40 C
• Processor Series: PIC16
• Program Memory Type: Flash
• Number of ADC Channels: 8
• Number of I/Os: 33 I/O
• Number of Timers/Counters:3 Timer
• Interface Type: I2C,SPI, UART

• Manufacturer: Microchip
• Mounting Style: Through Hole
• Package/Case: PDIP-40
• Core: PIC16
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 20MHz
• Program Memory Size: 8kB
• Data RAM Size: 368 B
• Data RAM Type: SRAM
• Data ROM Size: 256 B
• Data ROM Type: EEPROM
• Operating Supply Voltage: 4 V to 5.5 V
• Maximum Operating Temperature: + 85 C
• Minimum Operating Temperature: -40 C
• Processor Series: PIC16
• Program Memory Type: Flash
• Number of ADC Channels: 8
• Number of I/Os: 33 I/O
• Number of Timers/Counters: 3 Timer
• Interface Type: I2C,SPI, UART
