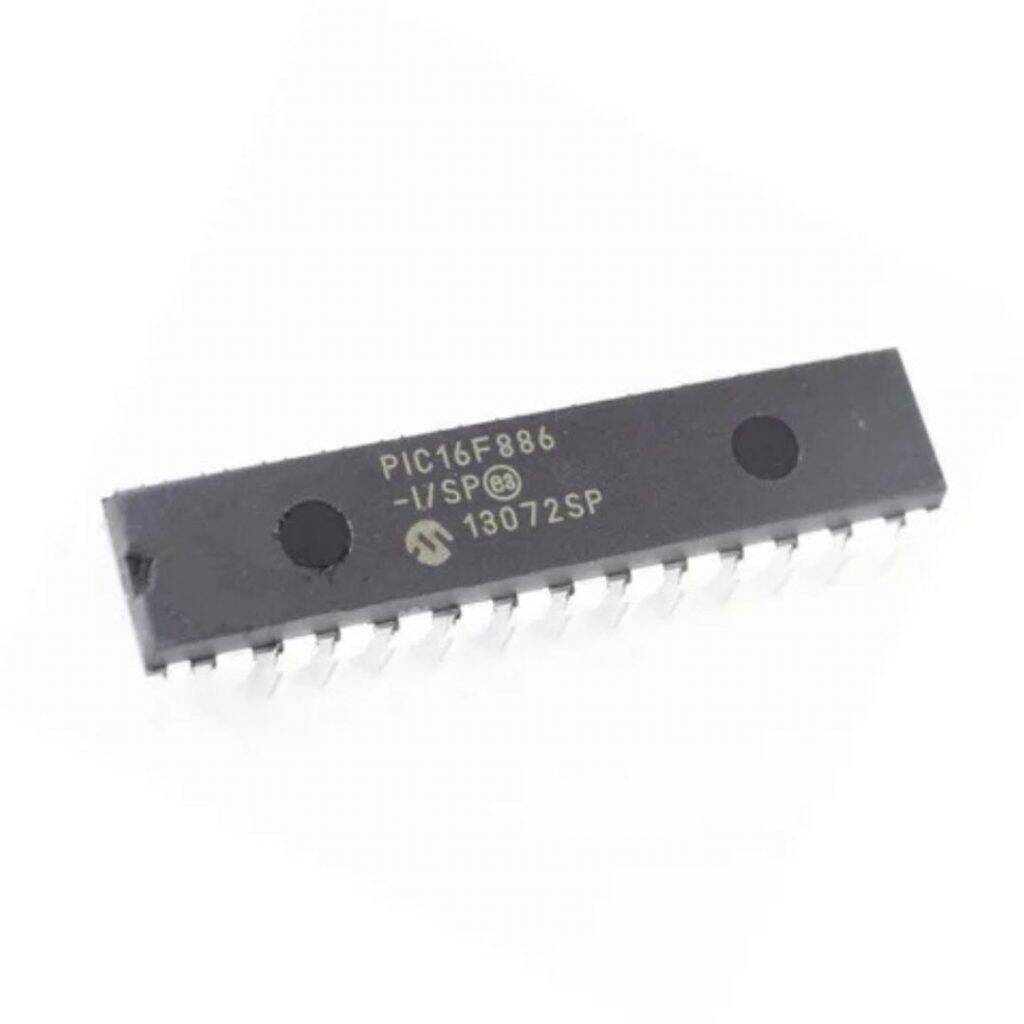

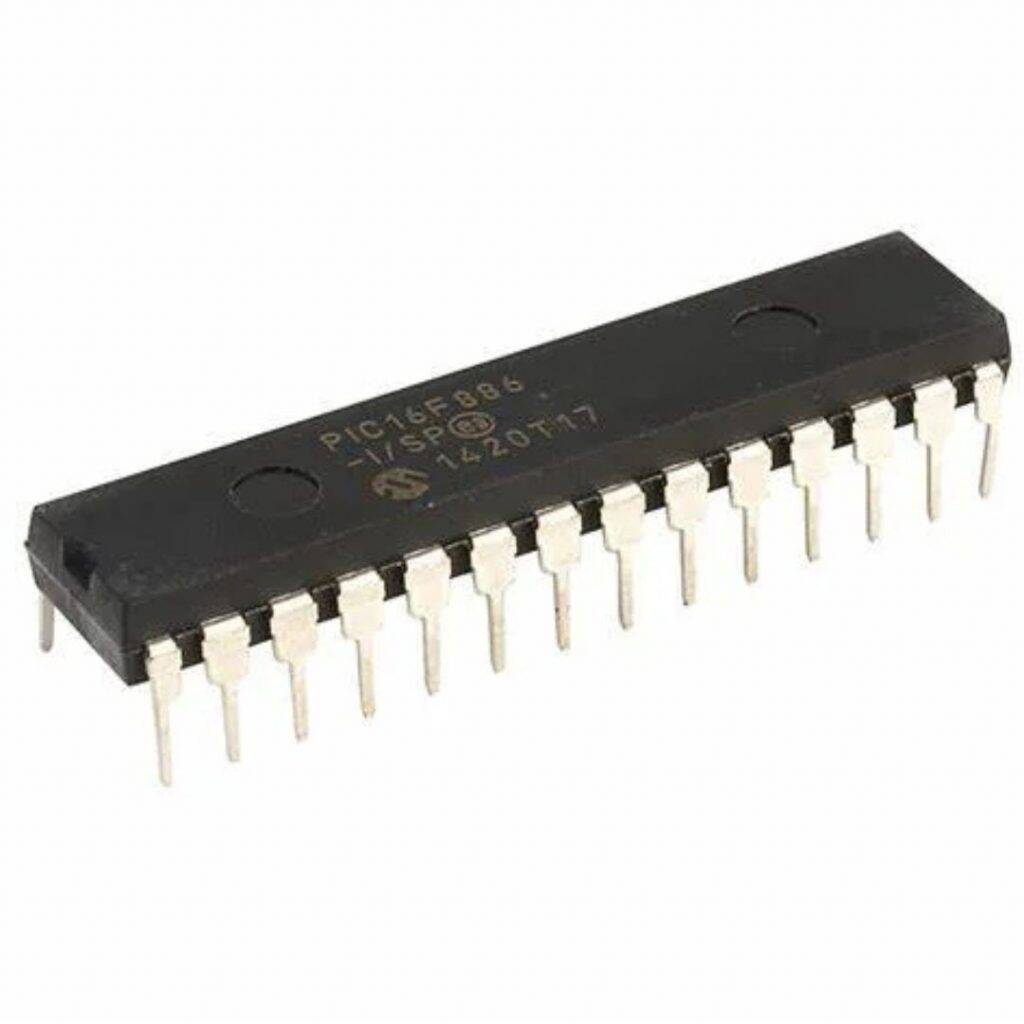

PIC16F886-I/SP Microcontroller (DIP-28)

Description: PIC16F886-I/SP Microcontroller (DIP-28)

The PIC16F886-I/SP is an 8-bit microcontroller from Microchip Technology, part of the PIC16F mid-range family. It offers a powerful RISC architecture, versatile peripherals, and energy-efficient operation, making it ideal for a wide range of embedded control and automation applications.

Encased in a 28-pin Dual In-Line Package (DIP), it’s perfect for prototyping, development boards, and breadboard use.

Key Features:

• Core: 8-bit PIC® MCU
• Architecture: Enhanced Mid-Range (14-bit instruction word)
• Operating Voltage: 2.0V to 5.5V
• Program Memory (Flash): 14 KB
• Data Memory (SRAM): 368 Bytes
• EEPROM: 256 Bytes
• I/O Pins: Up to 25 I/O pins
• Timers:
  • 3 Timers (Timer0, Timer1, Timer2)
• ADC: 10-bit Analog-to-Digital Converter with up to 14 channels
• Comparators: 2
• PWM Modules: 1 CCP (Capture/Compare/PWM)
• USART: 1 (for serial communication)
• SPI/I²C: MSSP module supports both SPI and I²C
• Watchdog Timer: Yes (with dedicated oscillator)
• Oscillator Options: Internal 8 MHz oscillator or external up to 20 MHz
• In-Circuit Serial Programming (ICSP): Supported
• Enhanced Capture/Compare/PWM (ECCP) module: Available
• Brown-out Reset, Power-On Reset, and Low Voltage Programming (LVP): Supported

Package Details:

• Package Type: DIP-28 (Dual In-line Package)
• Pin Count: 28 pins
• Mounting Type: Through-Hole
• Temperature Range: -40°C to +85°C (Industrial Grade)
• Suffix “I/SP”:
  • I = Industrial temperature range
  • SP = Plastic DIP package

Typical Applications:

• Embedded control systems
• Robotics and automation
• Sensor interfacing and data acquisition
• Power management and motor control
• Home and industrial automation
• Educational and prototyping projects

Package Include:

1 x PIC16F886-I/SP Microcontroller DIP-28
