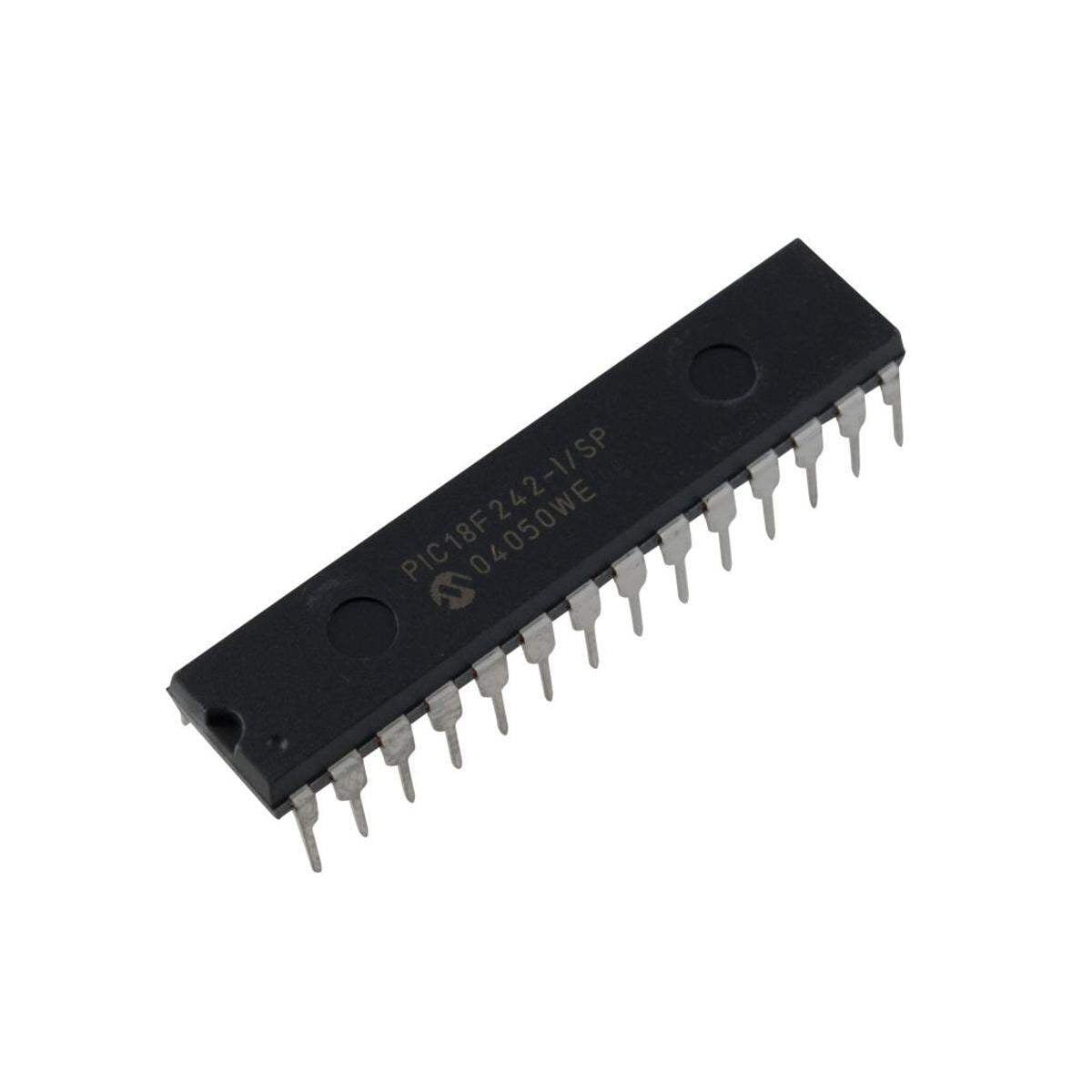

Description: PIC-18F242 28-pin Flash 8kbyte 40MHz Microcontroller

PIC18F242 PIC-18F242 PIC 18F242 Microcontrollers IC 8-Bit 40MHz 8KB Flash Microchip MCU DIP-28 28 Pin Dual In Line Package Chip Electrical Circuitry & Parts

This powerful 10 MIPS (100 nanosecond instruction execution) yet easy-to-program (only 77 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX, PIC16CXX and PIC17CXX devices and thus providing a seamless migration path of software code to higher levels of hardware integration. The PIC18F242 features a 'C' compiler friendly development environment, 256 bytes of EEPROM, Self-programming, an ICD, 2 capture/compare/PWM functions, 5 channels of 10-bit Analog-to-Digital (A/D) converter, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and Addressable Universal Asynchronous Receiver Transmitter (AUSART). All of these features make it ideal for manufacturing equipment, instrumentation and monitoring, data acquisition, power conditioning, environmental monitoring, telecom and consumer audio/video applications.

Features:

28-pin Low Power Microcontroller

Flash Program Memory: 8 kbytes

EEPROM Data Memory: 256 bytes

SRAM Data Memory: 768 bytes

I/O Pins: 23

Timers: One 8-bit / Three 16-bit

A/D Converter: 10-bit Five Channel

PWM: 10-bit Two Modules

SSP: SPI and I²C Master/Slave Support

AUSART: Addressable Full Duplex Operation

External Oscillator: up to 40MHz

Package Include:

1 x PIC-18F242 28-pin Flash 8kbyte 40MHz Microcontroller
