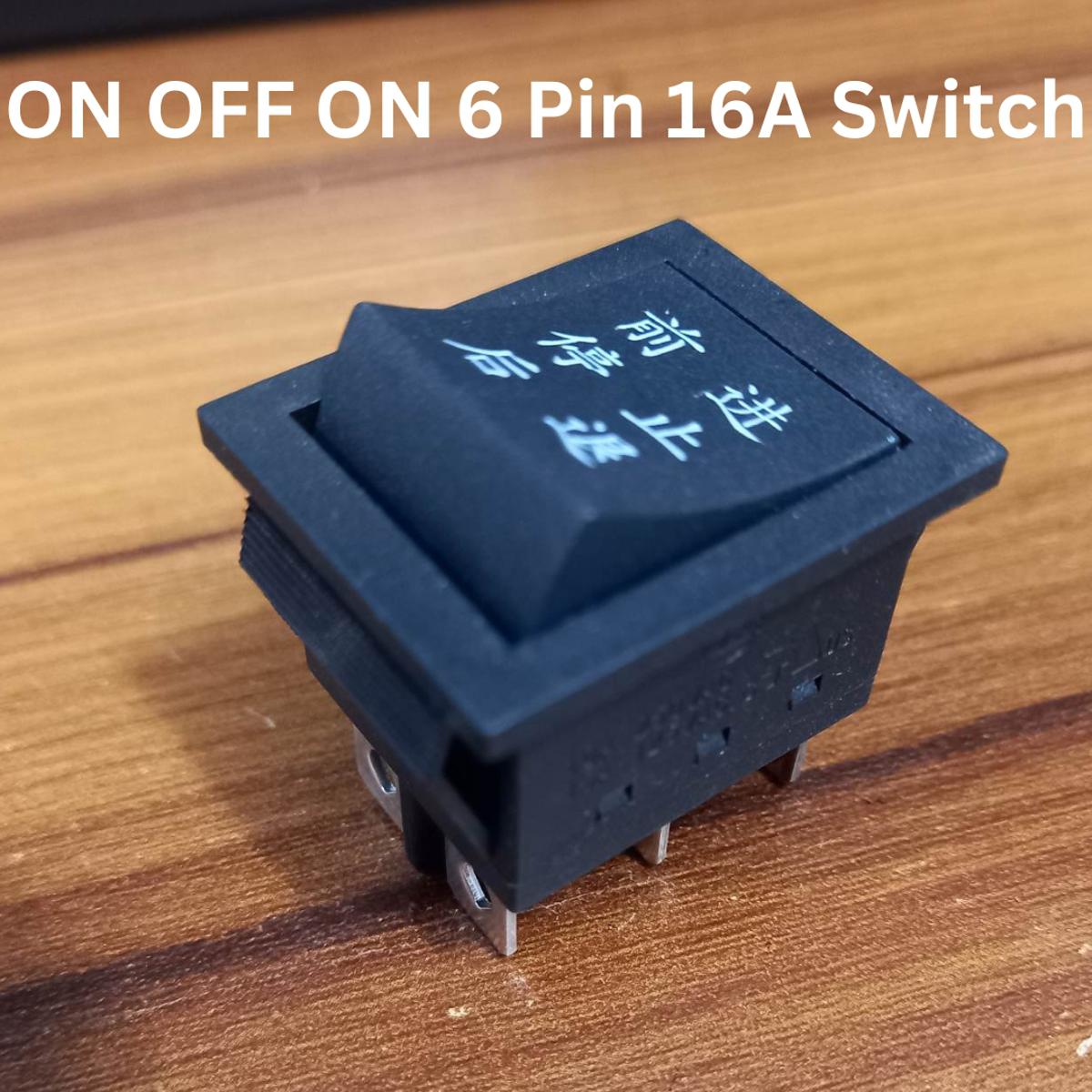

Description: Power Trigger Switch 6 Pin AC 250V 16A On-Off-On DPDT

High quality 15Amp single pole rocker switch from leading manufacturer Rleil to fit the standard 30mm x 11mm panel cut out. 15A 250V AC rating to suit more demanding applications. On Off On, single pole double throw (SPDT) function. This 15Amp rocker switch has a black body and black rocker. Carries ENEC (European) and UL (American) approvals and complies with RoHS.

​Features:

• On-off-on, on-on available
• Non-illuminated/illuminated
• Quick connecting terminals
• Plastic housing and actuator
• Sealed to protection level IP67
• Suitable for outdoor application

Specification:

• Terminal: 6 pins (ON-OFF-ON)
• High Current Load
• Rating: 15A/250V ; 20A/125V
• Color: Black
• Mechanical Life: >50000 Cycle
• Electrical Life: >10000 Cycle
• Contact Resistance < 50MΩ
• Insulations Resistance >1000MΩ
• Withstand Voltage >1500V/Minute
• Ambient Temperature: -10°C~+85°C
• Storage Temperature: -25°C~+85°C
• Dimensions: 30x27x22

• Terminal: 6 pins (ON-OFF-ON)
• High Current Load
• Rating: 15A/250V ; 20A/125V
• Color: Black
• Mechanical Life: >50000 Cycle
• Electrical Life: >10000 Cycle
• Contact Resistance < 50MΩ
• Insulations Resistance >1000MΩ
• Withstand Voltage >1500V/Minute
• Ambient Temperature:  -10°C~+85°C
• Storage Temperature:  -25°C~+85°C
• Dimensions: 30x27x22
