Product Parameters: xh-m173.

Product model: M173.

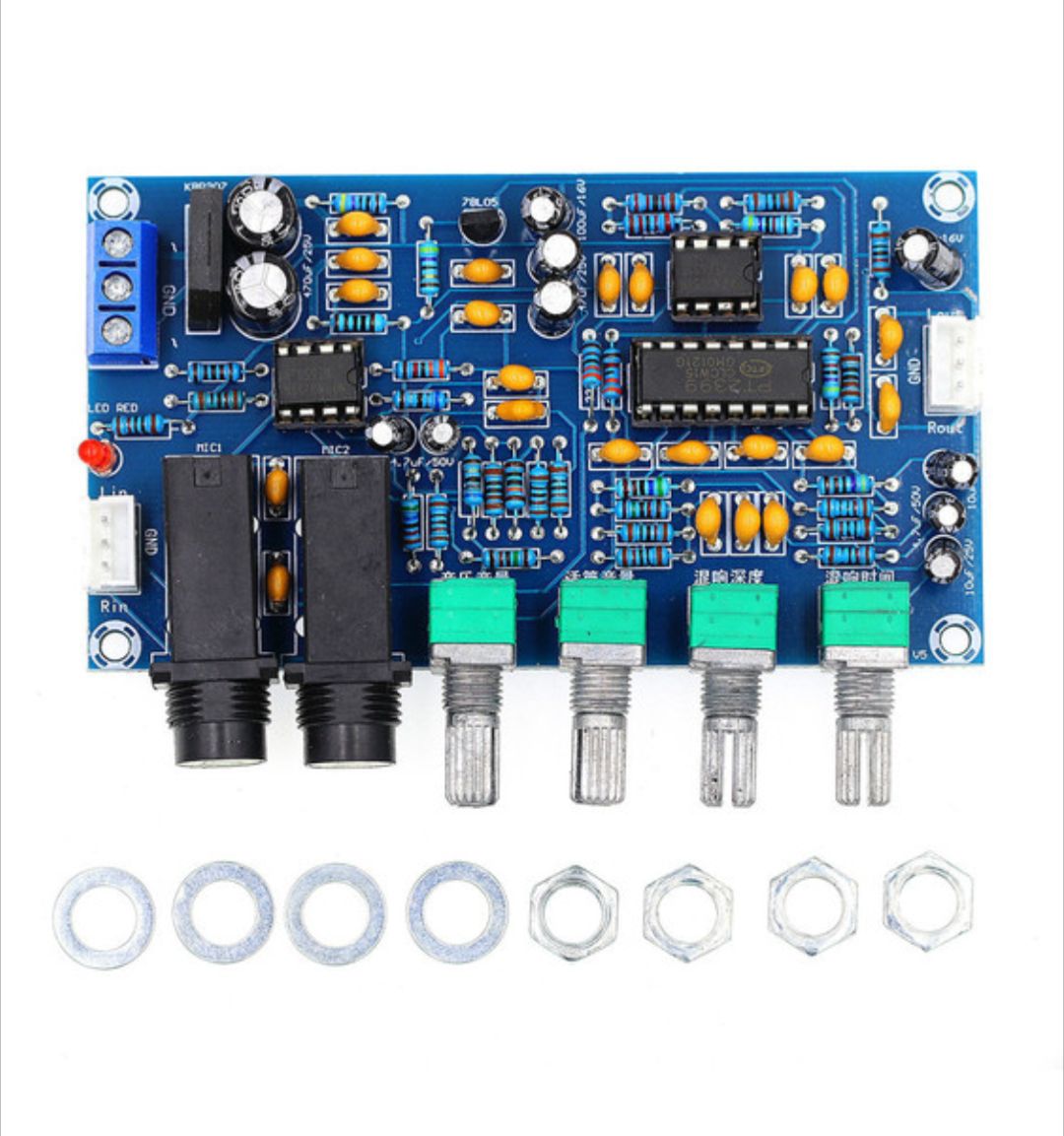

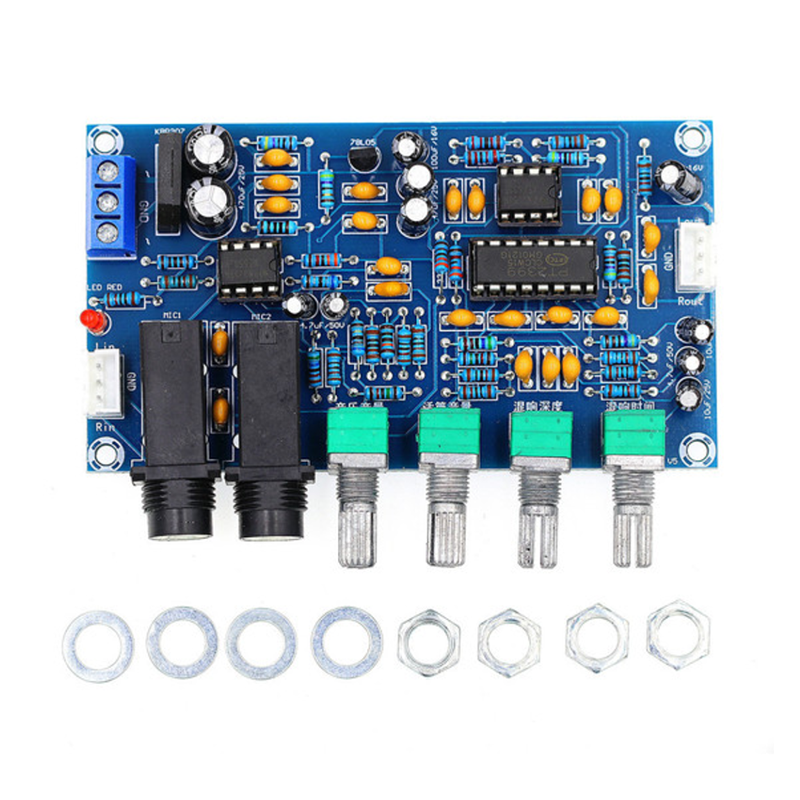

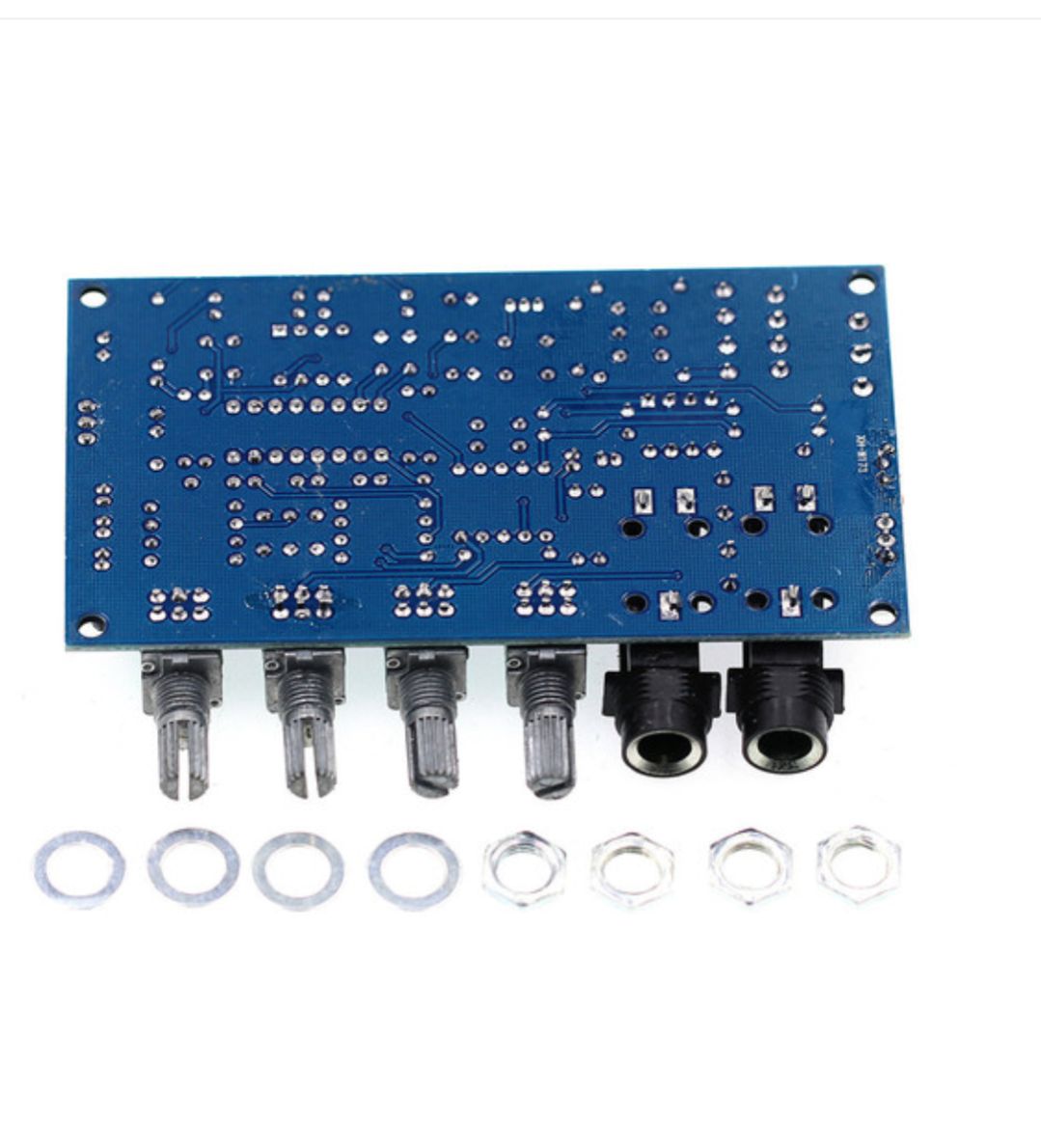

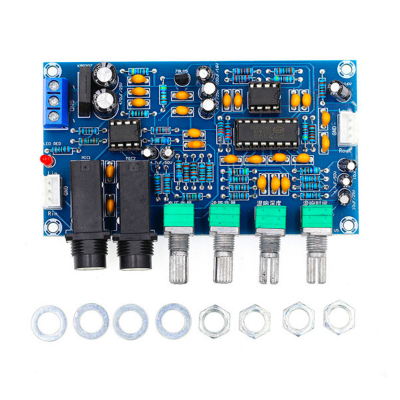

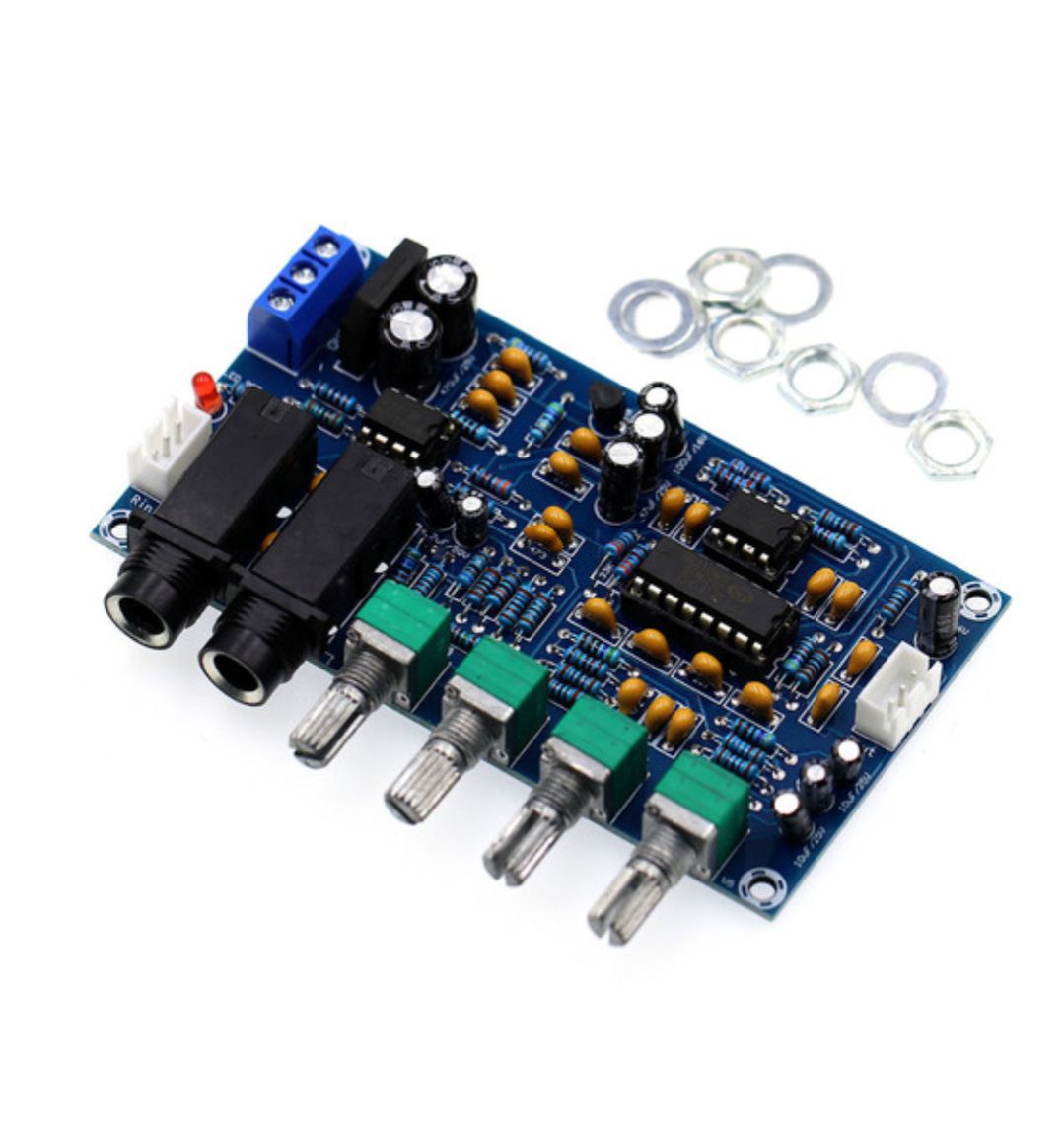

Product Name: Karaoke Reverb Board.

Output load: need after stage power amplifier.

Chip selection: dual power supply AC12V.

Size: 100*57*17MM.

Product Wiring: Lin GND Rin: respectively indicates the left channel in the audio input signal, the ground line, the right channel Lout GND Rout: respectively indicates the left channel in the audio output signal, the ground line, the right channelMICI MIC2: used to connect the microphone, the connector of the microphone can be directly plugged in.Music volume knob: used to adjust the sound quality of background music (accompaniment)Microphone volume knob: used to adjust the size of the microphone soundReverb depth knob: used to adjust the size of the microphone soundReverberation time knob: used to adjust the playback time of the microphone soundPackage.

includes:1*Karaoke Reverb BoardNote:1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color which is showed on the pictures.2.Please forgive 1 cm/0.39"-3 cm/1.18" measuring deviation due to manual measurement.

Warranty: 6 Months Seller Warranty.
