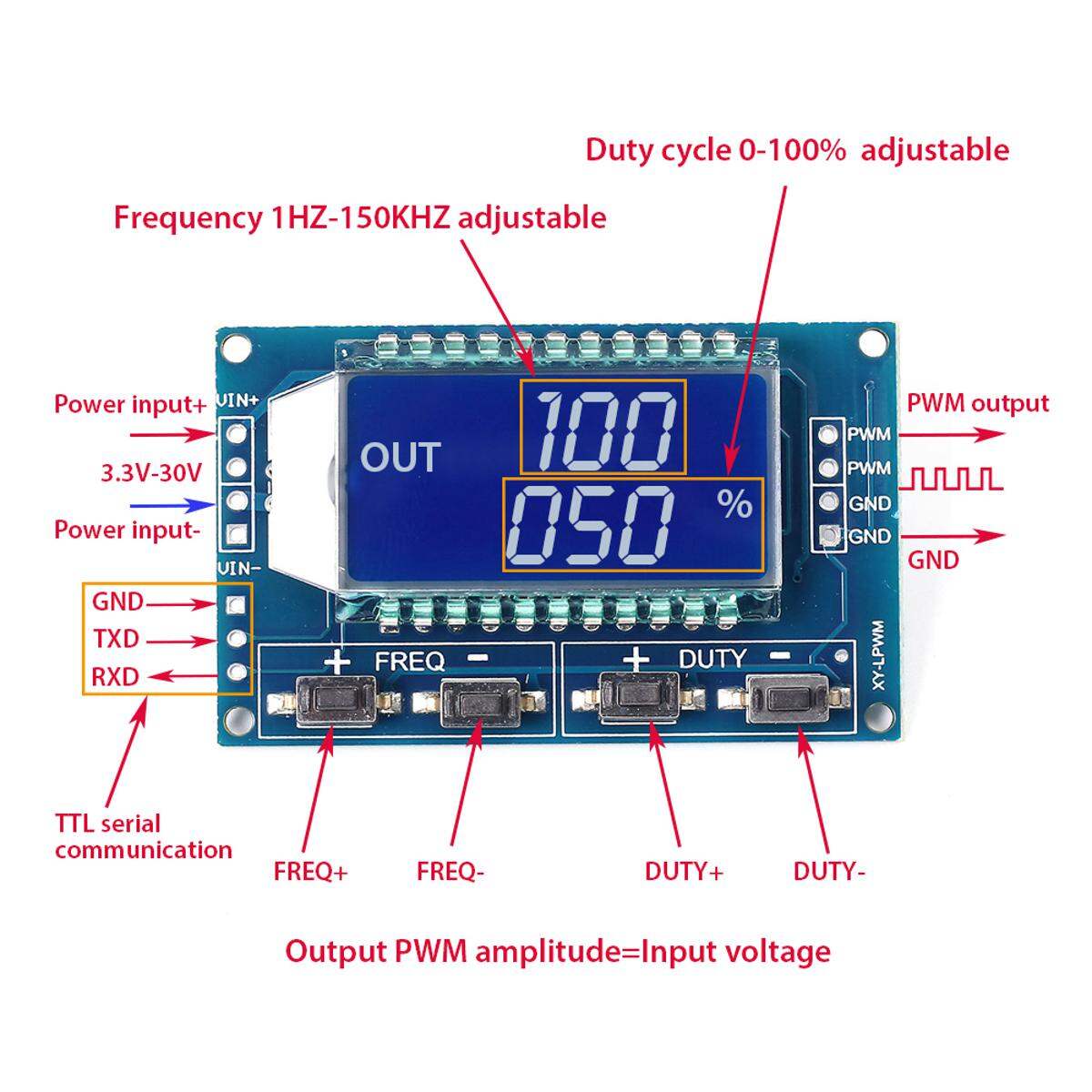

PWM Generator Pulse Frequency Duty Cycle Adjustable Module LCD Display 3.3V-30V 1Hz-150Khz PWM Board Module

Descriptions: PWM Pulse Frequency Duty Cycle Adjustable Module Signal Generator LCD Display

The module has four independent keys, used to set the frequency and duty cycle, support short press (increase or decrease a unit) and long press (fast increase or decrease), very simple, set the parameters automatically save, power failure Lost.

Signal Generator PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display 3.3V-30V 1Hz-150Khz PWM Board Module

Features:

• LCD display frequency and duty cycle, very clear, PWM output can be set to the frequency and duty cycle.
• Wide frequency range, high precision.
• Serial communication, TTL level.
• The module has four independent keys, used to set the frequency and duty cycle, support touch (increase or decrease a
• unit) and long press (fast increase or decrease), set the parameters automatically save, power down not lost.

Parameter settings:

• The module has four independent keys, used to set the frequency and duty cycle, support short press (increase or decrease a unit)and long press (fast increase or decrease), very simple, set the parameters automatically save, power failure Lost.

Module parameters:

• Working voltage: 3.3 ~ 30V;
• Frequency range: 1Hz ~ 150KHz;
• Frequency accuracy: the accuracy in each range is about 2%;
• Signal load capacity: the output current can be about 5 ~ 30ma;
• Output amplitude: PWM amplitude equal to the supply voltage;
• Ambient temperature: -20 ~ +70 ℃.
• Two Chanel

Scope of application:

• Used as a square wave signal generator, generate square wave signal for experimental development and use;
• Used to generate a square wave signal that controls the motor driver;
• generate adjustable pulse for MCU use;
• Generate adjustable pulse, control related circuit (PWM dimming speed and other applications)

Serial Port Control:

• Communication standards: 9600 bps data bits: 8
• Stop bit: 1
• Check digit: none
• Flow control: none

1. set frequency of PWM

• F101: set frequency to 101HZ (001 to 999)
• F1.05: set frequency to 1.05KHZ (1.00 to 9.99)
• F10.5: set frequency to 10.5KHZ (10.0 to 99.9)
• F1.0.5: set frequency to 105KHZ (1.0.0 to 1.5.0)

2. set PWM duty cycle

• DXXX: set PWM duty cycle to XXX: (001 to 100)
• Such as D050, set PWM duty cycle is 50%

3.read the set parameters

• Send a “read” string to read the set parameters.
• Setup successfully return: Down;
• Setup failed to return: FALL.

Package included:

• 1 x PWM Pulse Frequency Duty Cycle Adjustable Module
