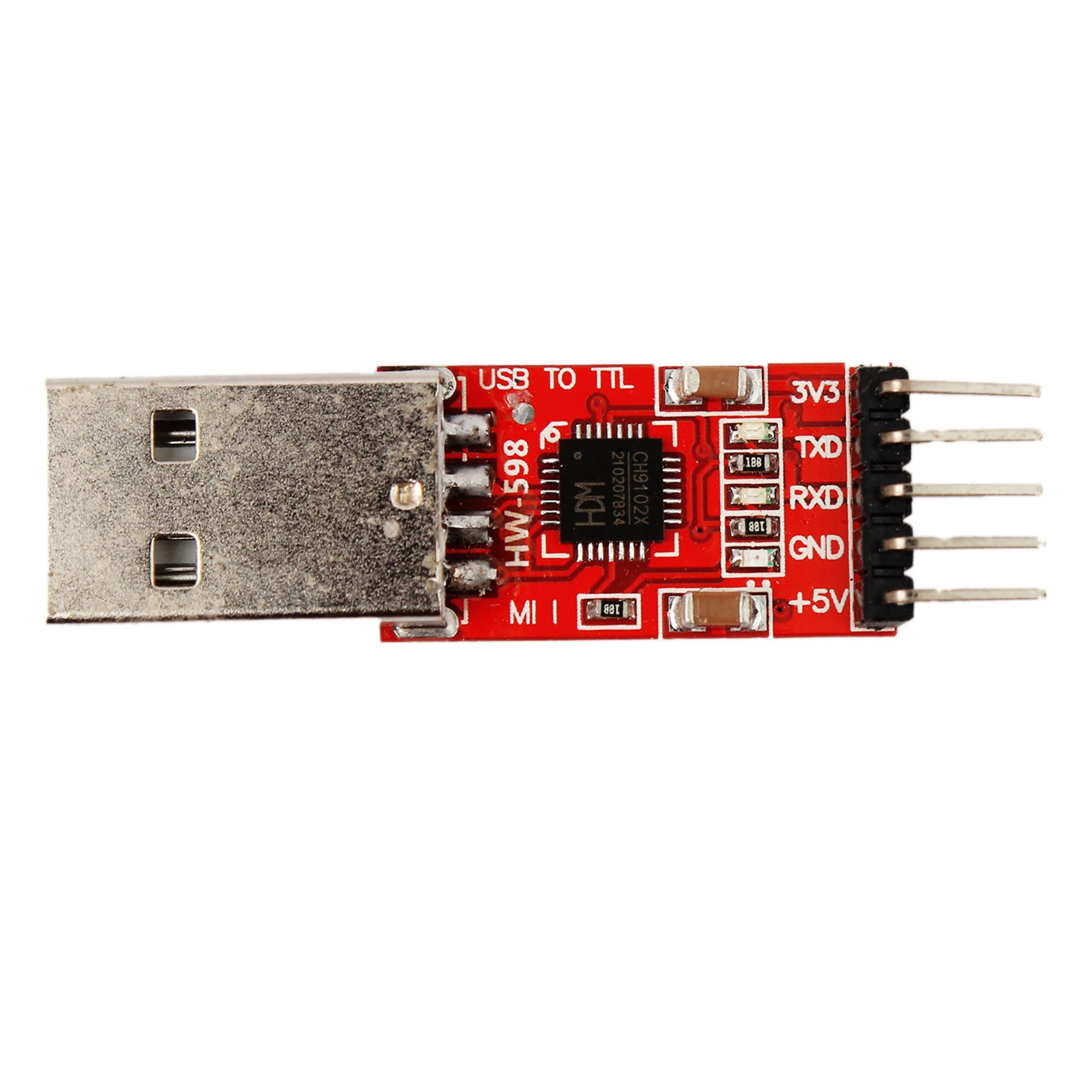

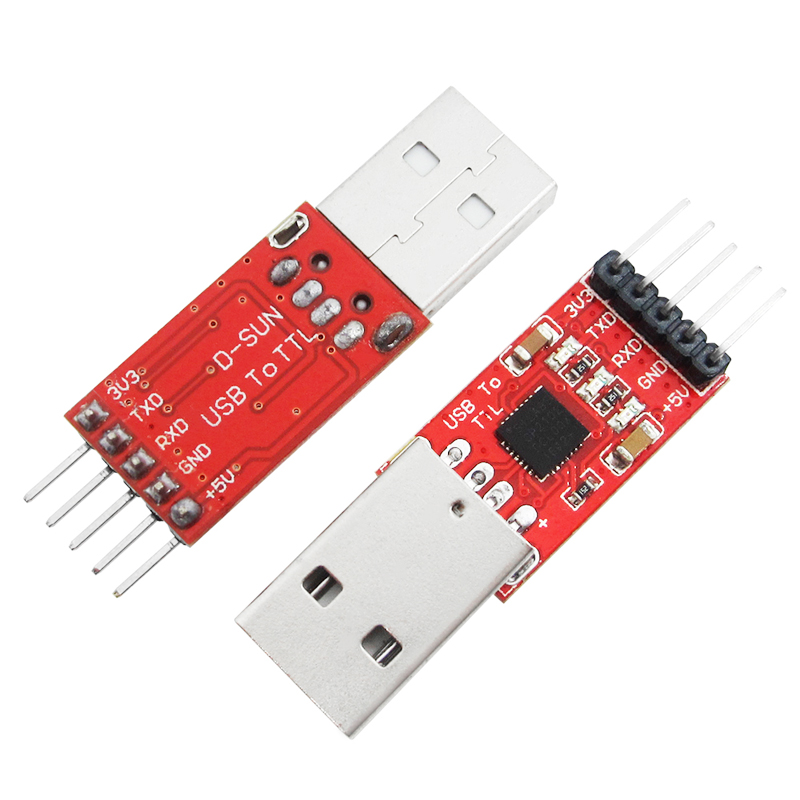

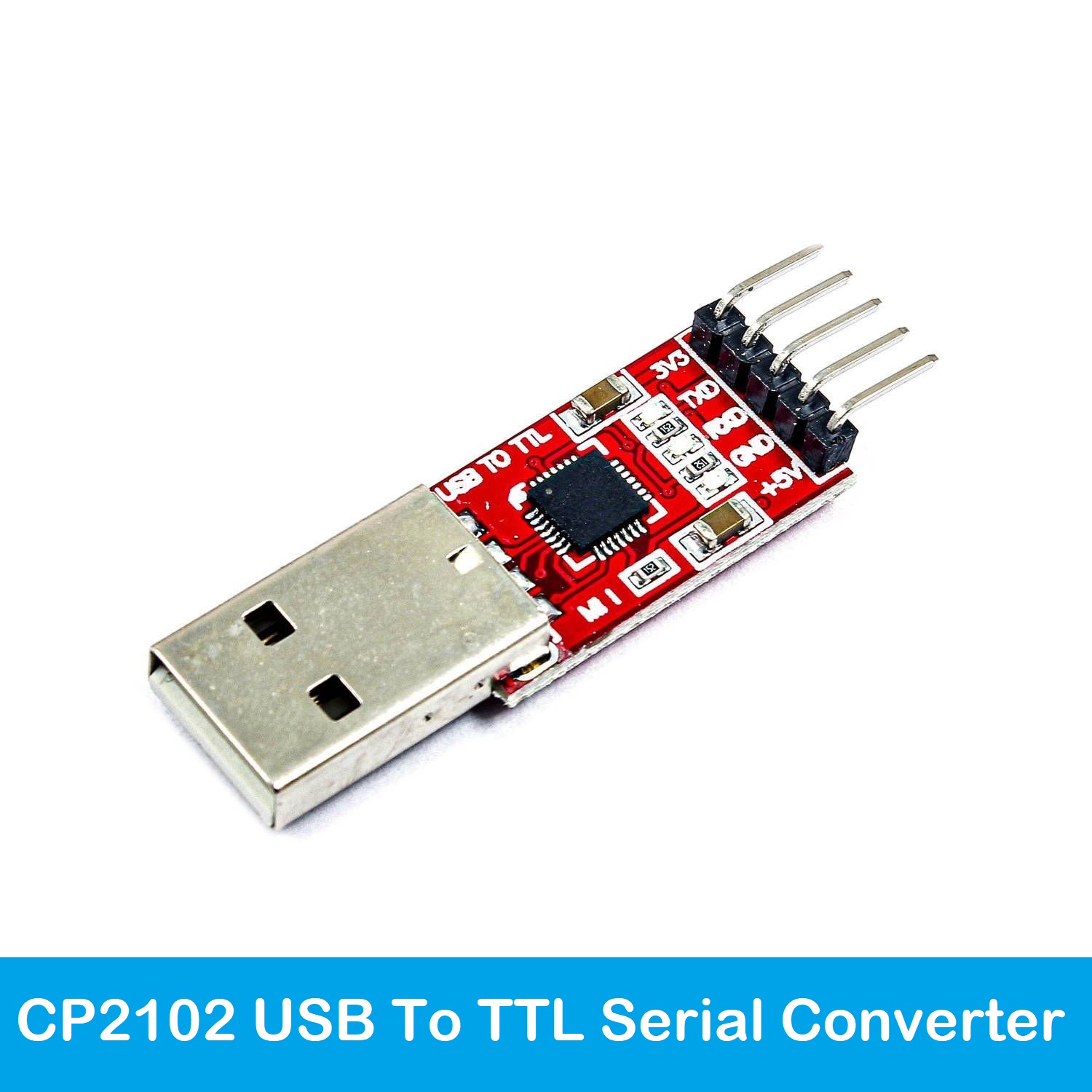

Description: CP2102 USB 2.0 to TTL UART Module

CP2102 USB 2.0 to TTL UART Module 5 Pin Serial Converter STC Replace FT232 Module 5pin cables STC Wholesales.

Features:

• 100% New and High Quality
• Stable and reliable chipset CP2102
• USB specification 2.0 compliant with full-speed 12Mbps.
• Standard USB type A male and TTL 5pin connector. 5pins for 3.3V,TXD,RXD,GND & 5V
• All handshaking and modem interface signals
• Baud rates: 300 bps to 1.5 Mbps.
• Byte receive buffer; 640 byte transmit buffer.
• Hardware or X-On/X-Off handshaking supported.
• Event character support Line break transmission.
• USB suspend states supported via SUSPEND pins

Specifications:

• Temperature Range: -40Cto +85C
• Supports windows vista/xp/server 2003/200,Mac OS-X/OS-9,Linux
• main color: Red

Size Refernece : Length(Not Included USB): 30 mm

Note:

• Due to hand measure, the size may have 1-4 cm error
• Due to Different Monitor, the color may have difference
• Due to long shipping, the item may damage in transit, if the item damage, pls contact us firstly immediately before leave feedback, thanks for your understanding

Documents:

• cp2102

Package Included:

• 1 x CP2102 USB 2.0 to TTL UART Module

• 100% New and High Quality
• Stable and reliable chipset CP2102
• USB specification 2.0 compliant with full-speed 12Mbps.
• Standard USB type A male and TTL 5pin connector. 5pins for 3.3V,TXD,RXD,GND & 5V
• All handshaking and modem interface signals
• Baud rates: 300 bps to 1.5 Mbps.
• Byte receive buffer; 640 byte transmit buffer.
• Hardware or X-On/X-Off handshaking supported.
• Event character support Line break transmission.
• USB suspend states supported via SUSPEND pins
