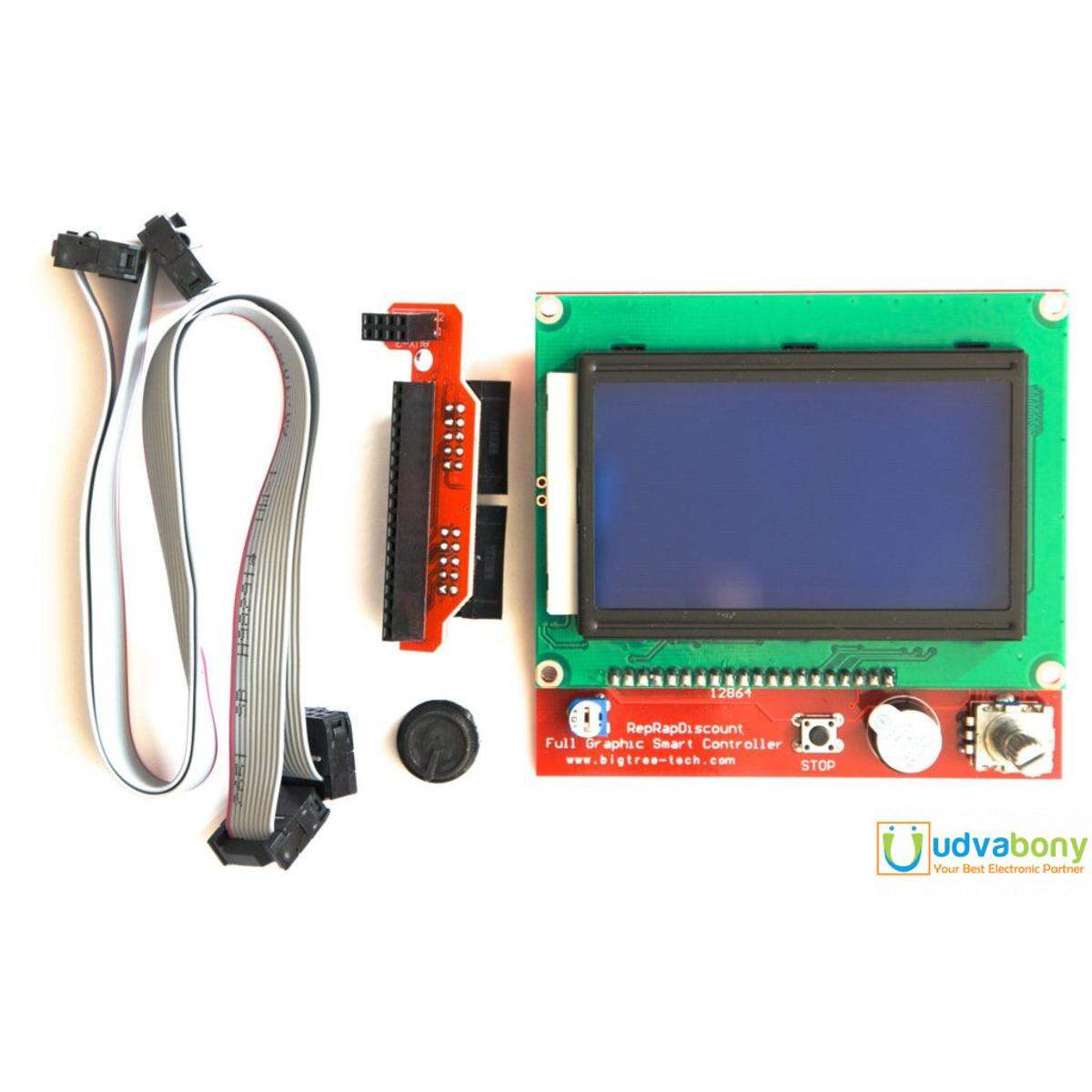

Description: RAMPS1.4 LCD 12864 LCD Control Panel 3D Printer Smart Controller Monitor Motherboard Full Graphics 128x64 LCD Display 3D Printer Parts
This full graphic Smart Controller contains a SD-Card reader, an rotary encoder and a 128 x 64 dot matrix LCD display. You can easy connect it to your Ramps board using the "smart adapter" included. After connecting this panel to your Ramps you don't need your pc any more, the Smart Controller supplies power for your SD card. Further more all actions like calibration, axes movements can be done by just using the rotary encoder on the Smart Controller. Print your 3D designs without PC, just with a g-code design stored on the SD card.
The3D printer 128×64 Smart LCD controller for ramps 1.4 contains an SD-Card reader, a rotary encoder and a 128×64LCD display. You can easily connect it to yourRAMPSboard using the “smart adapter”.
Compares to the2004 Smart LCDController With Adapter, this128×64screen can display much more information, which would help for you run the3D printerwithout a computer.
Specifications:
- RAMPS 1.4 LCD 12864 intelligent controller.
- With an SD card base on back.
- Large screen display 128×64 LCD (3.2″)
- SD card slot at the back, able to directly select a file and print
- The product comes encoder parameter adjustment can be achieved, and the file selection print
- Plug & play on the RAMPS, but need to modify the firmware to support.
- LCD 12864 Smart Controller fully supported by Marlin Firmware.
Features:
- Large screen display 128×64 LCD (3.2″)
- SD card slot at the back, able to directly select a file and print
- The product comes encoder parameter adjustment can be achieved, and the file selection print
- Plug & play on the RAMPS, but need to modify the firmware to support.
- LCD 12864 Smart Controller fully supported by Marlin Firmware.
- Main Smart RAMPS1.4 LCD12864 intelligent controller
- LED background light control circuit
- This controller is 100% compaitble with original design.
- LED background light control circuit, a small function of intelligent controller, With pin short time to decide on all LED turn or steering 30 seconds
- You can turn on the light time to do long or short form of the adjustment TRIMM R4100K from 10 seconds to 2 minutes If you use a print job at night and parts department, which means that the new modifications LCD backlight would be suitable for you
Package Included:
- 1 x LCD12864 Controller
- 1 x Switch Board
- 2 x 30cm Cable
