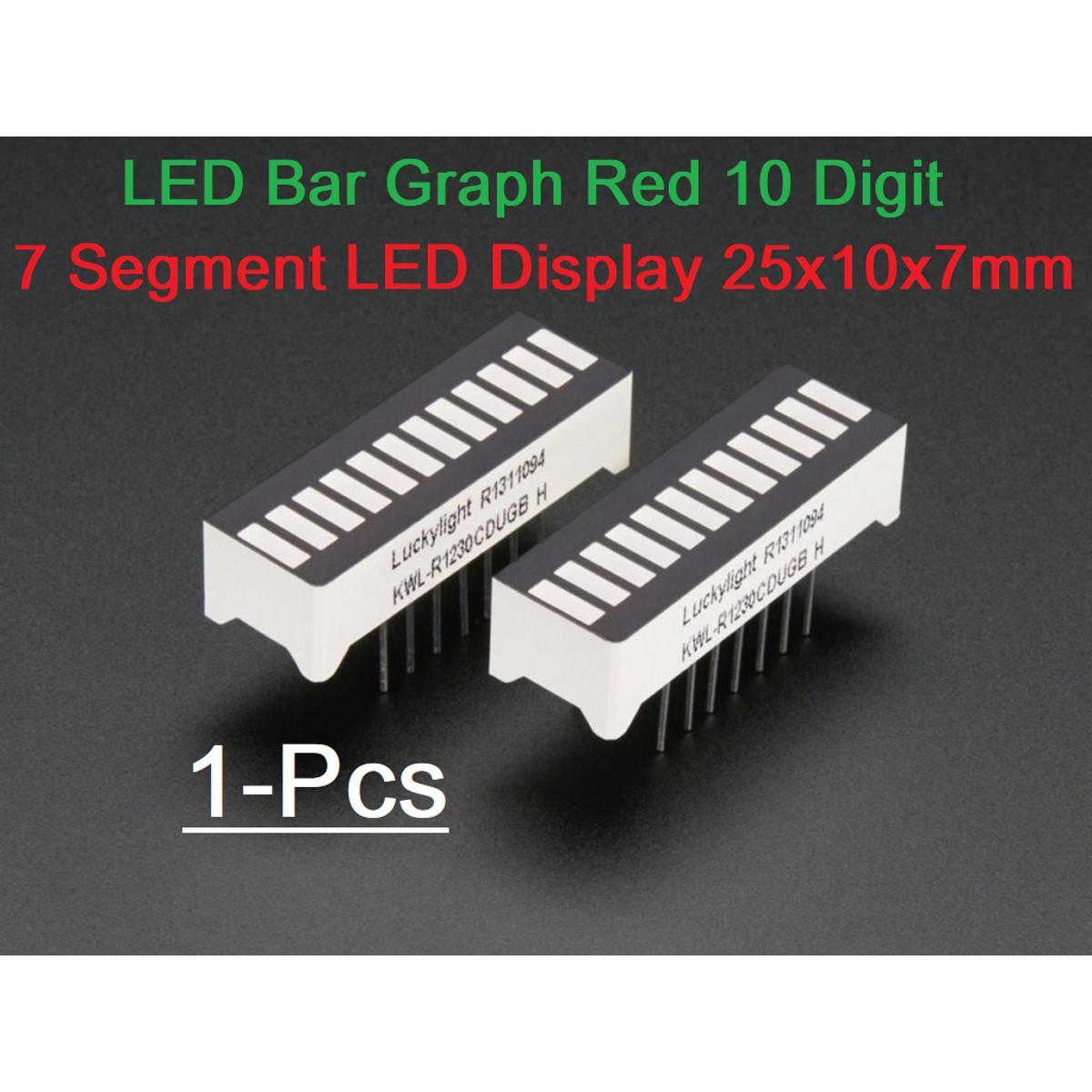

Description: 10 Digit LED Bar Graph Display

This is a multipurpose 10 segment LED bar graph. They are handy and easy to use both for prototyping and for finished products. Basically, 10 individual red LEDs are mounted together to form this product, where each LED has a separate anode and cathode connection. Grove – LED Bar is comprised of a 10 segment LED gauge bar and an MY9221 LED controlling chip. It can be used as an indicator for remaining battery life, voltage, water level, music volume or other values that require a gradient display. There are 10 LED bars in the LED bar graph: one red, one yellow, one light green, and seven green bars. Demo code is available to get you up and running quickly. It lights up the LEDs sequentially from red to green, so the entire bar graph is lit up in the end. Want to go further? Go ahead and code your own effect.

Applications:

• Audio equipments
• Instrument panels
• Digital readout display
• Signal strength display
• Power status display
• Art display

Specifications:

• Forward Current : 25 mA (each segment)
• Reverse Voltage: 5 V (Maximum)
• 10 segment bar
• Bright red color
• Standard size for industrial use
• Low power consumption

Package Included:

• 1 X 10 Digit LED Bar Graph Display

• Forward Current : 25 mA (each segment)
• Reverse Voltage: 5 V (Maximum)
• 10 segment bar
• Bright red color
• Standard size for industrial use
• Low power consumption
