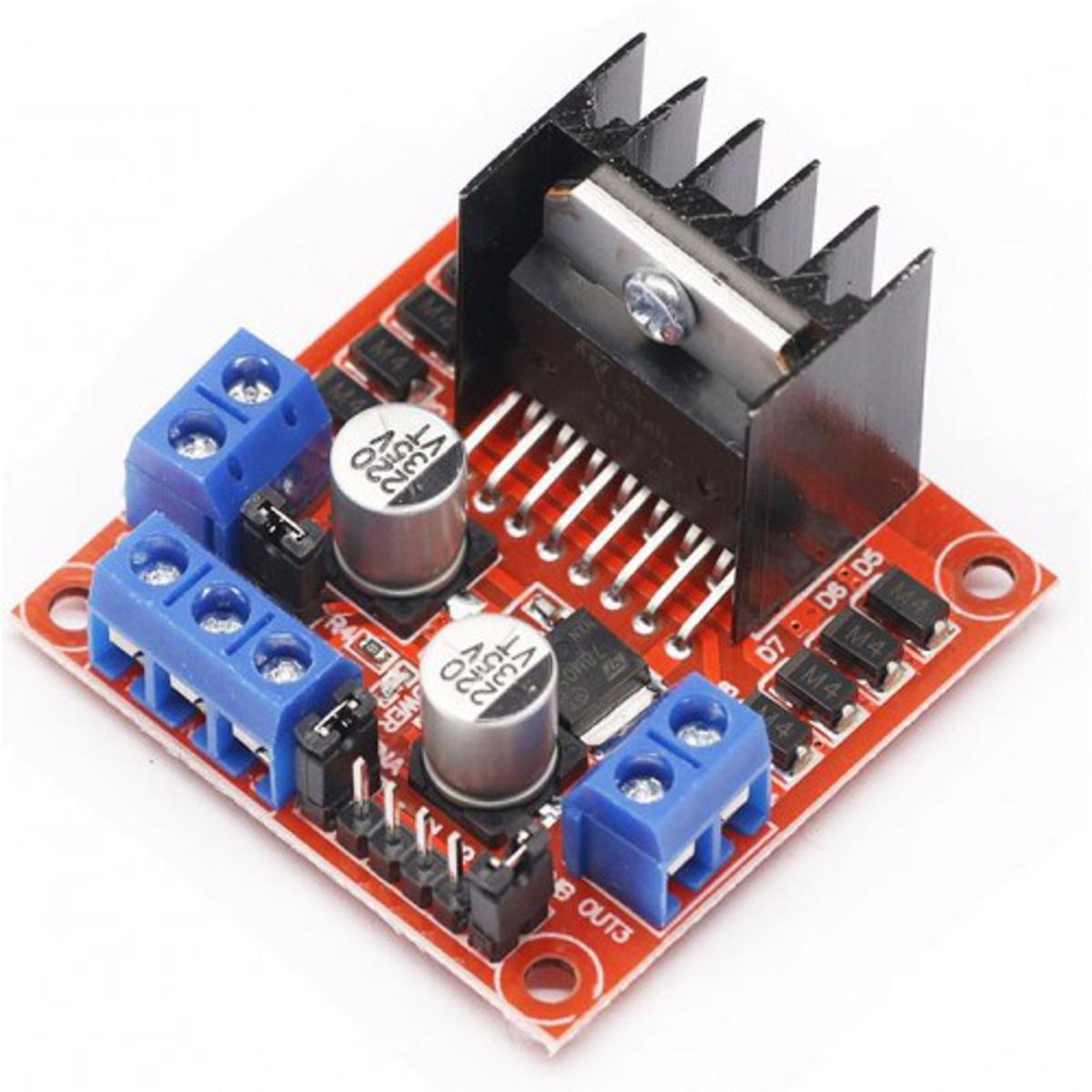

Description: L298N DC Motor Driver Red Color Module

High working power to 46v,large current can reach 3A MAX and continue current is 2A, power to 25w. Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors. Built-in 78M05,get power from drive power,however, when drive power over12V, please use the external 5v power as power supply. Large capacity filter capacitance,afterflow protection diode, more stable and reliable.

Specification:

• Chip: L298N
• Logic voltage: 5V
• Logic current 0mA-36mA
• Storage Temperature: -20 ℃ to ℃ to +135
• Operating mode: H-bridge driver (dual)
• Drive voltage: 5V-35V
• Drive current: 2A (MAX single bridge)
• Maximum power: 25W
• Dimensions: 43x43x27mm

Features:

• Driver chip: L298 dual H-bridge driver chip.
• Terminal driver part of the supply area VMS: +5 V ~ +35 V.
• Drive part of the peak current Io: 2A / Bridge.
• Logical part of the terminal power supply range Vss :4.5-5.5 V.
• Logical part of the operating current range: 0 ~ 36mA.
• The control signal input voltage range: 4.5-5.5V low 0V high.
• Maximum power consumption: 20W.
• Storage temperature: -25 ~ +130.

Applications:

• Motor driver Circuit.
• Robot rover motor control.
• DIY projects requiring motor driver.

Documents:

• Control DC Motors + Stepper motors using the L298N

Package include:

• 1x L298N DC Motor Driver Red Color Module

• Module name : dual H bridge motor drive module
• Work mode : H bridge drive (double road)
• Main control chip : L298N
• Logical voltage : 5V
• Drive voltage : 5v-35v
• Logical current : 0mA-36mA
• Driving current : 2A(MAX single bridge)
• Maximum power : 25W
• Weight : 30 g
• Peripheral dimensions : 43*43*27mm
