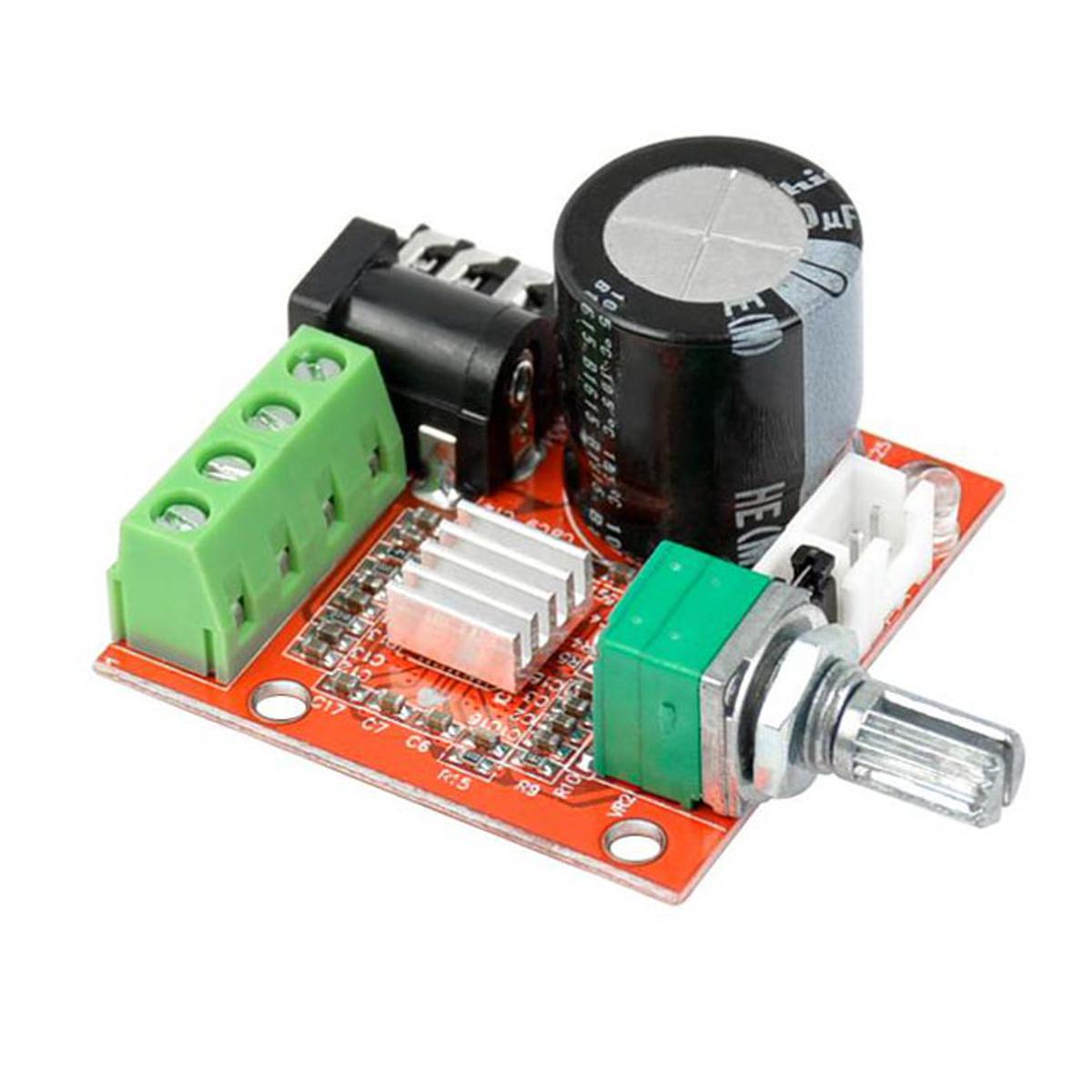

Description: PAM8610 2-Channel 2x10W Digital Audio Stereo Amplifier Module Board

The power amplifier circuit board designed using the official standard, the chip uses a selection of US imports original Long ding micro Class D amplifier chip. Good product chip is necessary and the majority of music lovers to share, this is our consistent philosophy! The amplifier with ultra-high efficiency, large power, in the case of 12V power supply can output 10W + 10W of power, the chip without fins, but also with overheating, over-current protection function, the function can be said to be very powerful.

Modification:

• Analog Microelectronics America’s original PAM8610 chip as amplifier chip, power can reach 10W + 10W.
• As pure class D amplifier board power requirements is relatively high, the exclusive use of the power amplifier board enthusiast 2200UF capacitor filter, the elimination of exchange voice, without interference, pure sound quality.
• Using automatic placement machine production, the board is more beautiful.
• Strip 5.5X2.5 standard power outlet, power input is very convenient. (Positive outside and negative inside)

Features:

• Work: Class D (PWM modulation)
• Chip selection: PAM8610
• Scope of supply: DC6 ~ 15V
• Keep pushing Voltage: DC12V
• Output Power: 10W * 2
• Channel Type: Dual Channel
• SNR: 90dB
• Frequency response: 20Hz-15KHz
• Quiescent current: 20MA(DC 12V)
• Input Impedance: 20M
• Harmonic distortion: <0.1 percentage
• Rated output power: 10w+10w (8Ω)
• Board size: length 40mmX width 40mmX height 19m

Package Includes:

• 1 x Hi-Fi PAM8610 Audio Stereo Amplifier Board Module Dual D Class Channel 2x10W 12V Mini Stereo Digital Audio Amplifier Circuit

• Work: Class D (PWM modulation)
• Chip selection: PAM8610
• Scope of supply: DC6 ~ 15V
• Keep pushing Voltage: DC12V
• Output Power: 10W * 2
• Channel Type: Dual Channel
• SNR: 90dB
• Frequency response: 20Hz-15KHz
• Quiescent current: 20MA(DC 12V)
• Input Impedance: 20M
• Harmonic distortion: <0.1 percentage
• Rated output power: 10w+10w (8Ω)
• Board size: length 40mmX width 40mmX height 19m
