Description: 50W 220 Ohm Wirewound Aluminum Housed Resistors 50Watt Aluminum Clad Power Metal Shell Case Wirewound Resistor

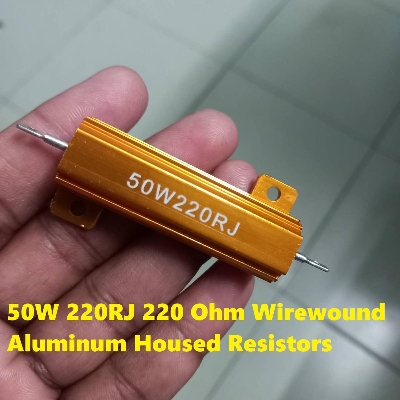

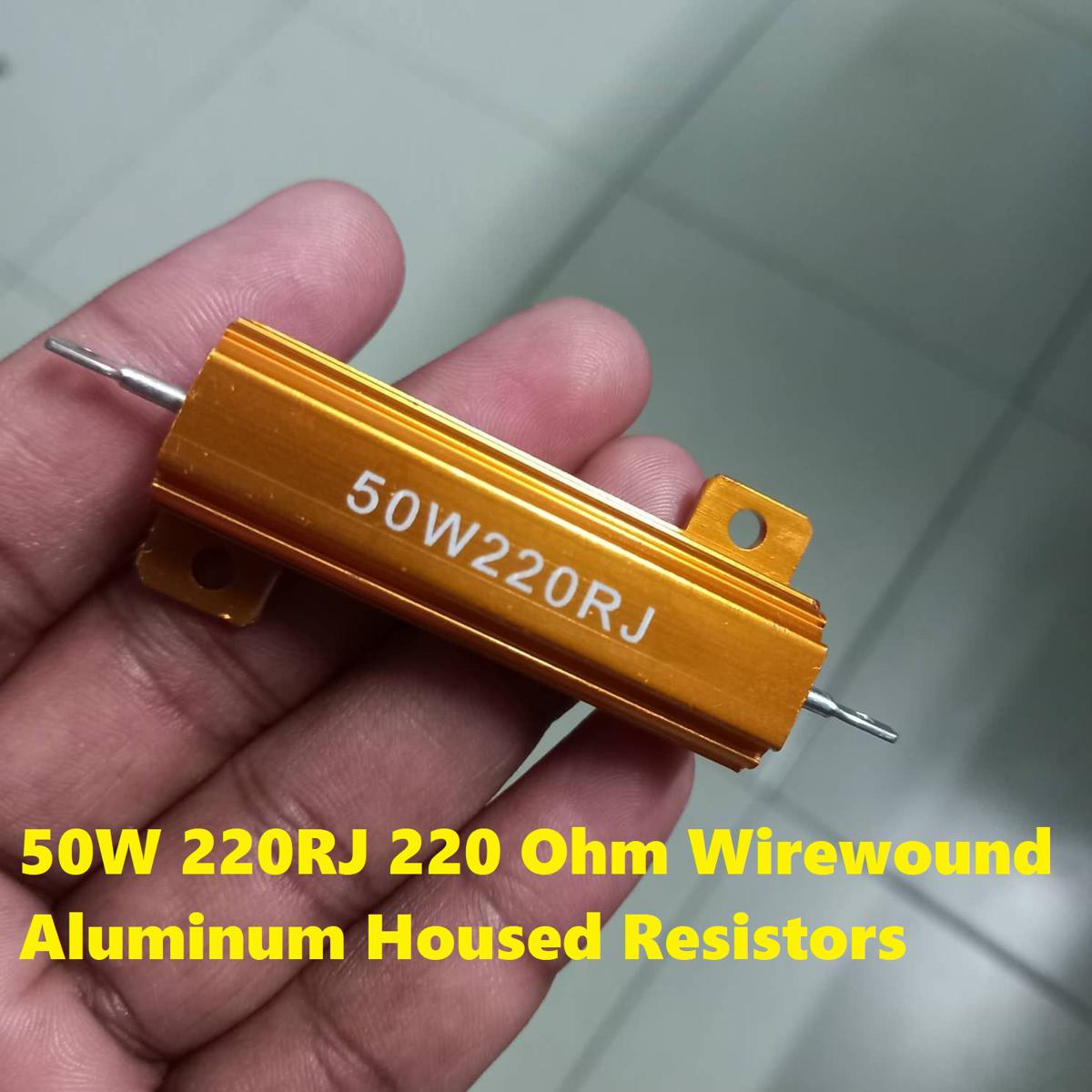

50W 220RJ 220 Ohm Wirewound Aluminum Housed Resistors 50Watt Aluminum Clad Power Metal Shell Case Wirewound Resistor 220 Ohm 5% Tolerance Fixed Resistor

The WH series from Welwyn are 50W axial leaded wirewound resistors with solder-dipped copper clad steel terminations. Cap and lead assemblies are fitted to a high purity ceramic substrate. The resistive element is wound onto the substrate and welded to the caps. The wound rod is then moulded and fitted into aluminium housing to give optimum stability and reliability. The resistor is legend marked with type reference, resistance value and tolerance which will withstand all accepted industrial cleaning fluids and values are marked in accordance with IEC 62. The aluminium housed wirewound resistor is suitable for severe environments and excellent thermal conductivity to heatsink. Typically used at high power applications.

Aluminium clad wire wound resistor intended for high power applications. Designed for chassis mounting to achieve heat dissipation and maximum performance.

Feature:.

• Resistance : 220 Ohm
• Power Rating : 50W @ 25°C
• Max Voltage : 200V
• Tolerance : 5%
• Temperature Coefficient : 300ppm/°C
• Fixing Points : 2
• Body Length : 50mm
• Terminal Length : 11mm
• Height : 14mm
• Width : 27mm
• Distance Between Fixing Centers : 40mm x 20mm
• Note: Picture for General Indication, Not Actual Color Code

Note:

Picture for General Indication, Not Actual Color Code If you find difficulty to select the resistor value you need, you can just simply select one value and send us message on what you need.

Package include:

• 1x 50W 220R Ohm Wirewound Aluminum Housed Resistors

• Resistance : 220 Ohm
• Power Rating : 50W @ 25°C
• Max Voltage : 200V
• Tolerance : 5%
• Temperature Coefficient : 300ppm/°C
• Fixing Points : 2
• Body Length : 50mm
• Terminal Length : 11mm
• Height : 14mm
• Width : 27mm
• Distance Between Fixing Centers : 40mm x 20mm
• Note: Picture for General Indication, Not Actual Color Code
