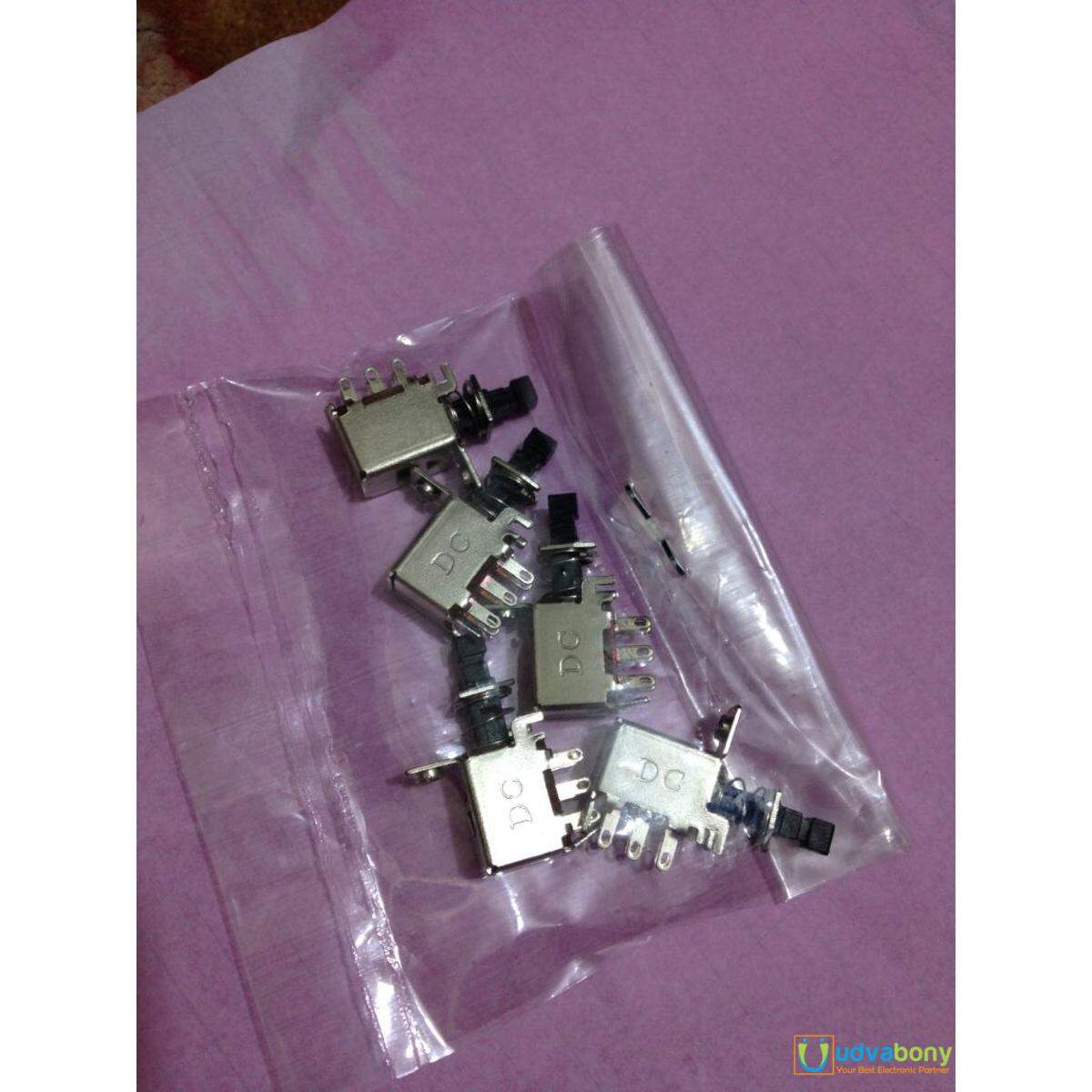

Right Angle PCB DPDT Double Pole Push Button Switch 6 Pin Self-locking -5pcs - Beige

Description: Right Angle PCB DPDT Double Pole Push Button Switch 6 Pin Self-locking Key Ignition Switch

• Latching contact, 6 pins, DIP through hole mounting.
• Used in the fields of electronic products, household appliances and more.
• High precision mechanism design offers acute operation and long service life.

Specifications:

• Material: Plastic, Metal
• Switch Operation: Latching
• Contact Configuration: DPDT
• Terminal Type: Straight Through Hole
• Pin Quantity: 6
• Each Pin Pitch: 3mm
• Position Quantity: 1
• Mounting Pillar Distance: 12mm / 0.47-inch
• Mounting Hole Distance: 19mm / 0.75-inch
• Cap Mounting Part: 6 x 3.3mm / 0.24-inch x 0.13-inch(L*W)
• Overall Size: 25 x 26 x 14mm / 0.98-inch x 1.02-inch x 0.55-inch(L*W*H)

Package Contents:

• 1 x Right Angle PCB DPDT Double Pole Push Button Switch 6 Pin Self-locking Key Ignition Switch-5pcs
