Description: UV Purple LED 5mm Water Clear Lens

Need some really bright LEDs? We are big fans of these 5mm clearUV / PurpleLEDs. These emit UV ‘blacklight’ in the UVA spectrum so they are great for projects with fluorescent materials referred to as UV/blacklight-reactive or ‘glow-in-the dark’. They are bright (350mcd) and have about a 20-degree LED beam. They go easily into a breadboard and come in a pack of ten so you can easily add that extra UV zing to your project.

Specifications:

• Shapes: Round
• Emitting color: Ultra Voilet(UV) LED
• Dominant Wavelength:390-395nm
• Lens colors: water clear
• Life Rating : 100,000 Hours
• IV: 300-400MCD
• Color: purple
• Material: PC+ metal
• Beam angle: 20 degrees
• Forward Voltage: 3.0-3.2V
• Forward Current: 20mA
• Leg Length: 18mm(+),17mm(-) (1-2mm tolerance should be acceptable)

Dimensions ofoneLED:

• Diameter at Base: 5mm / 0.2″
• Height of LED: 9mm / 0.35″
• Length of Pins: 29mm / 1.1″
• Weight: 0.3g

• Round UV

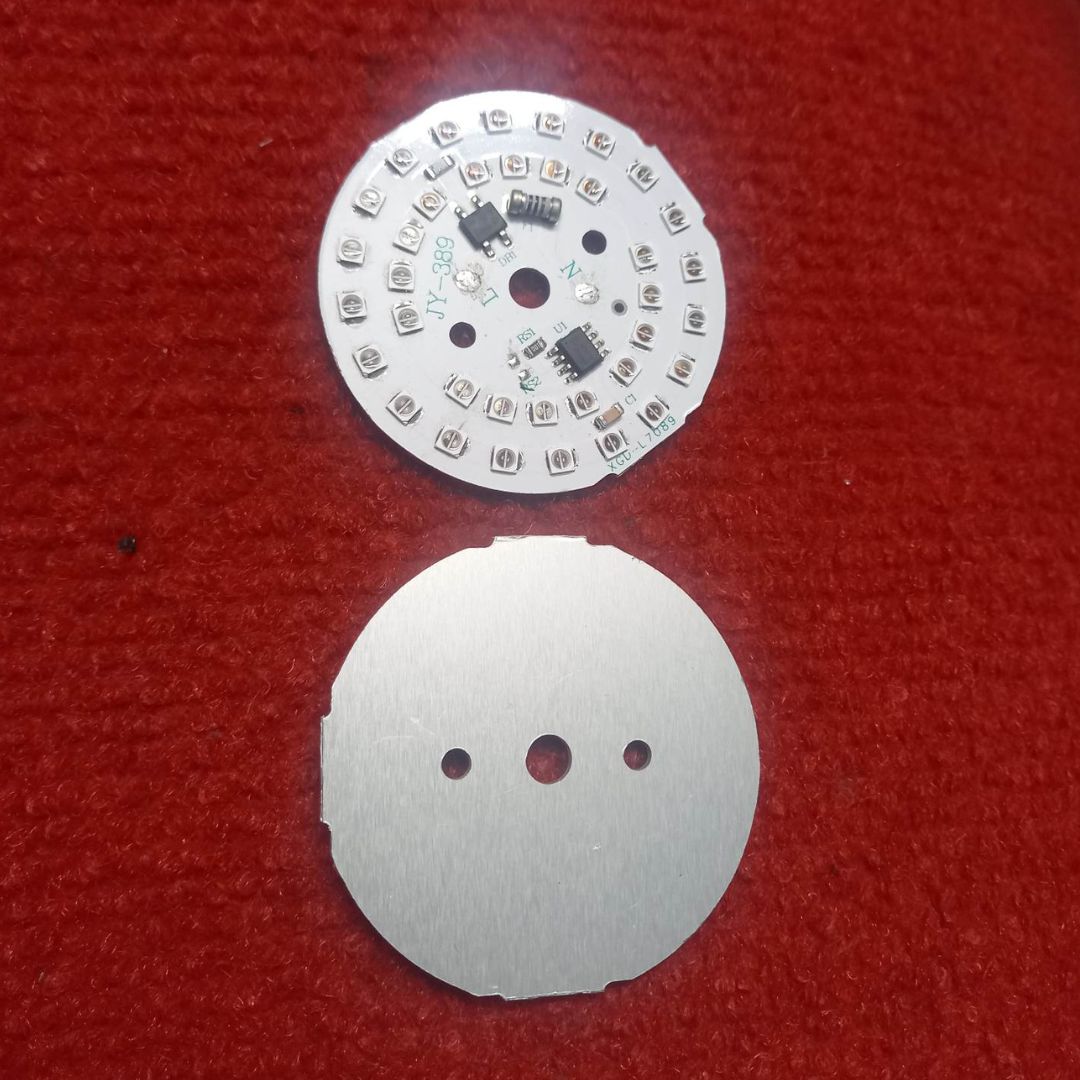

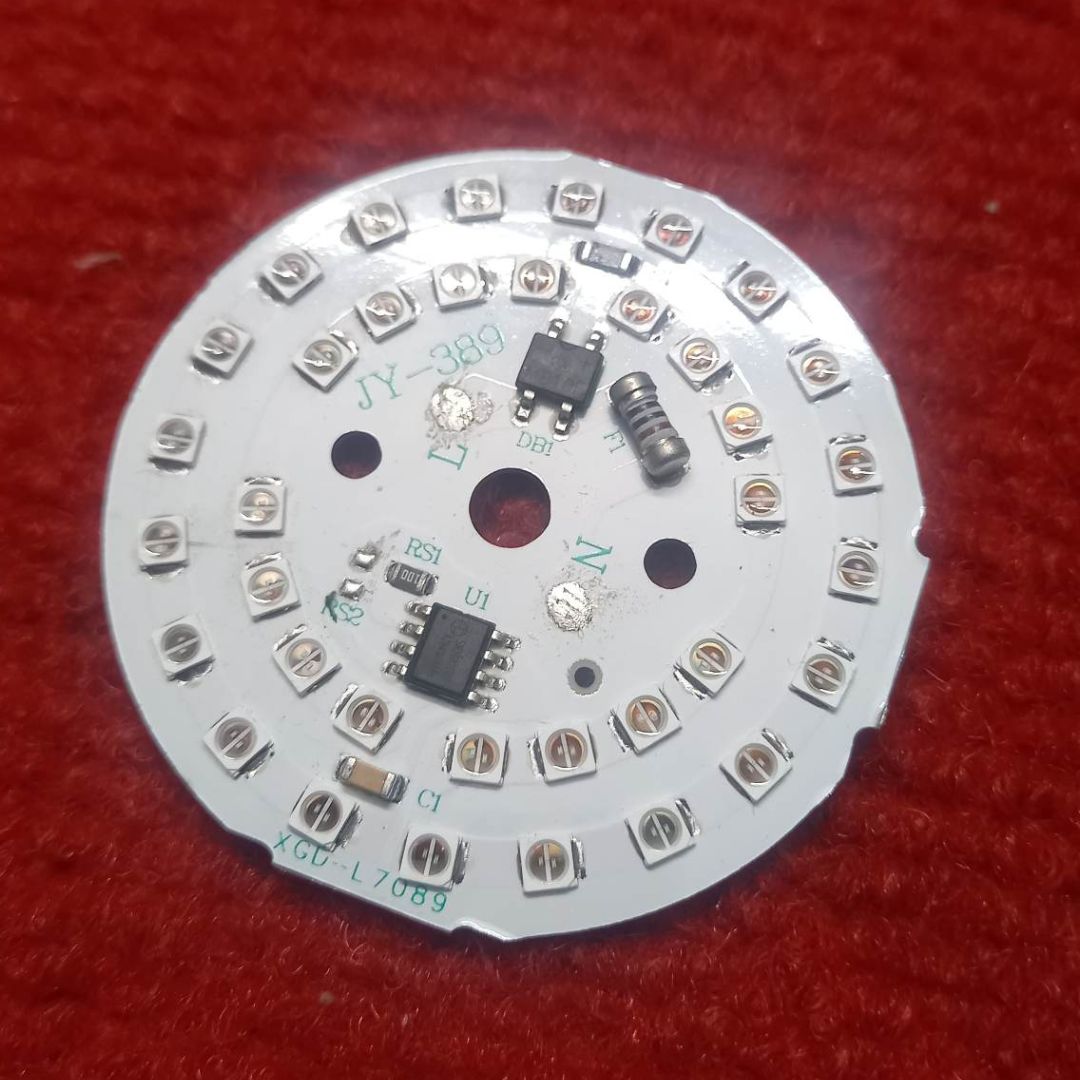

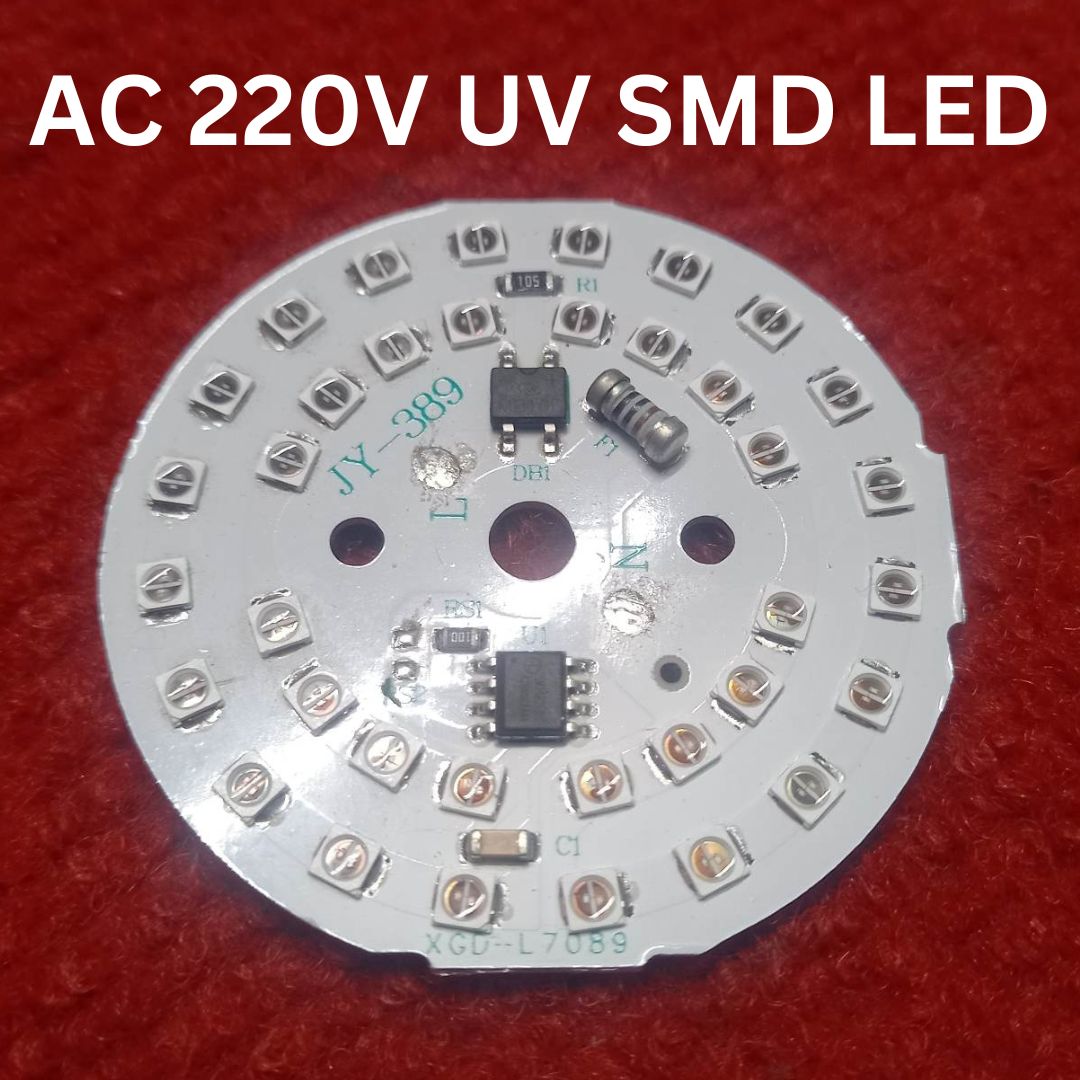

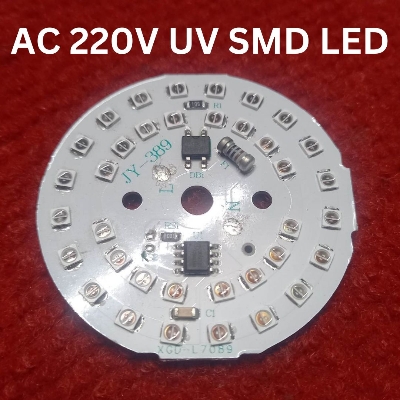

• DIRECT AC 220V SMD LED
• Ultra Bright Clear Transparent
• 20mA Purple UV LED Diode Lights Emitting Diodes LEDs Bulb For
• Electronics Science Project Light General Purpose
