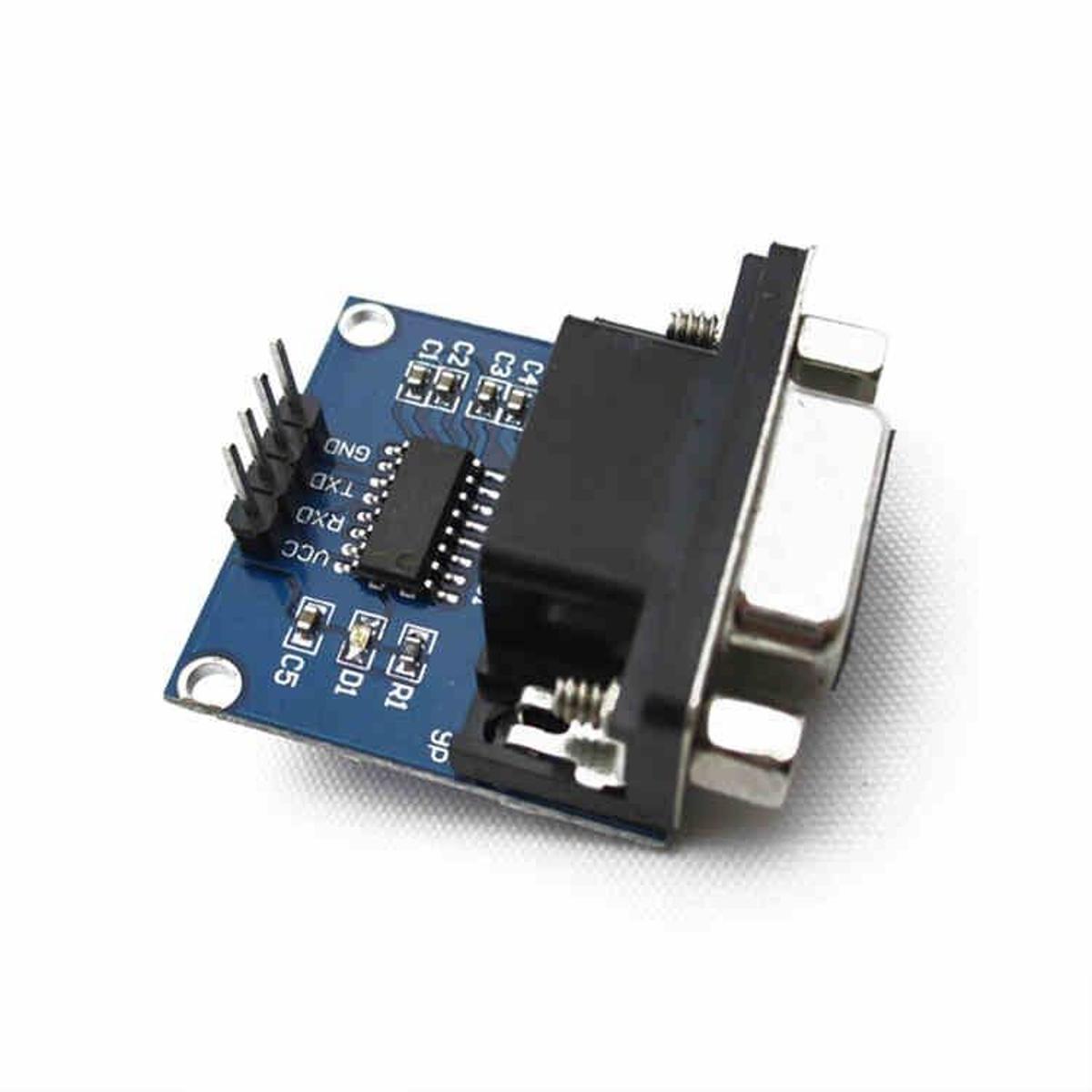

Description: Serial Port RS232 To TTL Converter Module Female DB9 COM Connector Based On MAX3232 IC

The RS232 serial port to TTL converter module is a board with the MAX3232 transceiver integrated circuit (IC), which facilitates serial communication between TTL and RS232 ports by providing the necessary electrical signal conversion. These boards usually have a female DB9 connector soldered at one end, and four header pins with jumper cables at the other end. The jumper cables enable the user to connect the wires to a breadboard or a microcontroller project board, whilst the DB9 connects directly to a COM port of a computer.

Features:

• Compact size
• Operates up to 250 kbit/s
• Low supply current 300 µA typical

Specifications:

• Operating voltage: 3.3V-5V DC
• Operating current: 6mA
• Power supply: external
• Interface: TXD, RXD, GND, VCC
• Dimensions: 33mm*32mm*14mm

Package Include:

• 1 x Serial Port RS232 To TTL Converter Module Female DB9 COM Connector Based On MAX3232 IC

• Operating voltage: 3.3V-5V DC
• Operating current: 6mA
• Power supply: external
• Interface: TXD, RXD, GND, VCC
• Dimensions: 33mm*32mm*14mm
