Description: Large Torque Futaba S3003 DC 4.8v 6v Metal Gear Servo Motor 180° Degree

A servomotor is a rotary actuator or linear actuator that allows for precise control of angular or linear position, velocity and acceleration. It consists of a suitable motor coupled to a sensor for position feedback. It also requires a relatively sophisticated controller, often a dedicated module designed specifically for use with servomotors.

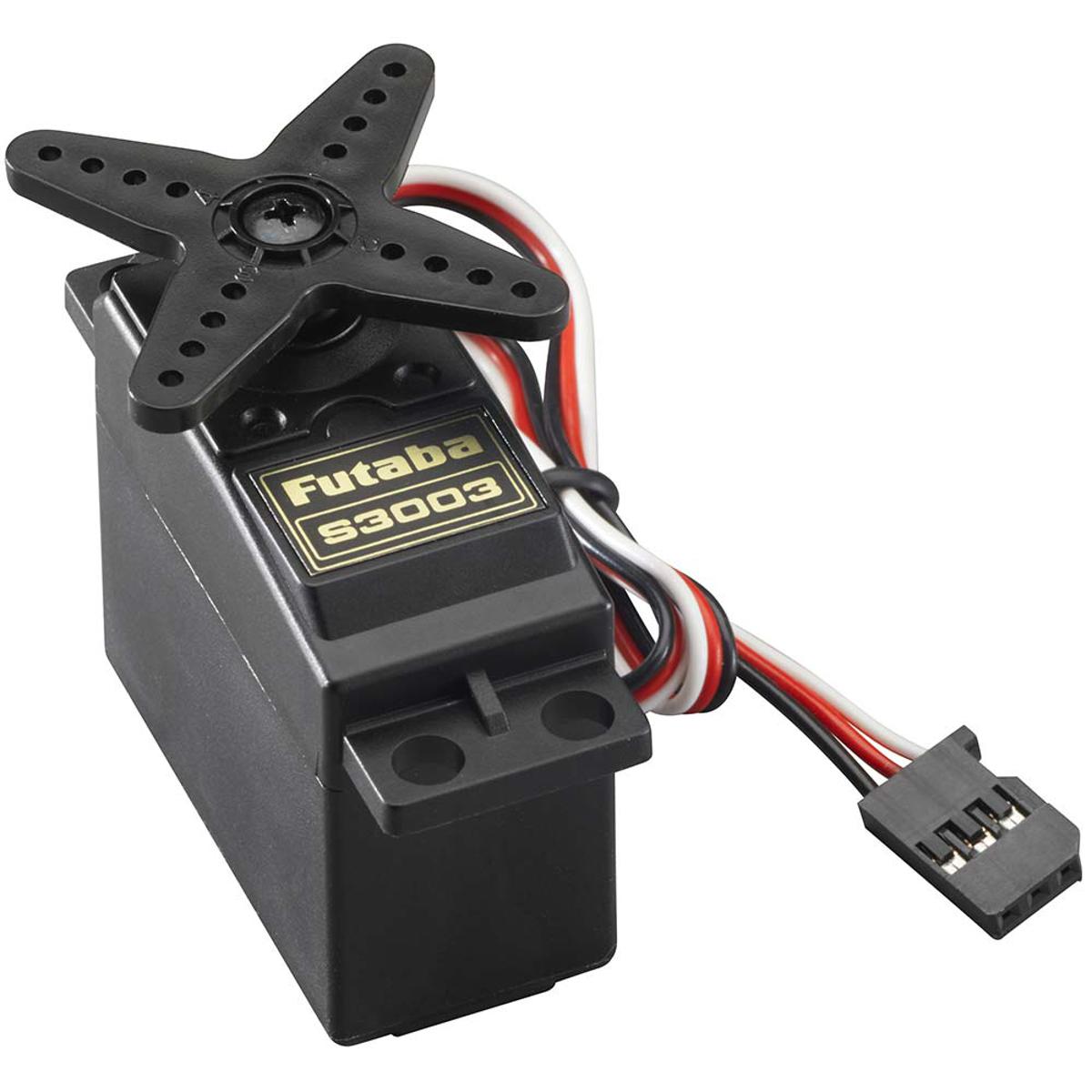

This is the Futaba S3003 Standard Servo. This basic servo is used in cars, boats, or where standard servos are used. This is the replacement for the following servos, S138,S148,S22,S38 and S12. This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps.

Features:

• Model: Futaba S3003
• Control System: +Pulse Width Control 1520usec Neutral
• Required Pulse: 3-5 Volt Peak to Peak Square Wave
• Operating Voltage: 4.8-6.0 Volts
• Operating Temperature Range: -20 to +60 Degree C
• Operating Speed (4.8V): 0.23sec/60 degrees at no load
• Operating Speed (6.0V): 0.19sec/60 degrees at no load
• Stall Torque (4.8V): 44 oz/in. (3.2kg.cm)
• Stall Torque (6.0V): 56.8 oz/in. (4.1kg.cm)
• Operating Angle: 45 Deg. one side pulse traveling 400usec
• Continuous Rotation Modifiable: Yes
• Direction: Counter Clockwise/Pulse Traveling 1520-1900usec
• Current Drain (4.8V): 7.2mA/idle
• Current Drain (6.0V): 8mA/idle
• Motor Type: 3 Pole Ferrite
• Potentiometer Drive: Indirect Drive
• Bearing Type: Plastic Bearing
• Gear Type: All Nylon Gears
• Rotation angle: 180 degrees (90 degrees left and right)
• Connector Wire Length: 12″
• Dimensions: 1.6″ x 0.8″x 1.4″ (41 x 20 x 36mm)
• Weight: 1.3oz. (37.2g)

Application:

• Model: Futaba S3003
• Control System: +Pulse Width Control 1520usec Neutral
• Required Pulse: 3-5 Volt Peak to Peak Square Wave
• Operating Voltage: 4.8-6.0 Volts
• Operating Temperature Range: -20 to +60 Degree C
• Operating Speed (4.8V): 0.23sec/60 degrees at no load
• Operating Speed (6.0V): 0.19sec/60 degrees at no load
• Stall Torque (4.8V): 44 oz/in. (3.2kg.cm)
• Stall Torque (6.0V): 56.8 oz/in. (4.1kg.cm)
• Operating Angle: 45 Deg. one side pulse traveling 400usec
• Continuous Rotation Modifiable: Yes
• Direction: Counter Clockwise/Pulse Traveling 1520-1900usec
• Current Drain (4.8V): 7.2mA/idle
• Current Drain (6.0V): 8mA/idle
• Motor Type: 3 Pole Ferrite
• Potentiometer Drive: Indirect Drive
• Bearing Type: Plastic Bearing
• Gear Type: All Nylon Gears
• Rotation angle: 180 degrees (90 degrees left and right)
• Connector Wire Length: 12″
• Dimensions: 1.6″ x 0.8″x 1.4″ (41 x 20 x 36mm)
• Weight: 1.3oz. (37.2g)
