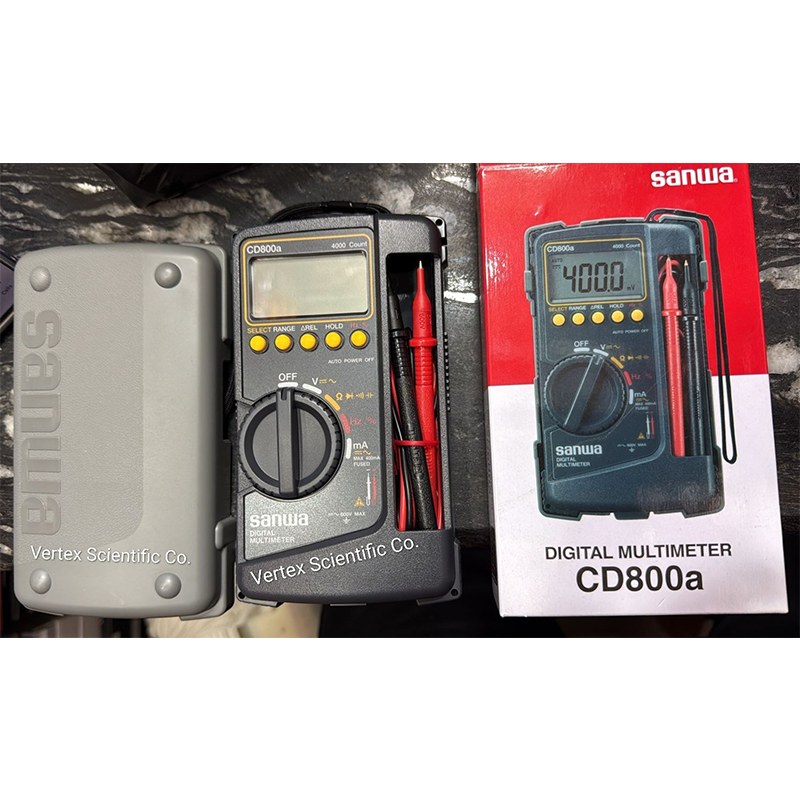

Sanwa CD800a Digital Multimeter-Multicolor

Sanwa CD800A Digital Multimeter is an auto-ranging multimeter will tests AC and DC voltage and current as well as capacitance, resistance, and frequency. It features a large, easily readable display for use in the field. It has all of the basic functions that you expect from a good digital multimeter including continuity check (with buzzer), diode test, and data hold.

Features:

3-3 / 4 digits 4000 count

0.7% best accuracy

Capacitance measurement (Not suitable for measurement of condensers with large leakage current)

Frequency measurement (AC sine wave only)

Data hold / Range hold

Auto power off (30min.) (cancelable)

AC frequency bandwidth: 40〜400Hz

Specification:

Function Measuring Range Resolution Input Impedance

DC Volt 400m/4/40/400/600V 0.1mv DC:10M-100MΩAC:10M-11MΩ

AC Volt 4/40/400/600V 0.001v

DC Ampere 40m/400mA 0.01mA

AC Ampere 40m/400mA 0.01mA

Resistance 400/4K/40K/400K/4M/40MΩ 0.1Ω

Capacitance 50n/500n/5μ/50μ/100μF 0.01nF

Frequency 5HZ-100KHZ

Duty Cycle 20%-80%

Continuity Buzzer sounds at between 10Ω and120Ω. Open Voltage: Approx.0.4V

Diode Test Open voltage: Approx. 1.5V

Bandwidth 40-400HZ (sine)

Size/Weight H176*W104*D46mm/340g

Origin: Japan, Made in China.
