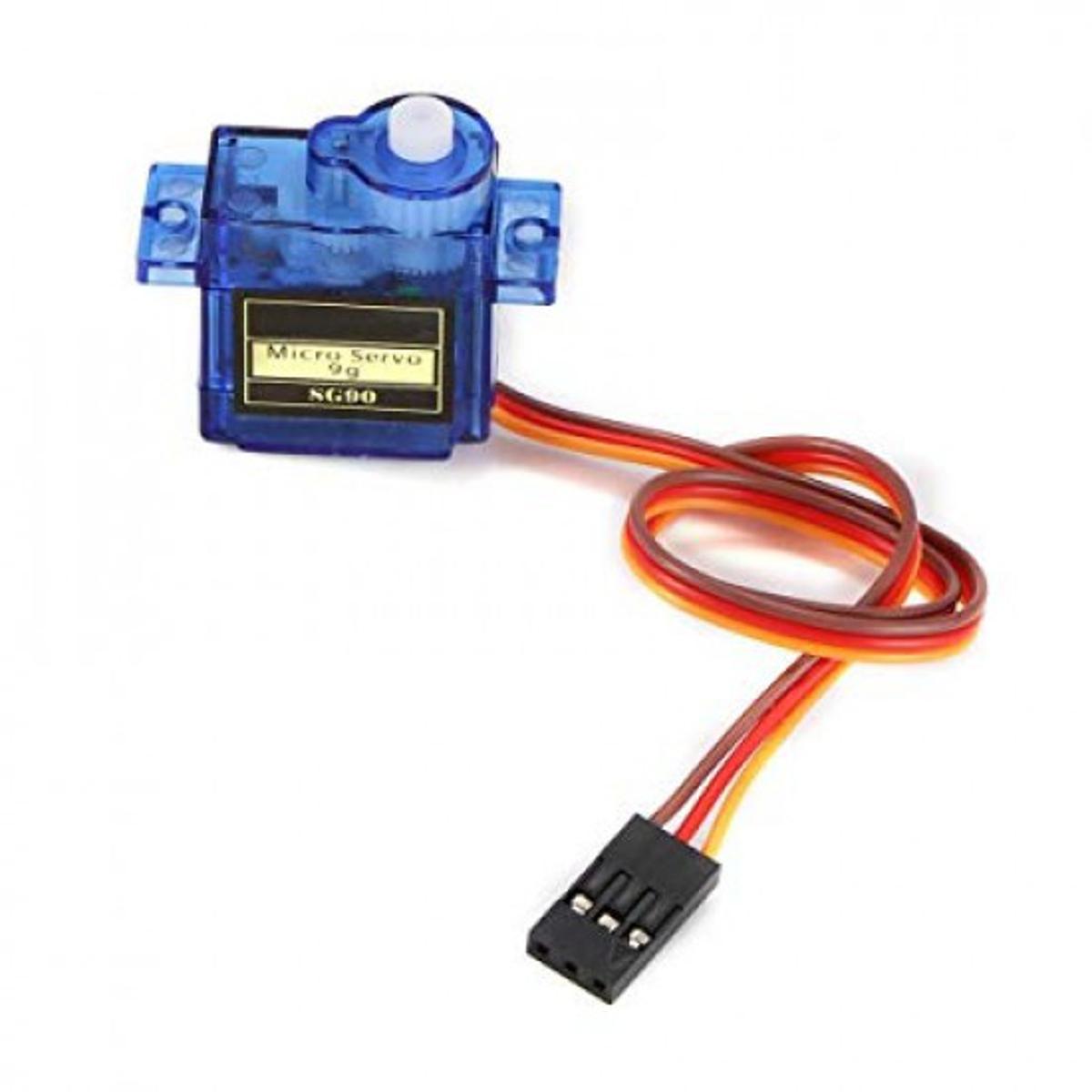

Description: SG90 Micro Servo-1.5 kg /0.3sec 9g

The item is a simple and practical 9g micro servo. Each 9g servo is equipped with 3 different servo arms and 3 mounting screws, and compatible with most standard receiver connector: Futaba, Hitec, Sanwa, GWS, Airtronics Aashai etc. Therefore, the 9g micro servo is ideal for R/C helicopter, plane, car, boat or trucks use.

Specifications:

• Brand: Tower Pro.
• Model: SG90.
• Type: 9g servo *1.
• Dimension: 23*12.2*29mm.
• Stall torque: 1.5kg/cm.
• Operating speed: 0.3sec/60 degree (4.8V).
• Operating voltage: 4.2-6V.
• Temperature range: 0℃－55℃.
• Dead band width: 10usec.
• Accessories Included: servo arms and screws.

Motor Pinout:

• Brown cable: Negative
• Red cable: Positive
• Orange cable: Signal wire

Package Include:

1 x SG90 Micro Servo-1.5 kg /0.3sec 9g

• Brand: Tower Pro.
• Model: SG90.
• Operating voltage: 4.2-6V.
• Accessories Included: servo arms and screws.
