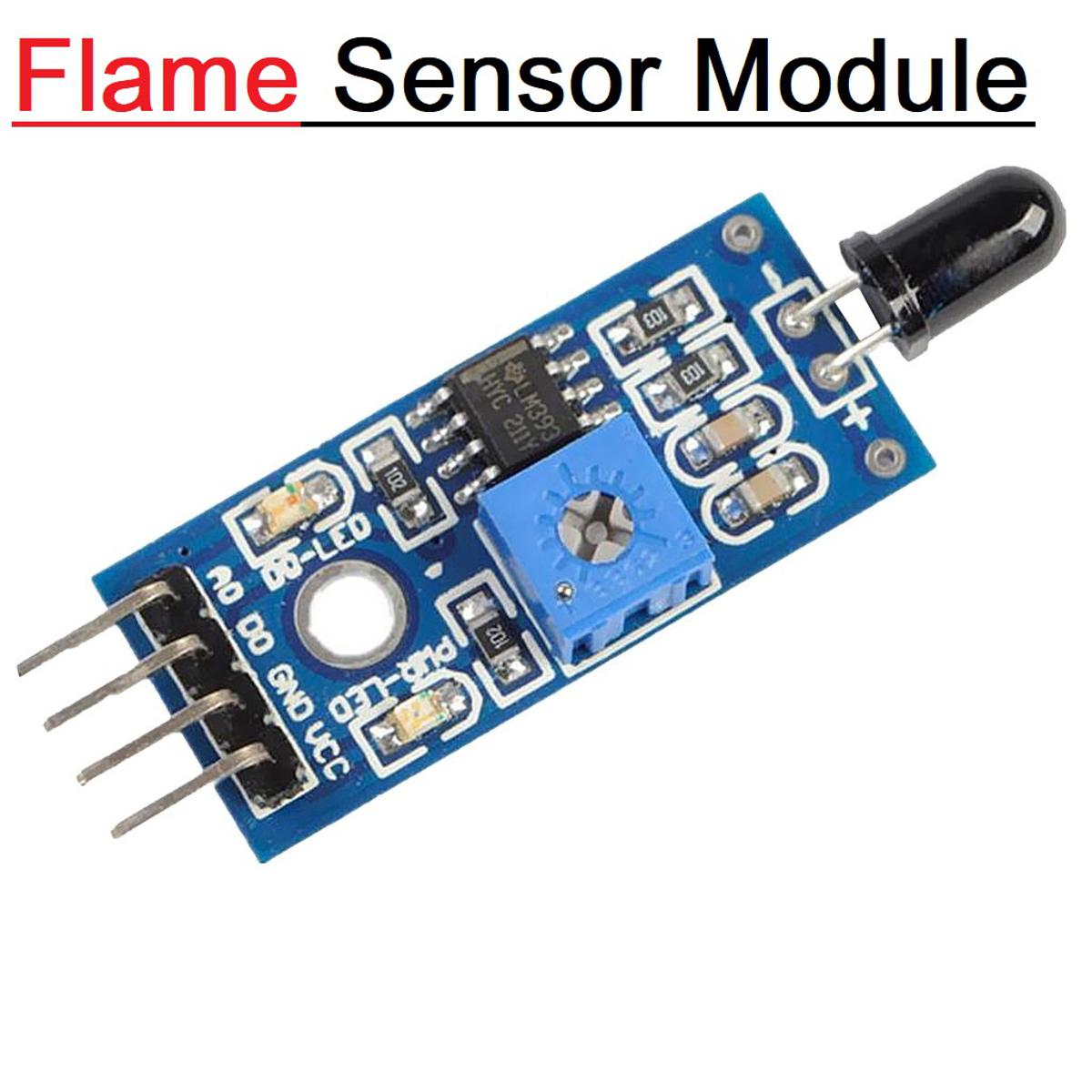

Description: Flame Sensor For Fire Detection Module IR Infrared 4 Wire Flame Detection Sensor Module IR Flame Sensor Module Detector Smart Sense

Flame Detection Sensor Module issensitive to the flame, but also can detect ordinary light. Usually used as a flame alarm. Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm. Detection point of about 60 degrees, particularly sensitive to the flame spectrum.

This Flame Sensor Module is used to detect fire/flame source or other light sources of the wave length in the range of 760nm – 1100 nm. It is based on the YG1006 sensor which is a high speed and high sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation. Sensor can be a great addition in a fire fighting robot, it can be used as a robot eyes to find the fire source. When the sensor detects flame the Signal LED will light up and the D0 pin goes LOW.

Features:

• Extremely sensitive to wavelength between 760-1100nm
• Power supply indicator lamp
• Comparator output indicator lamp
• AO,real-time thermistor voltage signal output
• DO, high / low electric level signal output
• Analog quantity output
• Threshold rollover electric level output
• Threshold adjusted by potentiometer
• Detection Angle Range: About 60 degrees
• Power Supply: 3.3-5.5 V DC

Specification:

• Working Voltage: 3.3v – 5v
• Detect Range: 60 degrees
• On-board LM393 chip
• Dimension: 3.2cm x 1.4cm

Package Includes:

• 1 x Flame Sensor For Fire Detection ModuleIR Infrared 4 Wire Flame Detection Sensor Module IR Flame Sensor Module Detector Smart Sense For Arduin

• Extremely sensitive to wavelength between 760-1100nm
• Power supply indicator lamp
• Comparator output indicator lamp
• AO,real-time thermistor voltage signal output
• DO, high / low electric level signal output
• Analog quantity output
• Threshold rollover electric level output
• Threshold adjusted by potentiometer
• Detection Angle Range: About 60 degrees
• Power Supply: 3.3-5.5 V DC
