Description: Auto Cut Circuit DC 12V Double Relay For DC 12v Battery Protection Circuit

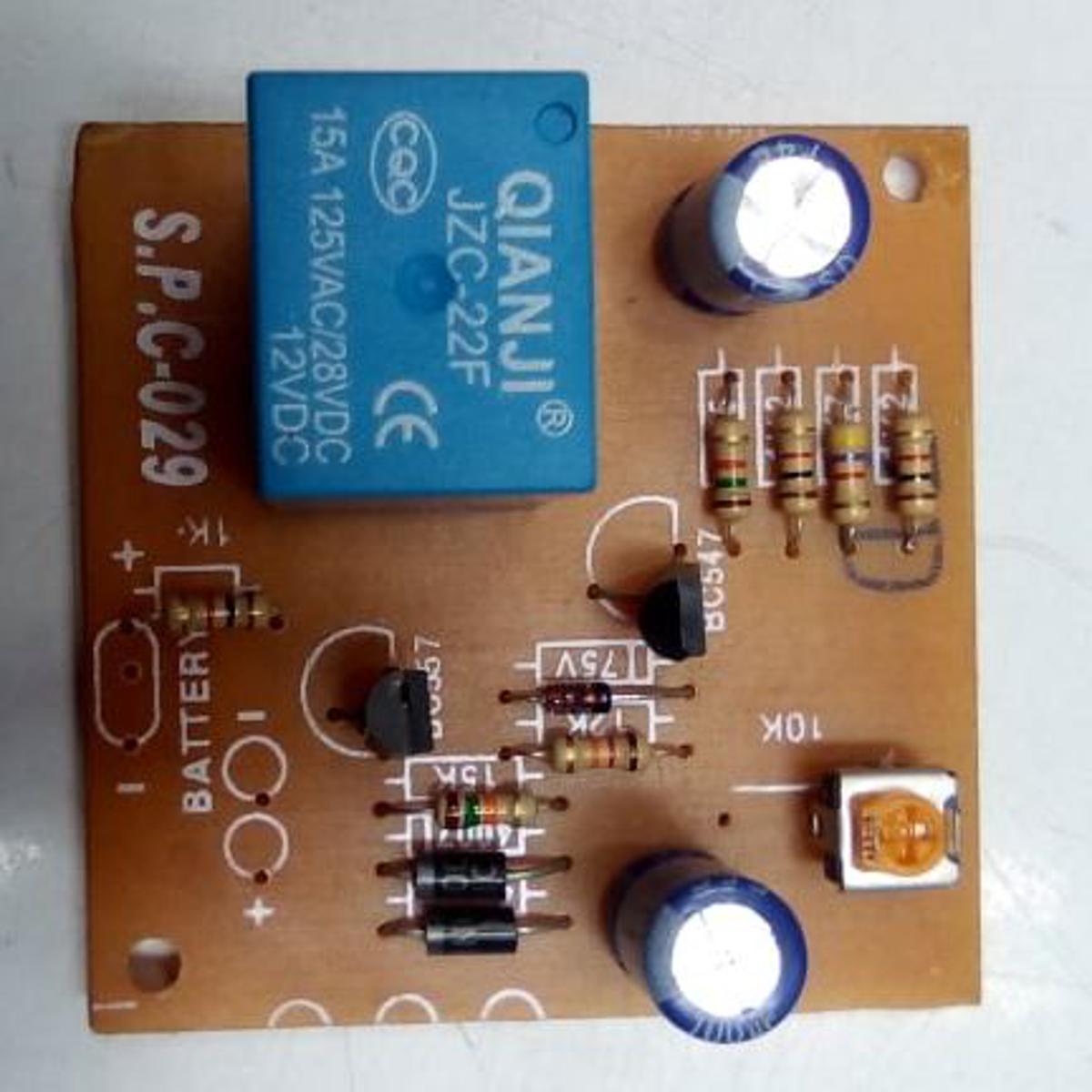

SINGLE Relay 12V Auto Cut Circuit TOP Quality DC-12V DC12V Single Relay Autocut Circuit VR Adjustable Switches Circuit For DC 12V Battery Protection DIY

Some off charger maybe can’t stop charging when the battery is fully charged. Here is a simple circuit for the charger when the battery is fully charged, the charging automatically stopping,

Features:

Battery Charger Circuit Suitable For 12V Battery.

High output current of about 5 Amp Maximum.

Automatic charging voltage and current according to the battery status.

Battery Type Support Lead Acid, Gel Battery, Tubular Battery, Lithium Ion, Lifepo4, etc.

Charge Battery 7AH To 18AH

Battery Cut-Off Adjustable.

Very Low Current Consumption Only 1.5ma.

Short circuit protection.

Charging method – constant voltage and constant current CONTROL

Origin: Bangladesh

Single Relay Use

• Working Voltage: 12v
• Use For Stabilizer ,IPS,UPS,Battery Charger .
• Local Board
• #remote control switch
