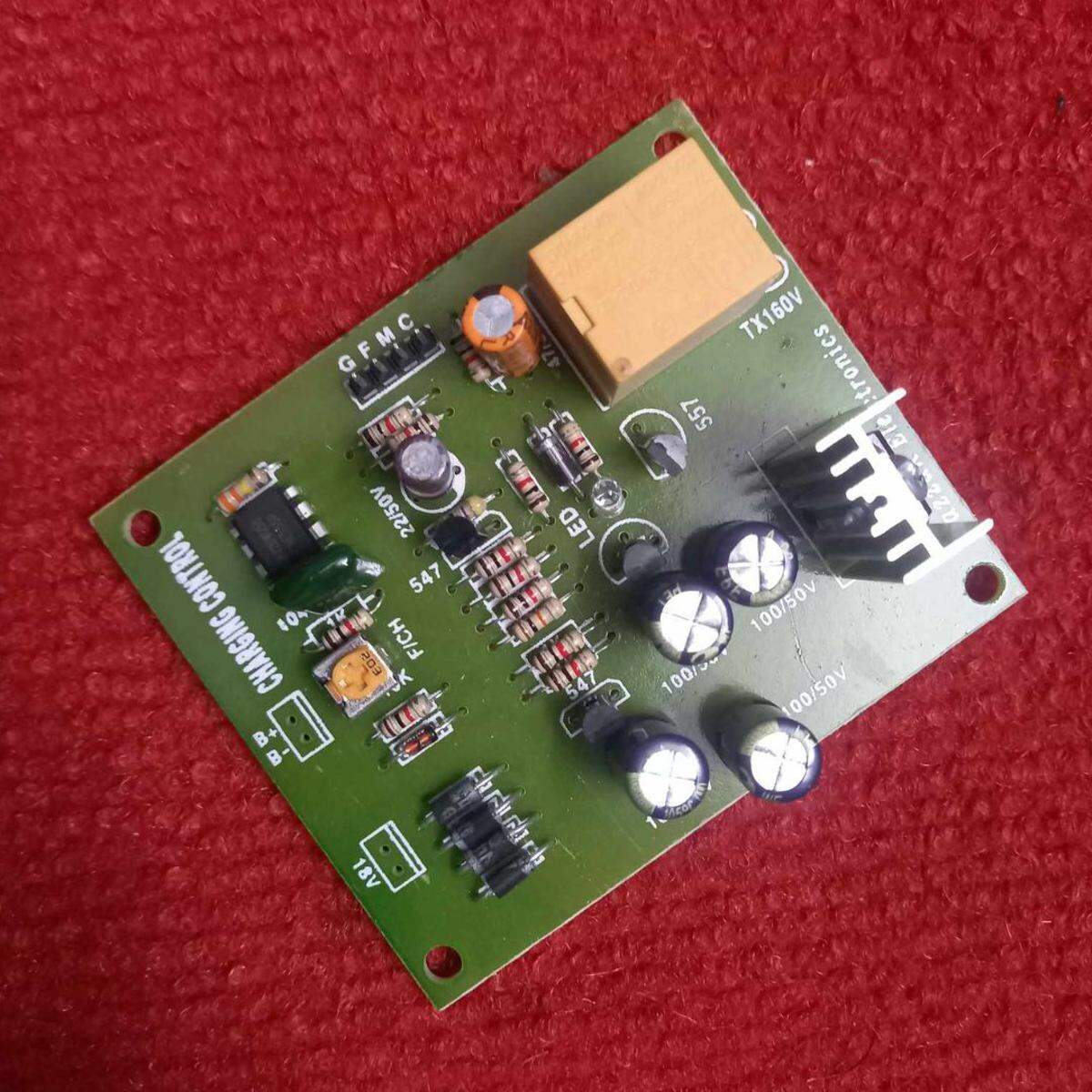

SINGLE Relay 18V Battery Charging Control Circuit Install With Adjustable VR Pot Switch Battery Charging Protection

Description: SINGLE Relay 18V Battery Charging Control Circuit

SINGLE Relay 18V Battery Charging Control Circuit Install With Adjustable VR Pot Switch Battery Charging Protection

Some off charger maybe can’t stop charging when the battery is fully charged. Here is a simple circuit for the charger when the battery is fully charged, the charging automatically stopping,

Features:

• Battery Charger Circuit Suitable For 18V Battery.
• High output current of about 5 Amp Maximum.
• Automatic charging voltage and current according to the battery status.
• Battery Type Support Lead Acid, Gel Battery, Tubular Battery, Lithium Ion, Lifepo4, etc.
• Charge Battery 170-200mAh
• Battery Cut-Off Adjustable.
• Very Low Current Consumption Only 1.5ma.
• Short circuit protection.
• Charging method – constant voltage and constant current CONTROL
• Origin: Bangladesh
