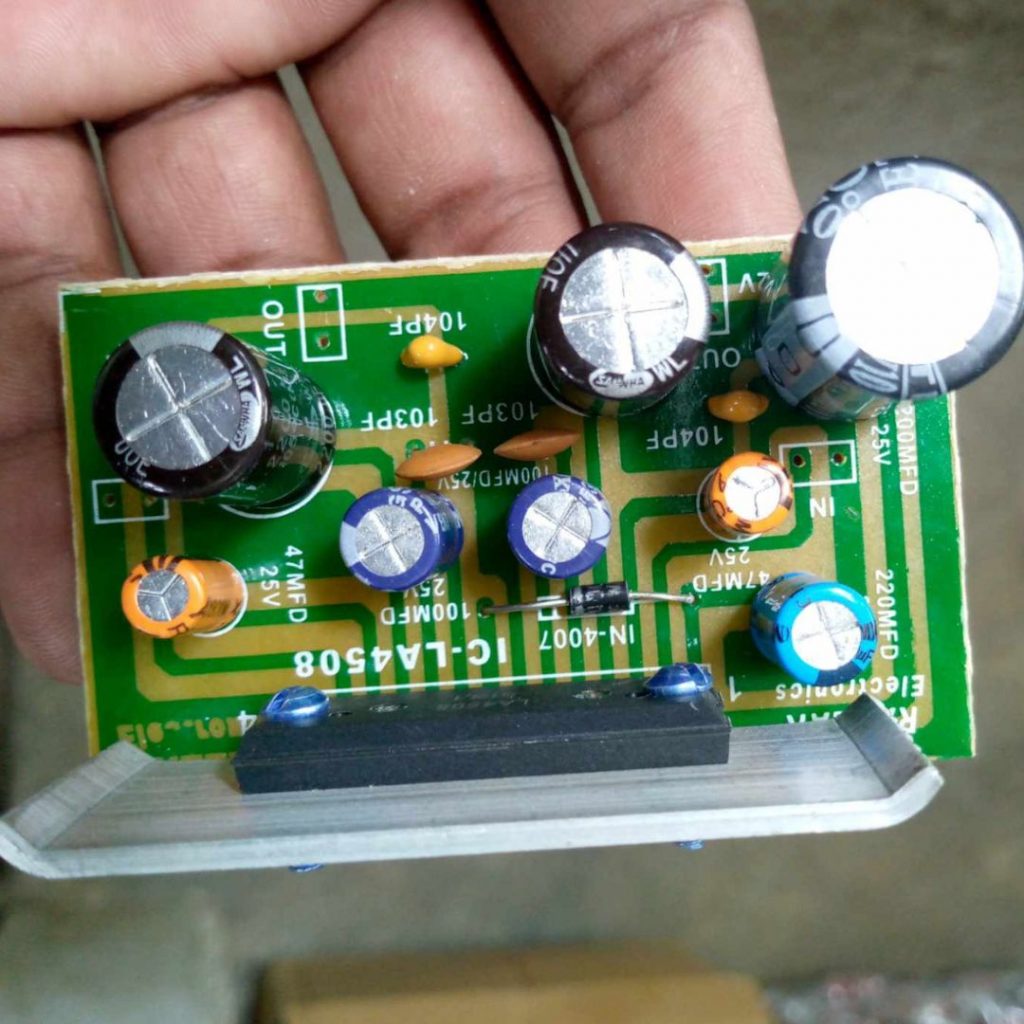

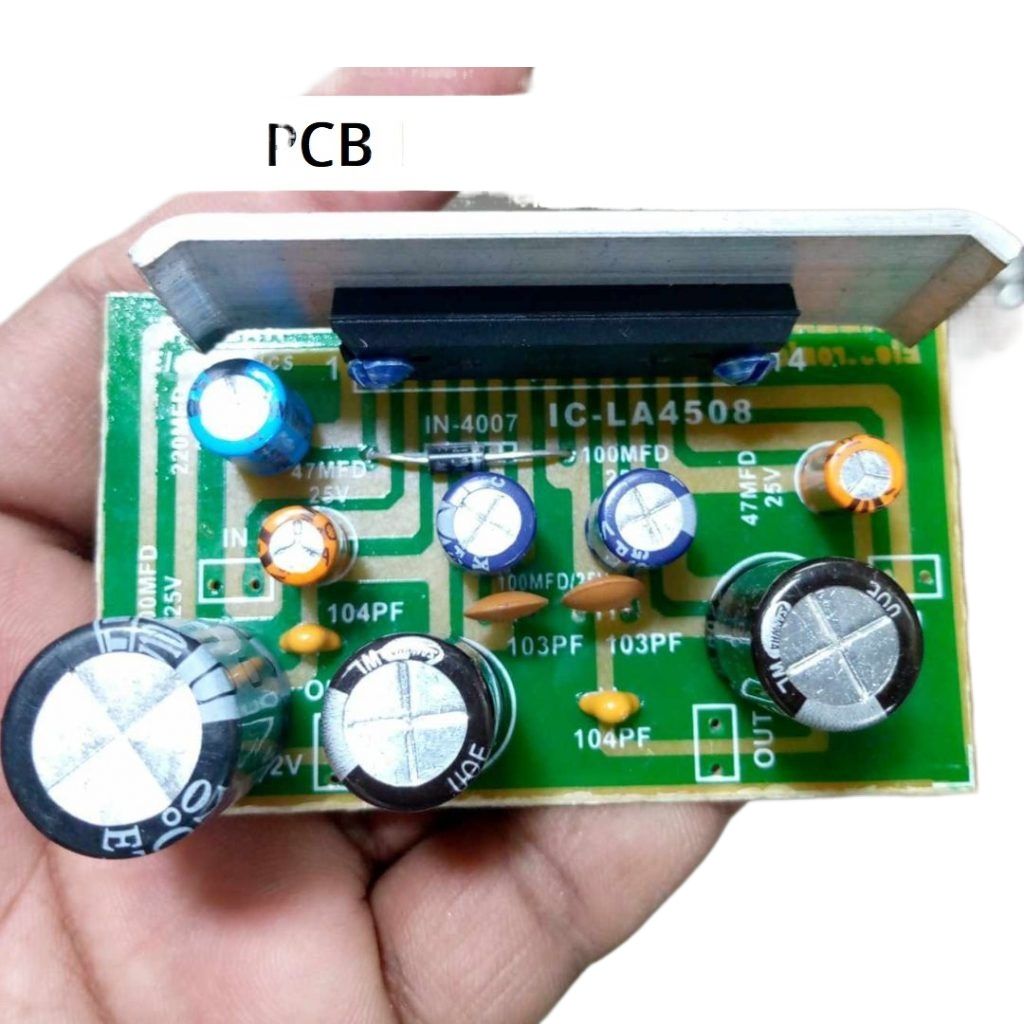

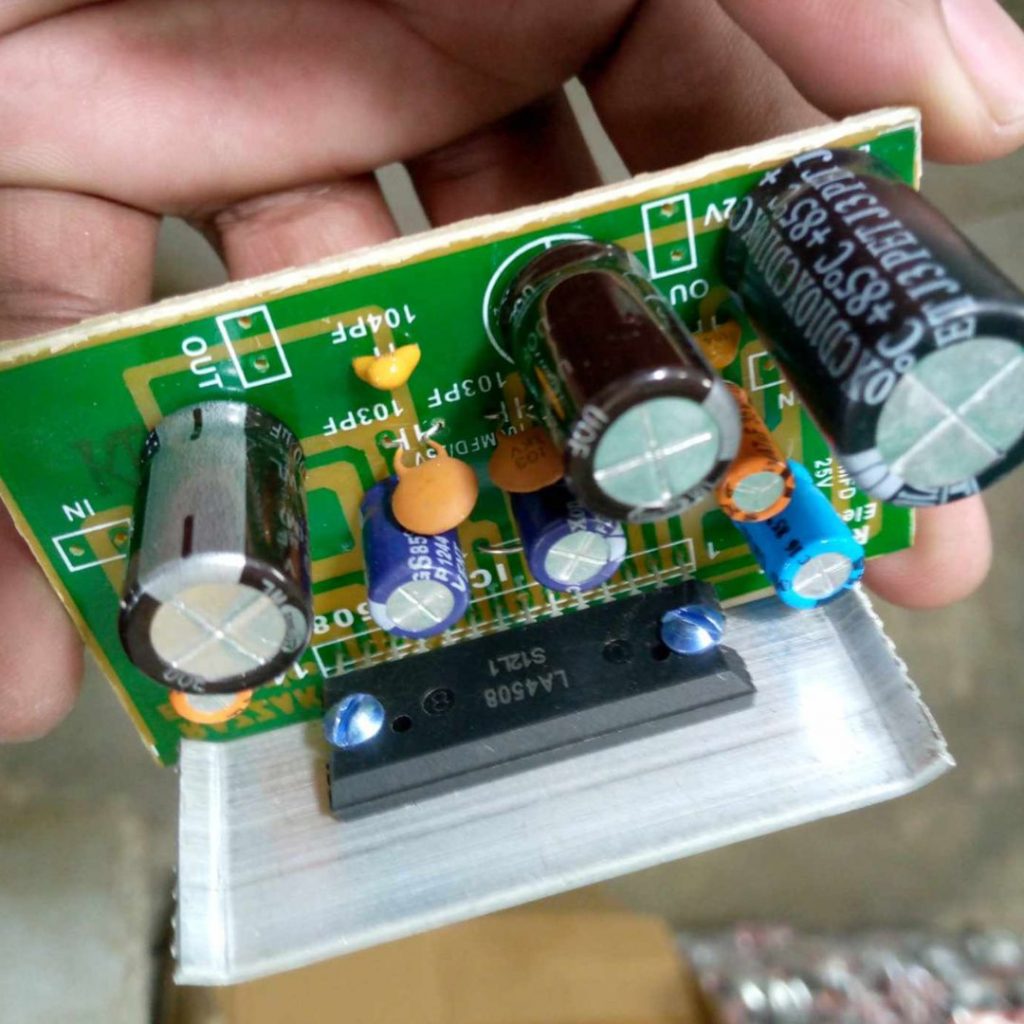

Description: INDIAN PCB LA4508 Amplifier Circuit Board

INDIAN PCB LA4508 Amplifier Circuit Board 8W Speaker LA4508 Amplifier Board Mono Amplifiers Power 9-12V LA4508 Subwoofer Audio Amplifier Circuit

Specification:

• Product Name: LA4508 Audio Power Amplifier
• Product Category: Comparators and Amplifiers
• Sub Category : Audio Amplifier
• IC Number of Pins: 14
• Supply Voltage Range: 9 – 12V
• Brand: Local

Features:

• Minimum number of external parts required.
• Small pop noise at the time of power supply ON/OFF and good starting balance.
• Good ripple rejection : 46dB (typ.)
• Good channel separation.
• Small residual noise (Rg=0).
• Low distortion over a wide range from low frequencies to high frequencies.
• Easy to design radiator fin.
• Built-in audio muting function..
• Thermal protector
• Over-voltage, surge voltage protector
• Pin-to-pin short protector

• Product Name: LA4508 Audio Power Amplifier
• Product Category:  Comparators and Amplifiers
• Sub Category : Audio Amplifier
• IC Number of Pins: 14
• Supply Voltage Range: 9 – 12V
• Brand: Local
