Description: Small Hall Effect Sensor Module

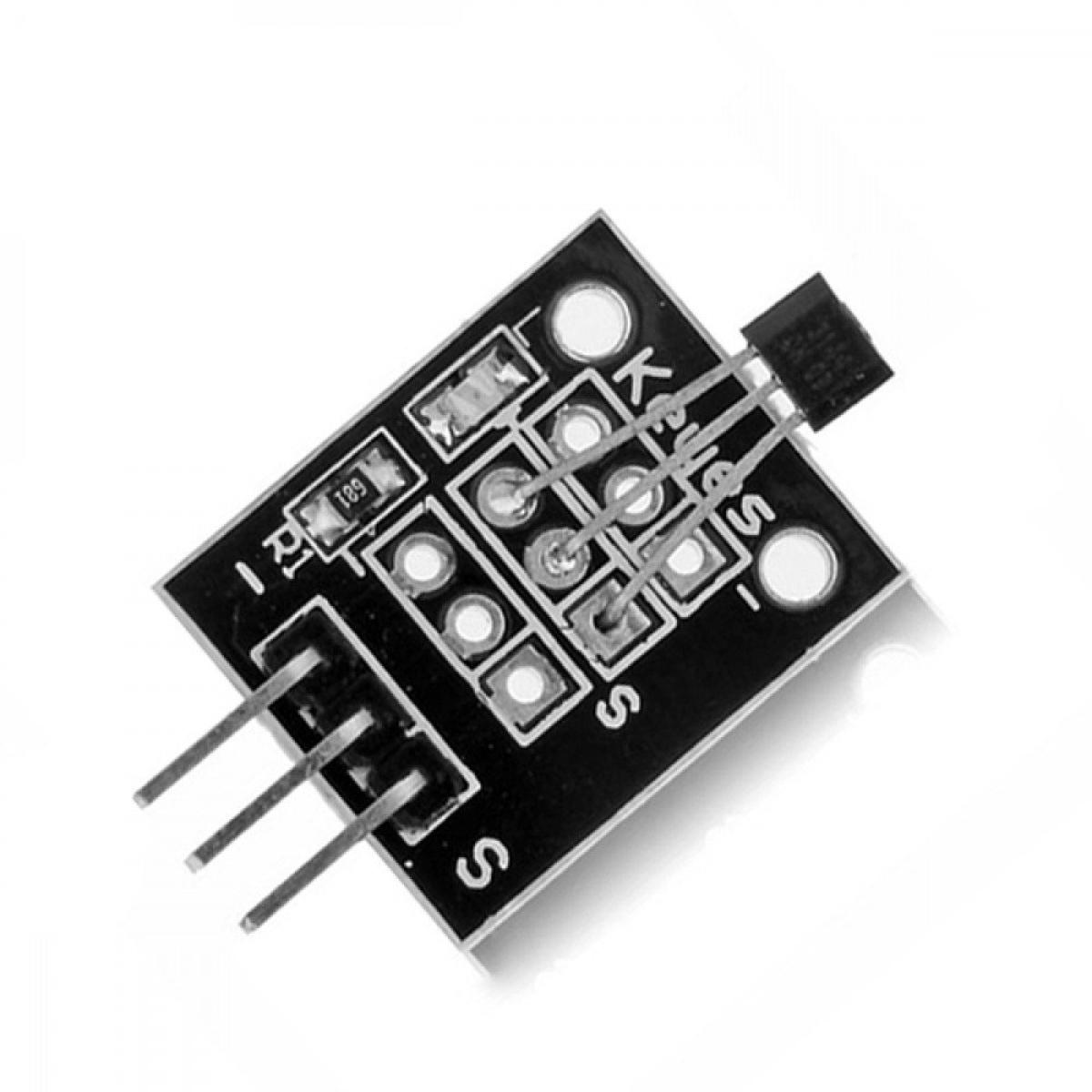

Small PCB Hall Effect Sensor Module A3144E 49E 3 Pin Hall Sensor Hall Effect Detection Magnetic Switches Speed Counting Sensor Module For Arduino 3 Pin Leads
This module can be used to detect the presence of an magnetic field. If there is an magnetic field present, it will report a high level signal. It can be used in many applications such as RPM sensor (for counting the number of shaft revolutions), Robot speed and distance measurements, door switch and robot arm position sensor. Generally, it can be used for any magnetic field detection.

This Hall Sensor Module used Hall Sensor A3144E. The Hall Sensor measures the Hall Effect, which is a production of a voltage difference across an electrical conductor, transverse to an electric current in the conductor as well as a magnetic field perpendicular to the current. The output of the Hall sensor switches low and turns on when a magnetic field perpendicular to the Hall sensor exceeds the BOP threshold, and it switches high and turn on when the magnetic field disappears. And the comparator circuit that make the output signal more reliability.

Features:
S49E hall sensor
Adjustable sensitivity (potentiometer)
Signal output indicator
Analog / Digital output
Small size, 32x14mm
Mounting screw hole of 3mm
You can use a DC power supply 3-5.5v
Real-time output signal of the Hall
After the adoption of the comparator output signal more stable finishing
The comparator output capability 16mA
Power indicator
The comparator output indicator light
Control distance is measured: less 1CM
Specifications:
Volt: 2.3V ~ 5.3V
Dimension: 27.0mm * 15.5mm
Mounting holes size: 2.0mm
Applications:
Motor shaft speed measurement (shaft encoder)
Object position detection
How to Use:
In the case of working with Arduino / microntroller /Raspberry:

VCC ↔ 2.3V ~ 5.3V
GND ↔ power supply ground
AOUT (analog sensor output) ↔ Arduino/ MCU input
DOUT (digital sensor output) ↔ Arduino/MCU input

• S49E hall sensor
• Adjustable sensitivity (potentiometer)
• Signal output indicator
• Analog / Digital output
• Small size, 32x14mm
• Mounting screw hole of 3mm
• You can use a DC power supply 3-5.5v
• Real-time output signal of the Hall
• After the adoption of the comparator output signal more stable finishing
• The comparator output capability 16mA
• Power indicator
