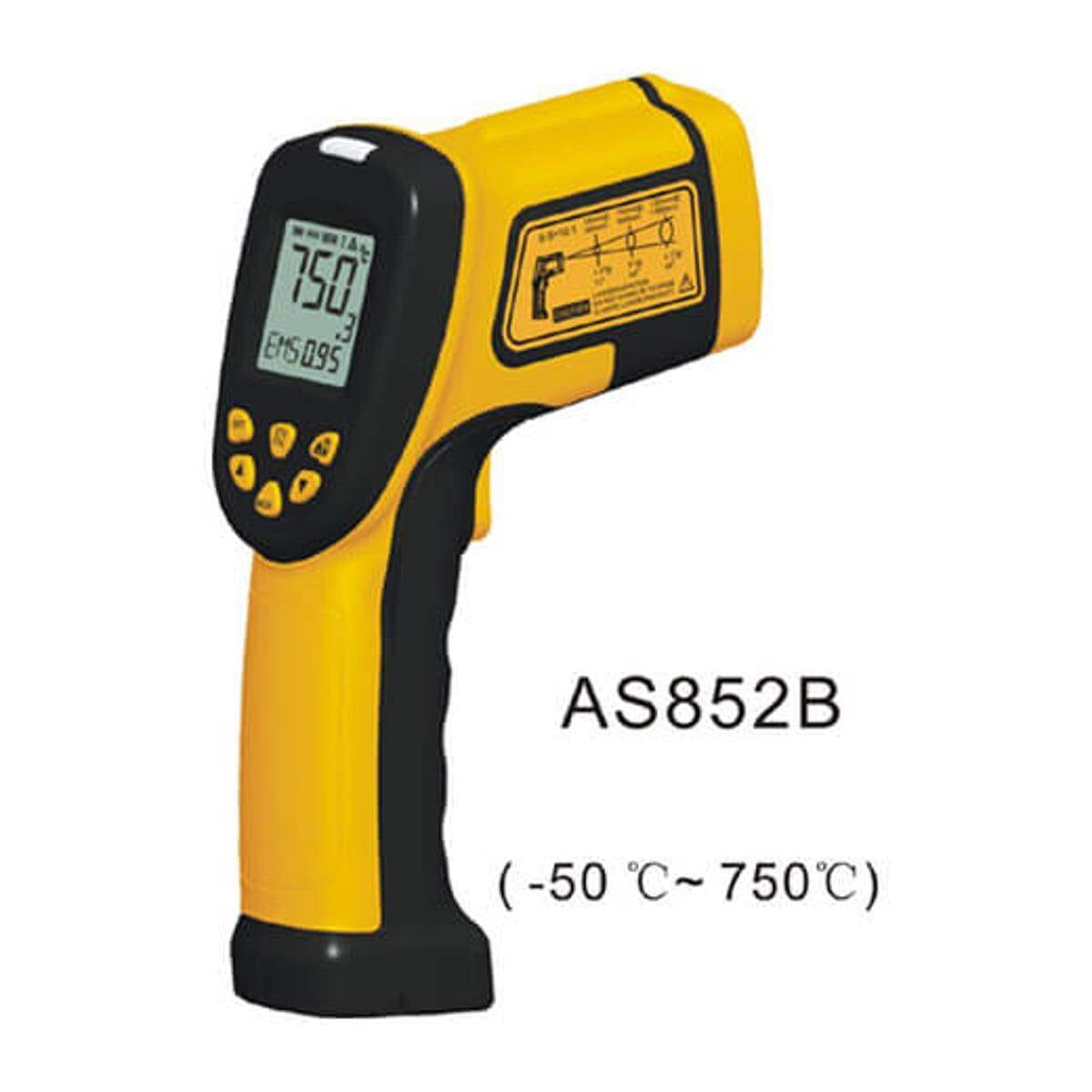

Smart Sensor Infrared Thermometer AS-852B Range

FEATURES

The most basic design consists of a lens to focus the infrared (IR) energy on to a detector, which converts the energy to an electrical signal that can be displayed in units of temperature after being compensated for ambient temperature variation. Infrared Thermometers allow users to measure temperature in applications where conventional sensors cannot be employed. Specifically, in cases dealing with moving objects ( i.e., rollers, moving machinery, or a conveyor belt), or where non-contact measurements are required because of contamination or hazardous reasons (such as high voltage), where distances are too great, or where the temperatures to be measured are too high for thermocouples or other contact sensors.

Manufacturer Specifications:

Features

Low temperature products based on the principle of infrared sensing and optical. Infrared thermometer can measure the surface temperature of objects from a distance. Compared with the traditional contact thermometer,It has the advantages of fast

SPECIFICATIONS

 Temperature Range -50℃~750℃(-58℉~1292℉)

 Accuracy  ±1.5%or±1.5℃

 Distance Spot Ratio12:1

 Emissivity0.10~1.00

adjustable Resolution0.1℃0.1℉（＜1000℃）

 Wavelength & Response Time(8-14)um&500ms

 Repeatability±1%or±1℃  ℃/℉

Selection√ Data Hold and Store Function√

Laser Target Pointer and Backlight Selection√

Max/Min/Avg/Difference Function√

High&Low Temperature Alarm Setup√

PACKING INFORMATION

 Power9 V DC battery

Product Net Weight 258g

 Product Size183*126*55mm

 Packing StyleGift box Standard Quantity Per Carton40PCS  Standard Carton Size

52.5*40.0*49.0cm

Standard Carton Gross Weight12.5KG
