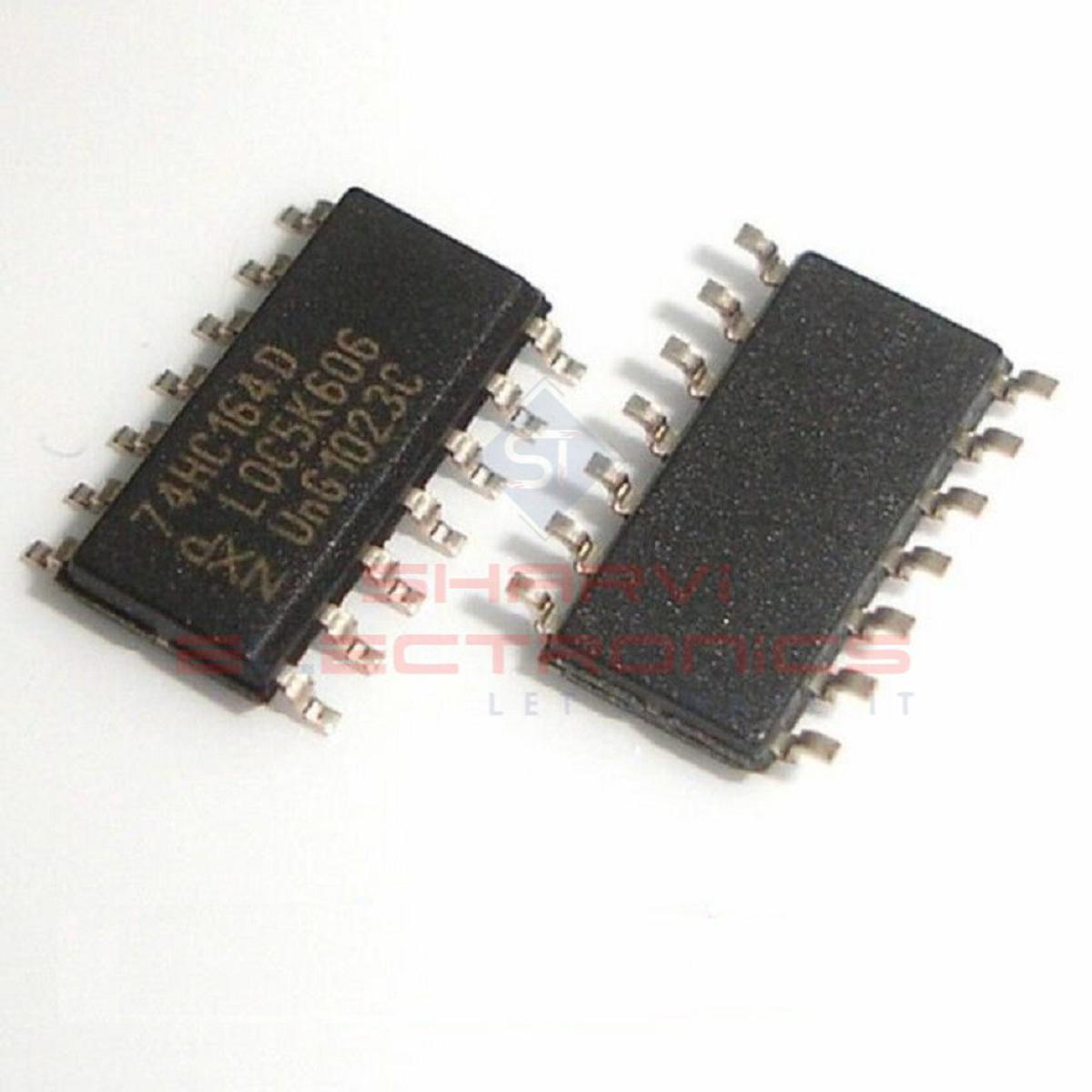

Description: 74164 74HC164D 74HC164 74LS164 Shift Resistor IC Dual In Package SMD 14 Pin IC 8 Bit

The 74HC164 is a high speed 8-Bit Serial-In Parallel-Out Shift Register. Serial data is entered through a 2-Input AND gate synchronous with the LOW to HIGH transition of the clock. The device features an asynchronous Master Reset which clears the register setting all outputs LOW independent of the clock. It utilizes the Schottky diode clamped process to achieve high speeds and is fully compatible with all ON Semiconductor TTL products.

Features:

• Typical Shift Frequency of 35 MHz
• Asynchronous Master Reset
• Gated Serial Data Input
• Fully Synchronous Data Transfers
• Input Clamp Diodes Limit High Speed Termination Effects
• ESD > 3500 Volts
• Maximum Supply Voltage:5.25V
• Operating Ambient Temperature Range:0°C-70°C

• Typical Shift Frequency of 35 MHz
• Asynchronous Master Reset
• Gated Serial Data Input
• Fully Synchronous Data Transfers
• Input Clamp Diodes Limit High Speed Termination Effects
• ESD > 3500 Volts
• Maximum Supply Voltage:5.25V
• Operating Ambient Temperature Range:0°C-70°C
