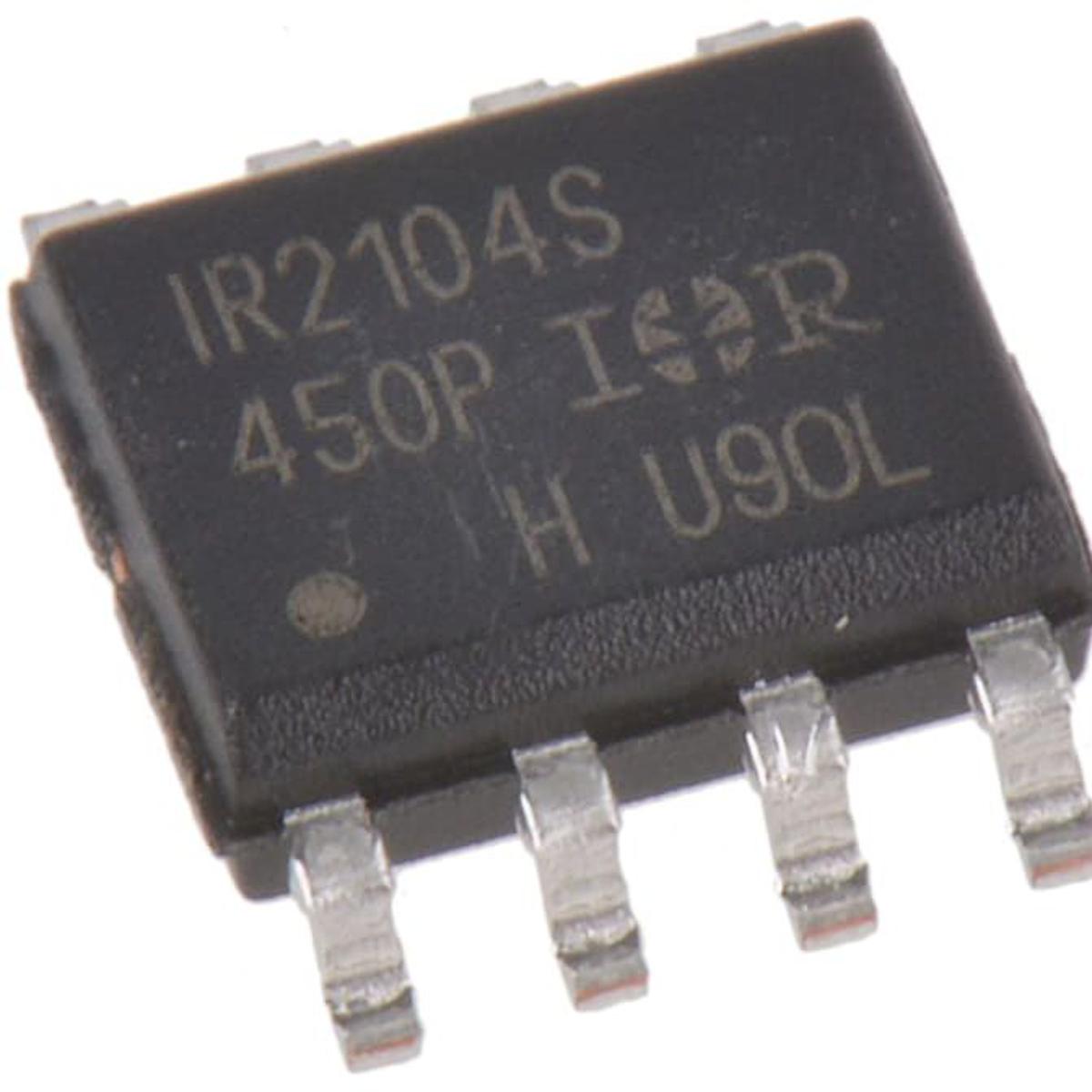

Picture of SMD IR2104 IC IR2104S IR-2104 SOP-8 8 Pin Leads
Picture of SMD IR2104 IC IR2104S IR-2104 SOP-8 8 Pin Leads

SMD IR2104 IC IR2104S IR-2104 SOP-8 8 Pin Leads

Category: Building Materials
SKU: UDBD05342
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 144
Tk 169
Tk 169
15% OFF
0 review(s)
  • Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune
  • Gate drive supply range from 10 to 20V
  • Under voltage lockout
  • 3.3V, 5V and 15V input logic compatible
  • Cross-conduction prevention logic
  • Internally set deadtime
  • High side output in phase with input
  • Shut down input turns off both channels
  • Matched propagation delay for both channels

Call For Order : 09613-800800

Description: IR2104s SMD 8 Half-Bridge Gate Driver IC

The IR2104(s) are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse cur8 Lead PDIP IR2104 8 Lead SOIC IR2104S rent buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates from 10 to 600 volts.

Features:

  • Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune
  • Gate drive supply range from 10 to 20V
  • Under voltage lockout
  • 3.3V, 5V and 15V input logic compatible
  • Cross-conduction prevention logic
  • Internally set deadtime
  • High side output in phase with input
  • Shut down input turns off both channels
  • Matched propagation delay for both channels

Benefits:

  • Floating channel designed for bootstrap operation
  • Fully operational to +600V
  • Tolerant to negative transient voltage
  • dV/dt immune
  • Gate drive supply range from 10 to 20V
  • Under voltage lockout
  • 3.3V, 5V and 15V input logic compatible
  • Cross-conduction prevention logic
  • Internally set deadtime
  • High side output in phase with input
  • Shut down input turns off both channels
  • Matched propagation delay for both channels
  • Also available LEAD-FREE

Applications:

  • Air Conditioner
  • Dishwasher
  • Dryer
  • Fan
  • Induction Cooker
  • Pump
  • Refrigeration
  • Solar
  • UPS
  • Washing Machine
  • Welding






  • Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune
  • Gate drive supply range from 10 to 20V
  • Under voltage lockout
  • 3.3V, 5V and 15V input logic compatible
  • Cross-conduction prevention logic
  • Internally set deadtime
  • High side output in phase with input
  • Shut down input turns off both channels
  • Matched propagation delay for both channels
