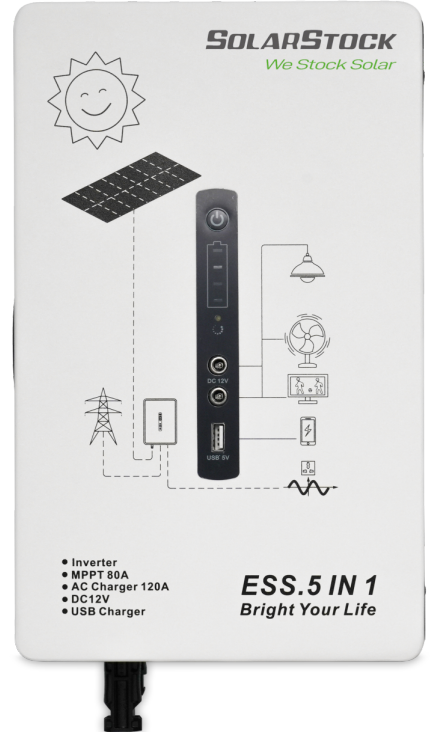

Solarstock SS-LPS500C 500W/1000Wh Pure Sine Wave Portable Lithium Energy Storage System Solar Support

SPECIFICATION

Inverter / Charger

Rated AC Output Power

500W

Output Voltage Waveform

Pure Sine Wave

Output Voltage

185~230Vac 50Hz

Low DC Warning Point

≤19%

Low DC Cut-off Voltage

3.0Vdc

Low DC Warning Return Voltage

>20%

Bulk Charging Voltage

3.6Vdc

Float Charging Voltage

3.5Vdc

AC Input

Rated Input Voltage

230Vac

Max. AC Input Voltage

300Vac

Rated Input Frequency

45~65Hz

AC Charging Power

500W Max.

Solar Input

Rated PVVoltage

30Vdc

PV Array MPPT Voltage Range

10Vdc~55Vdc

Max. PV Array Open Circuit Voltage

56Vdc

Solar Charging Power

300W Max.

Capacity

1004.8Wh

Rated Battery Voltage

3.2Vdc

Cell Capacity

314Ah

Max.Charge Current

220A

Max.Discharge Current

220A

Operation Voltage Range

3.0Vdc~3.6Vdc

Operation Temperature

-10°℃~+50℃

DC Output

DC Output Power

DC12V 60W Max.

DC Output Socket

1 pcs 5V1A USB charger, 2 pcs 12V2.5A DC Power JACK 5.5*2.1mm

Display Function

LED Indicator

4 pcs SOC indicators, 1 pcs working status indicators

Protection

Protection

Overcharge protection, Overdischarge protection, Overcurrent protection, Short circuit protection, Over temperature protection

Ambient

Working Temperature

-10°℃~+50°℃

Dimension

L*W*H (products size)

337*215*146mm
